CPU2006 license: | 13 | Test date: | Jan-2014 |
---|---|---|---|
Test sponsor: | Intel Corporation | Hardware Availability: | Aug-2013 |
Tested by: | Intel Corporation | Software Availability: | Apr-2013 |
Hardware | |
---|---|
CPU Name: | AMD A10-6700 |
CPU Characteristics: | AMD Turbo CORE technology up to 4.30 GHz |
CPU MHz: | 3700 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
CPU(s) orderable: | 1 chip |
Primary Cache: | 128 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core |
Secondary Cache: | 4 MB I+D on chip per chip, 2 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 4 GB (2 x 2 GB 1Rx8 PC3-12800U-11) |
Disk Subsystem: | 250 GB Seagate SATA HDD, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Microsoft Windows 7 Enterprise 6.1.7601 Service Pack 1 Build 7601 |
Compiler: | C/C++: Version 13.1.1.171 of Intel C++ Studio XE for Windows; Fortran: Version 13.1.1.171 of Intel Fortran Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1 |
Auto Parallel: | No |
File System: | NTFS |
System State: | Default |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap Library Version 10.0 from http://www.microquill.com/ |

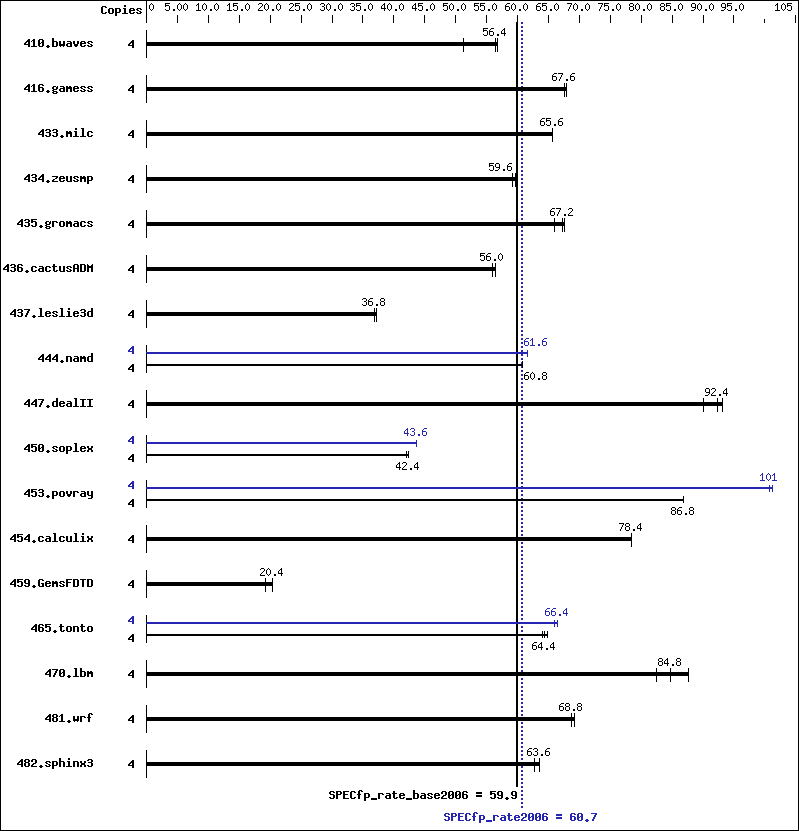

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 4 | 966 | 56.4 | 958 | 56.8 | 1060 | 51.2 | 4 | 966 | 56.4 | 958 | 56.8 | 1060 | 51.2 |
416.gamess | 4 | 1152 | 68.0 | 1159 | 67.6 | 1159 | 67.6 | 4 | 1152 | 68.0 | 1159 | 67.6 | 1159 | 67.6 |
433.milc | 4 | 559 | 65.6 | 559 | 65.6 | 559 | 65.6 | 4 | 559 | 65.6 | 559 | 65.6 | 559 | 65.6 |
434.zeusmp | 4 | 613 | 59.2 | 611 | 59.6 | 611 | 59.6 | 4 | 613 | 59.2 | 611 | 59.6 | 611 | 59.6 |
435.gromacs | 4 | 424 | 67.2 | 432 | 66.0 | 422 | 67.6 | 4 | 424 | 67.2 | 432 | 66.0 | 422 | 67.6 |
436.cactusADM | 4 | 851 | 56.0 | 848 | 56.4 | 852 | 56.0 | 4 | 851 | 56.0 | 848 | 56.4 | 852 | 56.0 |
437.leslie3d | 4 | 1017 | 36.8 | 1008 | 37.2 | 1021 | 36.8 | 4 | 1017 | 36.8 | 1008 | 37.2 | 1021 | 36.8 |
444.namd | 4 | 528 | 60.8 | 528 | 60.8 | 528 | 60.8 | 4 | 522 | 61.6 | 522 | 61.6 | 521 | 61.6 |
447.dealII | 4 | 491 | 93.2 | 496 | 92.4 | 508 | 90.0 | 4 | 491 | 93.2 | 496 | 92.4 | 508 | 90.0 |
450.soplex | 4 | 792 | 42.0 | 790 | 42.4 | 790 | 42.4 | 4 | 767 | 43.6 | 766 | 43.6 | 767 | 43.6 |
453.povray | 4 | 245 | 86.8 | 245 | 86.8 | 245 | 86.8 | 4 | 210 | 101 | 211 | 101 | 212 | 101 |
454.calculix | 4 | 420 | 78.4 | 421 | 78.4 | 421 | 78.4 | 4 | 420 | 78.4 | 421 | 78.4 | 421 | 78.4 |
459.GemsFDTD | 4 | 2188 | 19.2 | 2089 | 20.4 | 2083 | 20.4 | 4 | 2188 | 19.2 | 2089 | 20.4 | 2083 | 20.4 |
465.tonto | 4 | 609 | 64.8 | 613 | 64.4 | 615 | 64.0 | 4 | 597 | 66.0 | 594 | 66.4 | 594 | 66.4 |
470.lbm | 4 | 667 | 82.4 | 628 | 87.6 | 649 | 84.8 | 4 | 667 | 82.4 | 628 | 87.6 | 649 | 84.8 |
481.wrf | 4 | 650 | 68.8 | 648 | 68.8 | 647 | 69.2 | 4 | 650 | 68.8 | 648 | 68.8 | 647 | 69.2 |
482.sphinx3 | 4 | 1228 | 63.6 | 1225 | 63.6 | 1244 | 62.8 | 4 | 1228 | 63.6 | 1225 | 63.6 | 1244 | 62.8 |
To compile these binaries, the Intel Compiler 13.1 was set up to generate 64-bit binaries with the command: "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2013 program folder)
Processes were bound to specific processors using the start command with the /affinity switch. The config file option 'submit' was used to generate the affinity mask for each process.
Sysinfo program C:\SPEC13.1/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on F2A85MPRO Sun Jan 19 16:31:04 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 7 Enterprise OS Version : 6.1.7601 Service Pack 1 Build 7601 System Manufacturer: System manufacturer System Model : System Product Name Processor(s) : 1 Processor(s) Installed. [01]: AMD64 Family 21 Model 19 Stepping 1 AuthenticAMD ~3700 Mhz BIOS Version : American Megatrends Inc. 6303, 8/13/2013 Total Physical Memory: 3,271 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 4096 L3CacheSize : 0 MaxClockSpeed : 3700 Name : AMD A10-6700 APU with Radeon(tm) HD Graphics NumberOfCores : 2 NumberOfLogicalProcessors: 4 (End of data from sysinfo program)
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply Micron MT8JTF25664AZ-1G6 Series Memory DIMMs
Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
icl -Qvc10 -Qstd=c99 |
icl -Qvc10 |
ifort |
icl -Qvc10 -Qstd=c99 ifort |
410.bwaves: | -DSPEC_CPU_P64 |
416.gamess: | -DSPEC_CPU_P64 |
433.milc: | -DSPEC_CPU_P64 |
434.zeusmp: | -DSPEC_CPU_P64 |
435.gromacs: | -DSPEC_CPU_P64 |
436.cactusADM: | -DSPEC_CPU_P64 /names:lowercase /assume:underscore |
437.leslie3d: | -DSPEC_CPU_P64 |
444.namd: | -DSPEC_CPU_P64 /TP |
447.dealII: | -DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -Qoption,cpp,--ms_incompat_treatment_of_commas_in_macros |
450.soplex: | -DSPEC_CPU_P64 |
453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_NEED_INVHYP -DNEED_INVHYP |
454.calculix: | -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER /names:lowercase |
459.GemsFDTD: | -DSPEC_CPU_P64 |
465.tonto: | -DSPEC_CPU_P64 |
470.lbm: | -DSPEC_CPU_P64 |
481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
482.sphinx3: | -DSPEC_CPU_P64 |
/arch:AVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE |
/arch:AVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
/arch:AVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F1000000000 -link /FORCE:MULTIPLE |
/arch:AVX -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 -link /FORCE:MULTIPLE |
icl -Qvc10 -Qstd=c99 |
icl -Qvc10 |
ifort |
icl -Qvc10 -Qstd=c99 ifort |
Same as Base Portability Flags
433.milc: | basepeak = yes |
470.lbm: | basepeak = yes |
482.sphinx3: | basepeak = yes |
444.namd: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
447.dealII: | basepeak = yes |
450.soplex: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
453.povray: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
410.bwaves: | basepeak = yes |
416.gamess: | basepeak = yes |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | basepeak = yes |
465.tonto: | /arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000 -link /FORCE:MULTIPLE |
435.gromacs: | basepeak = yes |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | basepeak = yes |
