SPEC® CFP2006 Result

ASUSTeK Computer Inc. (Test Sponsor: Intel Corporation)

ASUS F2A85-M PRO motherboard (AMD A4-4000 APU
with Radeon HD Graphics)

SPECfp®2006 = 22.7

SPECfp_base2006 = 22.0

CPU2006 license:	13	Test date:	Oct-2013
Test sponsor:	Intel Corporation	Hardware Availability:	May-2013
Tested by:	Intel Corporation	Software Availability:	Apr-2013

Hardware
CPU Name:	AMD A4-4000
CPU Characteristics:	AMD Turbo CORE technology up to 3.20 GHz
CPU MHz:	3000
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	64 KB I on chip per chip; 16 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	4 GB (2 x 2 GB 1Rx8 PC3-12800U-11, running at 1333 MHz and CL9)
Disk Subsystem:	250 GB Seagate SATA HDD, 7200 RPM
Other Hardware:	None

Software
Operating System:	Microsoft Windows 7 Ultimate 6.1.7601 Service Pack 1 Build 7601
Compiler:	C/C++: Version 13.1.1.171 of Intel C++ Studio XE for Windows; Fortran: Version 13.1.1.171 of Intel Fortran Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1
Auto Parallel:	Yes
File System:	NTFS
System State:	Default
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap Library Version 10.0 from http://www.microquill.com/

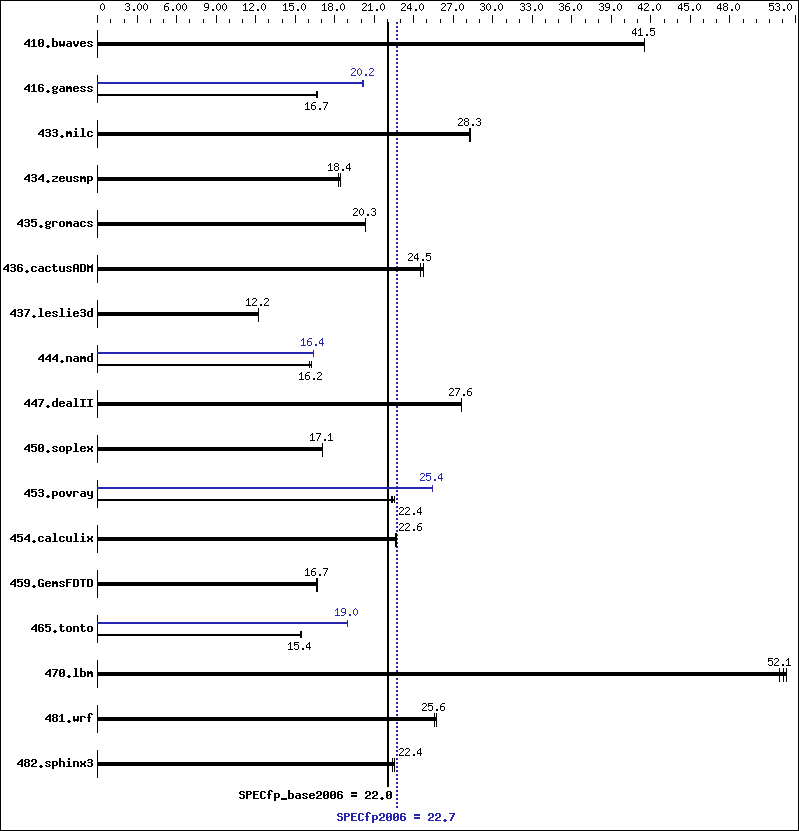

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	328	41.5	328	41.5	327	41.5	328	41.5	328	41.5	327	41.5
416.gamess	1173	16.7	1175	16.7	1183	16.6	972	20.1	971	20.2	970	20.2
433.milc	325	28.3	325	28.3	325	28.2	325	28.3	325	28.3	325	28.2
434.zeusmp	496	18.4	497	18.3	495	18.4	496	18.4	497	18.3	495	18.4
435.gromacs	351	20.3	351	20.3	351	20.3	351	20.3	351	20.3	351	20.3
436.cactusADM	488	24.5	483	24.7	488	24.5	488	24.5	483	24.7	488	24.5
437.leslie3d	769	12.2	769	12.2	770	12.2	769	12.2	769	12.2	770	12.2
444.namd	497	16.2	497	16.1	497	16.2	488	16.4	488	16.4	488	16.4
447.dealII	415	27.6	415	27.6	415	27.6	415	27.6	415	27.6	415	27.6
450.soplex	489	17.1	488	17.1	489	17.1	489	17.1	488	17.1	489	17.1
453.povray	237	22.5	238	22.4	238	22.3	210	25.4	210	25.4	209	25.4
454.calculix	365	22.6	363	22.7	365	22.6	365	22.6	363	22.7	365	22.6
459.GemsFDTD	638	16.6	635	16.7	634	16.7	638	16.6	635	16.7	634	16.7
465.tonto	637	15.4	637	15.4	635	15.5	519	19.0	518	19.0	518	19.0
470.lbm	263	52.3	264	52.1	266	51.8	263	52.3	264	52.1	266	51.8
481.wrf	436	25.6	436	25.6	435	25.7	436	25.6	436	25.6	435	25.7
482.sphinx3	869	22.4	867	22.5	869	22.4	869	22.4	867	22.5	869	22.4

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 13.1 was set up to
 generate 64-bit binaries with the command:
 "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r)
 Parallel Studio XE 2013 program folder)

Platform Notes

 Sysinfo program C:\SPEC13.1/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on Clt3085A9AEE4F6 Fri Oct  4 04:40:07 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Ultimate
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: System manufacturer
 System Model  : System Product Name
 Processor(s)  : 1 Processor(s) Installed.
      [01]: AMD64 Family 21 Model 19 Stepping 1 AuthenticAMD ~3000 Mhz
 BIOS Version  : American Megatrends Inc. 6105, 5/8/2013
 Total Physical Memory: 3,111 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 1024
 L3CacheSize   : 0
 MaxClockSpeed : 3000
 Name          : AMD A4-4000 APU with Radeon(tm) HD Graphics
 NumberOfCores : 1
 NumberOfLogicalProcessors: 2

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply
 Micron MT8JTF25664AZ-1G6 Series Memory DIMMs

General Notes

 OMP_NUM_THREADS set to number of processors cores
 KMP_AFFINITY set to granularity=fine,scatter
 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc10 -Qstd=c99 ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_P64
416.gamess:	-DSPEC_CPU_P64
433.milc:	-DSPEC_CPU_P64
434.zeusmp:	-DSPEC_CPU_P64
435.gromacs:	-DSPEC_CPU_P64
436.cactusADM:	-DSPEC_CPU_P64 -names:lowercase /assume:underscore
437.leslie3d:	-DSPEC_CPU_P64
444.namd:	-DSPEC_CPU_P64 /TP
447.dealII:	-DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -Qoption,cpp,--ms_incompat_treatment_of_commas_in_macros
450.soplex:	-DSPEC_CPU_P64
453.povray:	-DSPEC_CPU_P64 -DSPEC_CPU_NEED_INVHYP -DNEED_INVHYP
454.calculix:	-DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -names:lowercase
459.GemsFDTD:	-DSPEC_CPU_P64
465.tonto:	-DSPEC_CPU_P64
470.lbm:	-DSPEC_CPU_P64
481.wrf:	-DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:	-DSPEC_CPU_P64

Base Optimization Flags

Peak Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc10 -Qstd=c99 ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	basepeak = yes
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	/arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
447.dealII:	basepeak = yes
450.soplex:	basepeak = yes
453.povray:	/arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	/arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	/arch:AVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto -Qinline-calloc /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:	basepeak = yes
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic13.1-official-windows.20130924.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic13.1-official-windows.20130924.xml.
