CPU2006 license: | 11 | Test date: | Jun-2014 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Mar-2014 |
Tested by: | IBM Corporation | Software Availability: | Nov-2013 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2428L v2 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.30 GHz |
CPU MHz: | 1800 |
FPU: | Integrated |
CPU(s) enabled: | 16 cores, 2 chips, 8 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 20 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 192 GB (12 x 16 GB 2Rx4 PC3-12800R-11, ECC) |
Disk Subsystem: | 1 x 2 TB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) 2.6.32-431.el6.x86_64 |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

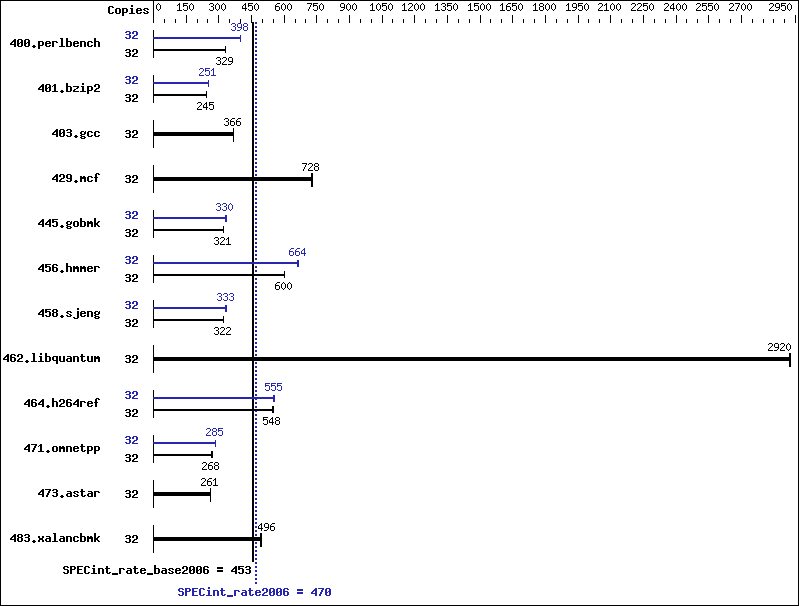

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 32 | 951 | 329 | 951 | 329 | 951 | 329 | 32 | 784 | 399 | 785 | 398 | 786 | 398 |
401.bzip2 | 32 | 1257 | 246 | 1265 | 244 | 1259 | 245 | 32 | 1231 | 251 | 1230 | 251 | 1231 | 251 |
403.gcc | 32 | 701 | 367 | 704 | 366 | 703 | 366 | 32 | 701 | 367 | 704 | 366 | 703 | 366 |
429.mcf | 32 | 401 | 729 | 401 | 728 | 401 | 728 | 32 | 401 | 729 | 401 | 728 | 401 | 728 |
445.gobmk | 32 | 1044 | 321 | 1046 | 321 | 1044 | 322 | 32 | 996 | 337 | 1018 | 330 | 1021 | 329 |
456.hmmer | 32 | 498 | 600 | 497 | 600 | 498 | 600 | 32 | 449 | 665 | 451 | 661 | 449 | 664 |
458.sjeng | 32 | 1203 | 322 | 1203 | 322 | 1205 | 321 | 32 | 1163 | 333 | 1161 | 334 | 1162 | 333 |
462.libquantum | 32 | 227 | 2920 | 227 | 2920 | 227 | 2930 | 32 | 227 | 2920 | 227 | 2920 | 227 | 2930 |
464.h264ref | 32 | 1292 | 548 | 1282 | 553 | 1293 | 548 | 32 | 1275 | 556 | 1280 | 553 | 1275 | 555 |
471.omnetpp | 32 | 747 | 268 | 743 | 269 | 746 | 268 | 32 | 703 | 284 | 702 | 285 | 702 | 285 |
473.astar | 32 | 862 | 261 | 862 | 261 | 861 | 261 | 32 | 862 | 261 | 862 | 261 | 861 | 261 |
483.xalancbmk | 32 | 445 | 496 | 447 | 494 | 445 | 497 | 32 | 445 | 496 | 447 | 494 | 445 | 497 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited" Zone reclaim mode enabled with: echo 1 > /proc/sys/vm/zone_reclaim_mode Intel Idle Driver disabled with the following Linux kernel parameter in /etc/grub.conf: intel_idle.max_cstate=0
BIOS setting: Operating Mode set to Maximum Performance Sysinfo program /home/SPECcpu-20140116-ic14.0/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on x3630M4 Thu Jun 19 01:20:21 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2428L v2 @ 1.80GHz 2 "physical id"s (chips) 32 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 16 physical 0: cores 0 1 2 3 4 5 6 7 physical 1: cores 0 1 2 3 4 5 6 7 cache size : 20480 KB From /proc/meminfo MemTotal: 198461904 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.5 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux x3630M4 2.6.32-431.el6.x86_64 #1 SMP Sun Nov 10 22:19:54 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jun 17 17:41 SPEC is set to: /home/SPECcpu-20140116-ic14.0 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_x3630m4-lv_home ext4 1.8T 11G 1.7T 1% /home Additional information from dmidecode: BIOS IBM -[BEE135VUS-1.60]- 01/14/2014 Memory: 12x Samsung M393B2G70QH0-YK0 16 GB 1600 MHz 2 rank (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/SPECcpu-20140116-ic14.0/libs/32:/home/SPECcpu-20140116-ic14.0/libs/64:/home/SPECcpu-20140116-ic14.0/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | basepeak = yes |
429.mcf: | basepeak = yes |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
