SPEC® CFP2006 Result

Intel Corporation

Intel DH67BL motherboard (Intel Core i7-2700K)

SPECfp®_rate2006 = 125

SPECfp_rate_base2006 = 123

CPU2006 license:	13	Test date:	May-2014
Test sponsor:	Intel Corporation	Hardware Availability:	Dec-2012
Tested by:	Intel Corporation	Software Availability:	Oct-2013

Hardware
CPU Name:	Intel Core i7-2700K
CPU Characteristics:	Intel Turbo Boost Technology up to 3.90 GHz
CPU MHz:	3500
FPU:	Integrated
CPU(s) enabled:	4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory:	8 GB (2 x 4 GB 2Rx4 PC3-10600U-9)
Disk Subsystem:	180 GB Intel SSD 530
Other Hardware:	None

Software
Operating System:	Microsoft Windows 8.1 Pro 6.3.9600 N/A Build 9600
Compiler:	C/C++: Version 14.0.1.139 of Intel C++ Studio XE for Windows; Fortran: Version 14.0.1.139 of Intel Fortran Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1
Auto Parallel:	No
File System:	NTFS
System State:	Default
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap Library Version 10.0 from http://www.microquill.com/

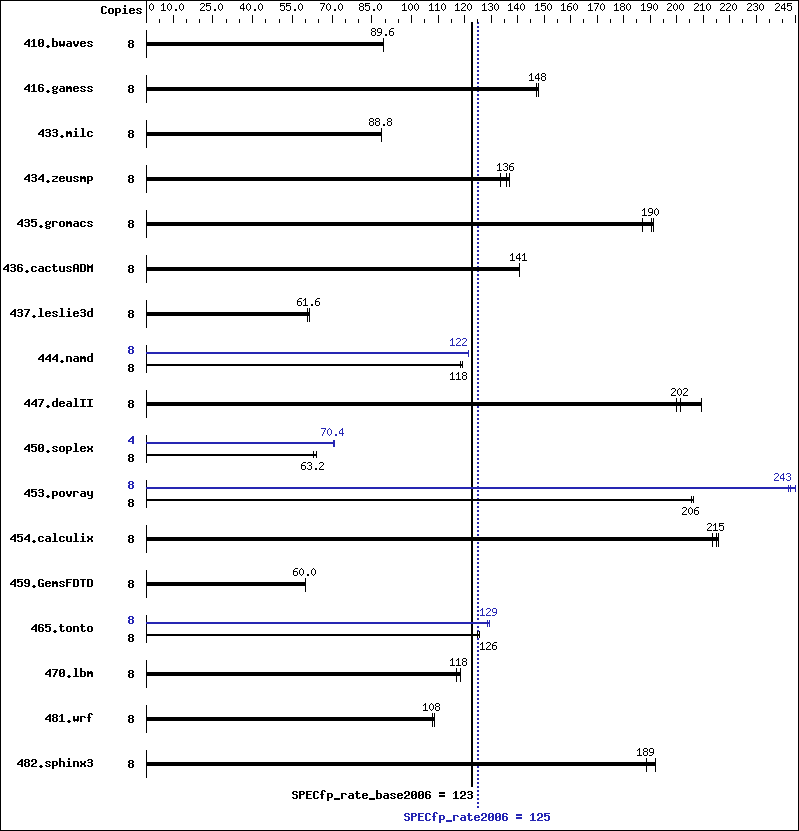

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	8	1214	89.6	1215	89.6	1212	89.6	8	1214	89.6	1215	89.6	1212	89.6
416.gamess	8	1061	148	1058	148	1063	147	8	1061	148	1058	148	1063	147
433.milc	8	827	88.8	828	88.8	826	88.8	8	827	88.8	828	88.8	826	88.8
434.zeusmp	8	533	137	546	134	537	136	8	533	137	546	134	537	136
435.gromacs	8	299	191	300	190	305	187	8	299	191	300	190	305	187
436.cactusADM	8	681	141	678	141	680	141	8	681	141	678	141	680	141
437.leslie3d	8	1223	61.6	1219	61.6	1229	60.8	8	1223	61.6	1219	61.6	1229	60.8
444.namd	8	544	118	542	118	537	119	8	528	122	526	122	528	122
447.dealII	8	453	202	437	210	457	200	8	453	202	437	210	457	200
450.soplex	8	1043	64.0	1058	63.2	1050	63.2	4	472	70.8	473	70.4	473	70.4
453.povray	8	206	206	207	206	207	206	8	174	245	175	242	175	243
454.calculix	8	309	214	307	215	305	216	8	309	214	307	215	305	216
459.GemsFDTD	8	1419	60.0	1419	60.0	1420	60.0	8	1419	60.0	1419	60.0	1420	60.0
465.tonto	8	628	126	628	126	630	125	8	610	129	609	130	613	129
470.lbm	8	927	118	939	117	927	118	8	927	118	939	117	927	118
481.wrf	8	824	109	825	108	825	108	8	824	109	825	108	825	108
482.sphinx3	8	826	189	826	189	812	192	8	826	189	826	189	812	192

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 14.0 was set up to
 generate 64-bit binaries with the command:
 "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r)
 Parallel Studio XE 2013 program folder)

Submit Notes


 Processes were bound to specific processors using the start command with the /affinity switch.
 The config file option 'submit' was used to generate the affinity mask for each process.

Platform Notes

 Sysinfo program C:\SPEC14.0/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on IVB9600 Thu May 29 15:00:59 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 8.1 Pro
 OS Version    : 6.3.9600 N/A Build 9600
 System Manufacturer: INTEL_
 System Model  : DH67BL__
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 42 Stepping 7 GenuineIntel ~3501 Mhz
 BIOS Version  : Intel Corp. BLH6710H.86A.0160.2012.1204.1156, 12/4/2012
 Total Physical Memory: 8,099 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 1024
 L3CacheSize   : 8192
 MaxClockSpeed : 3501
 Name          : Intel(R) Core(TM) i7-2700K CPU @ 3.50GHz
 NumberOfCores : 4
 NumberOfLogicalProcessors: 8

 (End of data from sysinfo program)
 BIOS: SATA mode set to RAID
 Windows Disk Driver: Intel Rapid Storage Technology 12.0.1.1019

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc10 -Qstd=c99 ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_P64
416.gamess:	-DSPEC_CPU_P64
433.milc:	-DSPEC_CPU_P64
434.zeusmp:	-DSPEC_CPU_P64
435.gromacs:	-DSPEC_CPU_P64
436.cactusADM:	-DSPEC_CPU_P64 /names:lowercase /assume:underscore
437.leslie3d:	-DSPEC_CPU_P64
444.namd:	-DSPEC_CPU_P64 /TP
447.dealII:	-DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -Qoption,cpp,--ms_incompat_treatment_of_commas_in_macros
450.soplex:	-DSPEC_CPU_P64
453.povray:	-DSPEC_CPU_P64 -DSPEC_CPU_NEED_INVHYP -DNEED_INVHYP
454.calculix:	-DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER /names:lowercase
459.GemsFDTD:	-DSPEC_CPU_P64
465.tonto:	-DSPEC_CPU_P64
470.lbm:	-DSPEC_CPU_P64
481.wrf:	-DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:	-DSPEC_CPU_P64

Base Optimization Flags

Peak Compiler Invocation

C benchmarks:

icl -Qvc10 -Qstd=c99

C++ benchmarks:

icl -Qvc10

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc10 -Qstd=c99 ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	basepeak = yes
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	-QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
447.dealII:	basepeak = yes
450.soplex:	-QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE
453.povray:	-QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	basepeak = yes
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	basepeak = yes
465.tonto:	-QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto /F1000000000 -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:	basepeak = yes
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-windows.xml.
