SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x3500 M4
(Intel Xeon E5-2667 v2, 3.30 GHz)

SPECint®2006 = 67.5

CPU2006 license: 11 Test date: Feb-2014
Test sponsor: IBM Corporation Hardware Availability: Dec-2013
Tested by: IBM Corporation Software Availability: Sep-2013

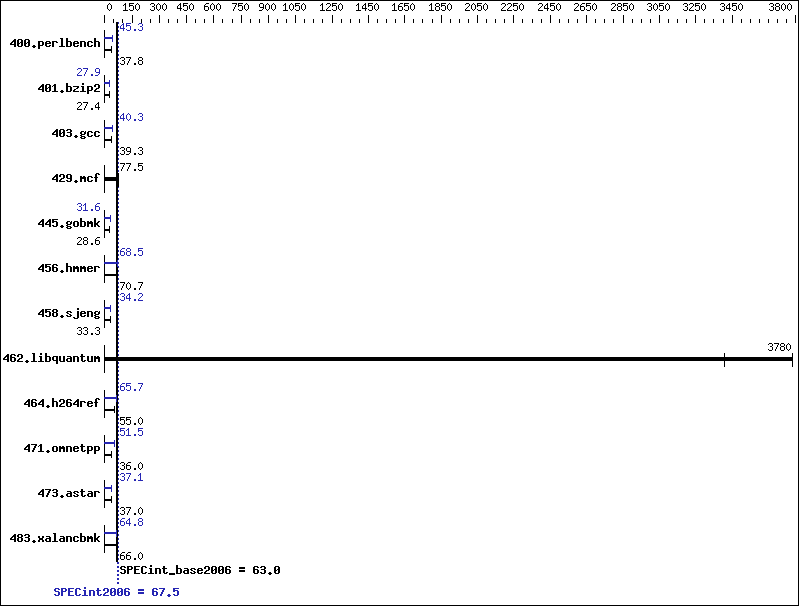

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2667 v2
CPU Characteristics: Intel Turbo Boost Technology up to 4.00 GHz
CPU MHz: 3300
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (16 x 16 GB 2Rx4 PC3-14900R-13, ECC)
Disk Subsystem: 1 x 1 TB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.4
(Santiago)
2.6.32-358.el6.x86_64
Compiler: C/C++: Version 14.0.0.080 of Intel C++ Studio XE
for Linux
Auto Parallel: Yes
File System: ext4
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V10.0

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 259    37.7 258    37.8 257    38.0 216    45.3 216    45.3 216    45.2
401.bzip2 352    27.4 352    27.4 351    27.5 346    27.9 347    27.8 346    27.9
403.gcc 205    39.3 205    39.3 205    39.3 199    40.5 200    40.3 200    40.2
429.mcf 117    77.9 119    76.6 118    77.5 117    77.9 119    76.6 118    77.5
445.gobmk 367    28.6 367    28.6 368    28.5 332    31.6 332    31.6 332    31.6
456.hmmer 132    70.7 132    70.7 132    70.8 136    68.5 138    67.8 135    68.9
458.sjeng 364    33.3 363    33.3 363    33.3 354    34.2 353    34.3 354    34.2
462.libquantum 6.08 3410   5.48 3780   5.48 3780   6.08 3410   5.48 3780   5.48 3780
464.h264ref 403    55.0 403    54.9 403    55.0 337    65.7 337    65.7 336    65.8
471.omnetpp 179    35.0 172    36.3 174    36.0 121    51.8 122    51.4 121    51.5
473.astar 189    37.2 190    36.9 190    37.0 189    37.2 189    37.1 190    36.9
483.xalancbmk 105    65.9 104    66.0 105    66.0 106    64.8 106    64.8 106    65.0

Submit Notes

The config file option 'submit' was used.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"
 Zone reclaim mode enabled with:
 echo 1 > /proc/sys/vm/zone_reclaim_mode

Platform Notes

 BIOS setting:
 Operating Mode set to Maximum Performance
 Hyper-Threading set to Disabled
 Sysinfo program /home/SPECcpu-new/config/sysinfo.rev6818
 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191
 running on x3500M4 Mon Feb 10 14:19:54 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2667 v2 @ 3.30GHz
       2 "physical id"s (chips)
       16 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 8
       siblings  : 8
       physical 0: cores 1 2 3 4 8 9 10 11
       physical 1: cores 1 2 3 4 8 9 10 11
    cache size : 25600 KB

 From /proc/meminfo
    MemTotal:       264656392 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.4 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux x3500M4 2.6.32-358.el6.x86_64 #1 SMP Tue Jan 29 11:47:41 EST 2013
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Feb 10 14:13

 SPEC is set to: /home/SPECcpu-new
    Filesystem    Type    Size  Used Avail Use% Mounted on
    /dev/mapper/vg_intelcrb-lv_home
                  ext4    863G   10G  809G   2% /home

 Additional information from dmidecode:
   BIOS IBM -[TKE133FUS-1.50]- 07/26/2013
   Memory:
    8x Not Specified Not Specified
    16x Samsung M393B2G70QH0-CMA 16 GB 1867 MHz 2 rank

 (End of data from sysinfo program)
"Not Specified" memory information from dmidecode indicates unused DIMM slots.

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/home/SPECcpu-new/libs/32:/home/SPECcpu-new/libs/64:/home/SPECcpu-new/sh"
OMP_NUM_THREADS = "16"

 Binaries compiled on a system with 1x Core i7-860 CPU + 8GB
 memory using RedHat EL 6.4
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xAVX   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -auto-p32

C++ benchmarks:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -Wl,-z,muldefs   -L/sh -lsmartheap64

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m64
400.perlbench:  icc -m32
445.gobmk:  icc -m32
464.h264ref:  icc -m32

C++ benchmarks (except as noted below):

 icpc -m32
473.astar:  icpc -m64

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-prefetch   -ansi-alias
401.bzip2:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div   -prof-use(pass 2)   -auto-ilp32   -opt-prefetch   -ansi-alias
403.gcc:  -xAVX   -ipo   -O3   -no-prec-div   -inline-calloc   -opt-malloc-options=3   -auto-ilp32
429.mcf:  basepeak = yes
445.gobmk:  -xAVX(pass 2)   -prof-gen(pass 1)   -prof-use(pass 2)   -ansi-alias
456.hmmer:  -xAVX   -ipo   -O3   -no-prec-div   -unroll2   -auto-ilp32   -ansi-alias
458.sjeng:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4
462.libquantum:  basepeak = yes
464.h264ref:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-ra-region-strategy=block    -ansi-alias   -Wl,-z,muldefs   -L/sh -lsmartheap
473.astar:  -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -Wl,-z,muldefs   -L/sh -lsmartheap64
483.xalancbmk:  -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch   -ansi-alias   -Wl,-z,muldefs   -L/sh -lsmartheap

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.html,
http://www.spec.org/cpu2006/flags/IBM-Platform-Flags-V1.2-IVB-A.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.xml,
http://www.spec.org/cpu2006/flags/IBM-Platform-Flags-V1.2-IVB-A.xml.
