CPU2006 license: | 001176 | Test date: | Dec-2013 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Sep-2013 |
Tested by: | Supermicro | Software Availability: | Sep-2013 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2690 v2 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
CPU MHz: | 3000 |
FPU: | Integrated |
CPU(s) enabled: | 20 cores, 2 chips, 10 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 25 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 128 GB (8 x 16 GB 2Rx4 PC3-14900R-13, ECC) |
Disk Subsystem: | 1 x 400 GB SSD |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.4 (Santiago) 2.6.32-358.el6.x86_64 |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

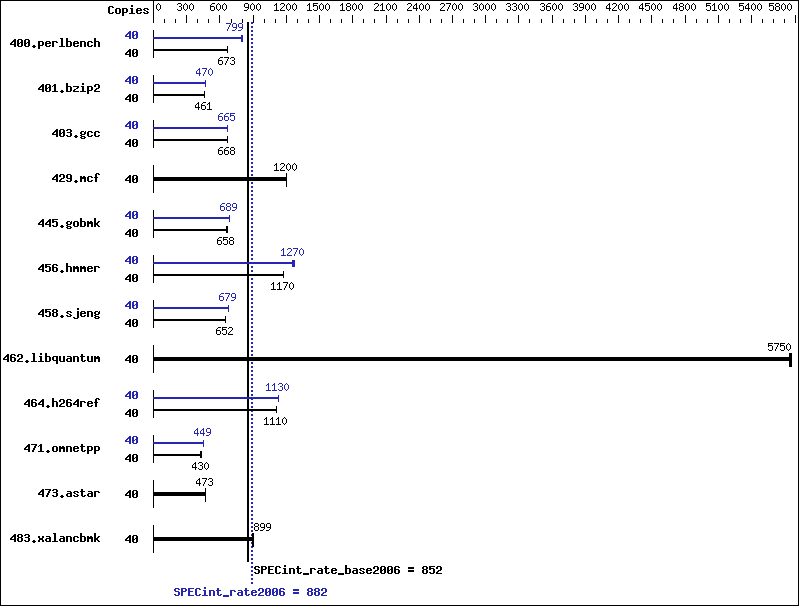

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 40 | 581 | 673 | 581 | 673 | 581 | 672 | 40 | 489 | 799 | 485 | 806 | 489 | 799 |
401.bzip2 | 40 | 837 | 461 | 836 | 461 | 837 | 461 | 40 | 820 | 470 | 820 | 471 | 822 | 470 |
403.gcc | 40 | 483 | 667 | 482 | 668 | 481 | 669 | 40 | 485 | 665 | 483 | 666 | 484 | 665 |
429.mcf | 40 | 303 | 1200 | 304 | 1200 | 304 | 1200 | 40 | 303 | 1200 | 304 | 1200 | 304 | 1200 |
445.gobmk | 40 | 637 | 658 | 628 | 668 | 638 | 658 | 40 | 609 | 689 | 614 | 683 | 609 | 689 |
456.hmmer | 40 | 318 | 1170 | 318 | 1170 | 317 | 1180 | 40 | 294 | 1270 | 297 | 1260 | 294 | 1270 |
458.sjeng | 40 | 742 | 652 | 743 | 652 | 742 | 653 | 40 | 713 | 679 | 713 | 679 | 715 | 677 |
462.libquantum | 40 | 144 | 5750 | 144 | 5760 | 144 | 5750 | 40 | 144 | 5750 | 144 | 5760 | 144 | 5750 |
464.h264ref | 40 | 795 | 1110 | 795 | 1110 | 794 | 1110 | 40 | 785 | 1130 | 786 | 1130 | 785 | 1130 |
471.omnetpp | 40 | 581 | 430 | 589 | 424 | 582 | 430 | 40 | 557 | 449 | 557 | 449 | 556 | 450 |
473.astar | 40 | 594 | 472 | 594 | 473 | 594 | 473 | 40 | 594 | 472 | 594 | 473 | 594 | 473 |
483.xalancbmk | 40 | 307 | 899 | 308 | 895 | 307 | 899 | 40 | 307 | 899 | 308 | 895 | 307 | 899 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
Sysinfo program /home/spec/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on 181-224.inet Wed Dec 11 16:27:33 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2690 v2 @ 3.00GHz 2 "physical id"s (chips) 40 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 10 siblings : 20 physical 0: cores 0 1 2 3 4 8 9 10 11 12 physical 1: cores 0 1 2 3 4 8 9 10 11 12 cache size : 25600 KB From /proc/meminfo MemTotal: 132123816 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.4 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux 181-224.inet 2.6.32-358.el6.x86_64 #1 SMP Tue Jan 29 11:47:41 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Dec 11 16:24 SPEC is set to: /home/spec Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_181224-lv_home ext4 314G 89G 210G 30% /home Additional information from dmidecode: BIOS American Megatrends Inc. 3.0 10/15/2013 Memory: 8x 16 GB 8x Samsung M393B2G70QH0- 16 GB 1866 MHz 1 rank (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/spec/libs/32:/home/spec/libs/64:/home/spec/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
429.mcf: | basepeak = yes |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
