| CPU2006 license: | 19 | Test date: | Jan-2014 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Feb-2014 |
| Tested by: | Fujitsu | Software Availability: | Sep-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2430L v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 6 cores, 1 chip, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (6 x 16 GB 2Rx4 PC3L-12800R-11, ECC) |
| Disk Subsystem: | 1 x SATA, 500 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.4 (Santiago) 2.6.32-358.11.1.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 5 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

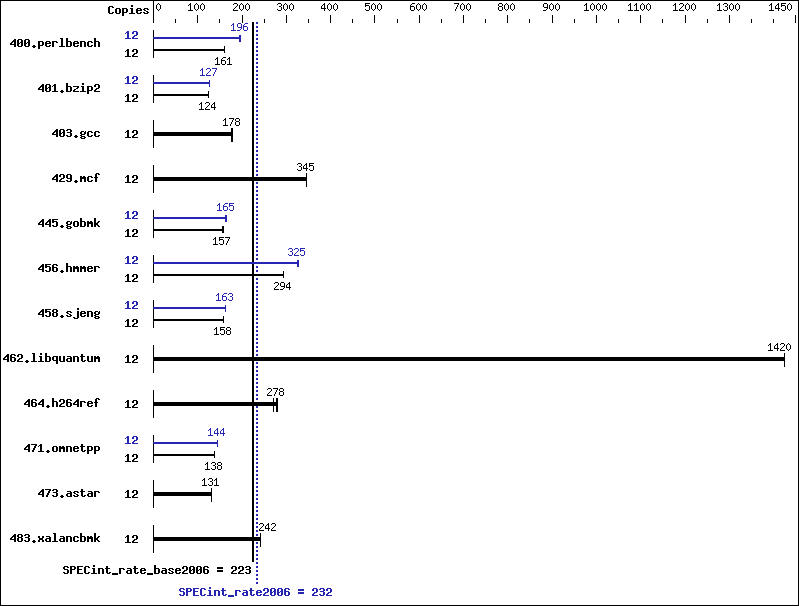

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 12 | 728 | 161 | 729 | 161 | 729 | 161 | 12 | 598 | 196 | 604 | 194 | 599 | 196 |
| 401.bzip2 | 12 | 939 | 123 | 937 | 124 | 935 | 124 | 12 | 913 | 127 | 912 | 127 | 909 | 127 |
| 403.gcc | 12 | 541 | 179 | 545 | 177 | 544 | 178 | 12 | 541 | 179 | 545 | 177 | 544 | 178 |
| 429.mcf | 12 | 317 | 345 | 317 | 345 | 317 | 346 | 12 | 317 | 345 | 317 | 345 | 317 | 346 |
| 445.gobmk | 12 | 802 | 157 | 802 | 157 | 803 | 157 | 12 | 774 | 163 | 765 | 165 | 765 | 165 |
| 456.hmmer | 12 | 381 | 294 | 381 | 294 | 381 | 294 | 12 | 342 | 327 | 345 | 325 | 345 | 325 |
| 458.sjeng | 12 | 921 | 158 | 923 | 157 | 916 | 158 | 12 | 891 | 163 | 887 | 164 | 891 | 163 |
| 462.libquantum | 12 | 175 | 1420 | 174 | 1430 | 175 | 1420 | 12 | 175 | 1420 | 174 | 1430 | 175 | 1420 |
| 464.h264ref | 12 | 949 | 280 | 978 | 271 | 956 | 278 | 12 | 949 | 280 | 978 | 271 | 956 | 278 |
| 471.omnetpp | 12 | 546 | 137 | 544 | 138 | 544 | 138 | 12 | 520 | 144 | 521 | 144 | 520 | 144 |
| 473.astar | 12 | 645 | 131 | 641 | 131 | 640 | 132 | 12 | 645 | 131 | 641 | 131 | 640 | 132 |
| 483.xalancbmk | 12 | 342 | 242 | 343 | 242 | 342 | 242 | 12 | 342 | 242 | 343 | 242 | 342 | 242 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration: Energy Performance = Performance
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/SPECcpu2006/libs/32:/SPECcpu2006/libs/64:/SPECcpu2006/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
