CPU2006 license: | 001176 | Test date: | Nov-2013 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Jan-2014 |
Tested by: | Supermicro | Software Availability: | Aug-2012 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 6338P |
CPU Characteristics: | AMD Turbo CORE technology up to 2.80 GHz |
CPU MHz: | 2300 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 384 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 2 MB shared / 2 cores |
L3 Cache: | 16 MB I+D on chip per chip, 8 MB shared / 6 cores |
Other Cache: | None |
Memory: | 256 GB (16 x 16 GB 2Rx4 PC3-12800R-11, ECC) |
Disk Subsystem: | 1 x 500 GB SATAIII, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | CentOS 6.4, Kernel 2.6.32-358.el6.x86_64 |
Compiler: | C/C++/Fortran: Version 4.5.2 of x86 Open64 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

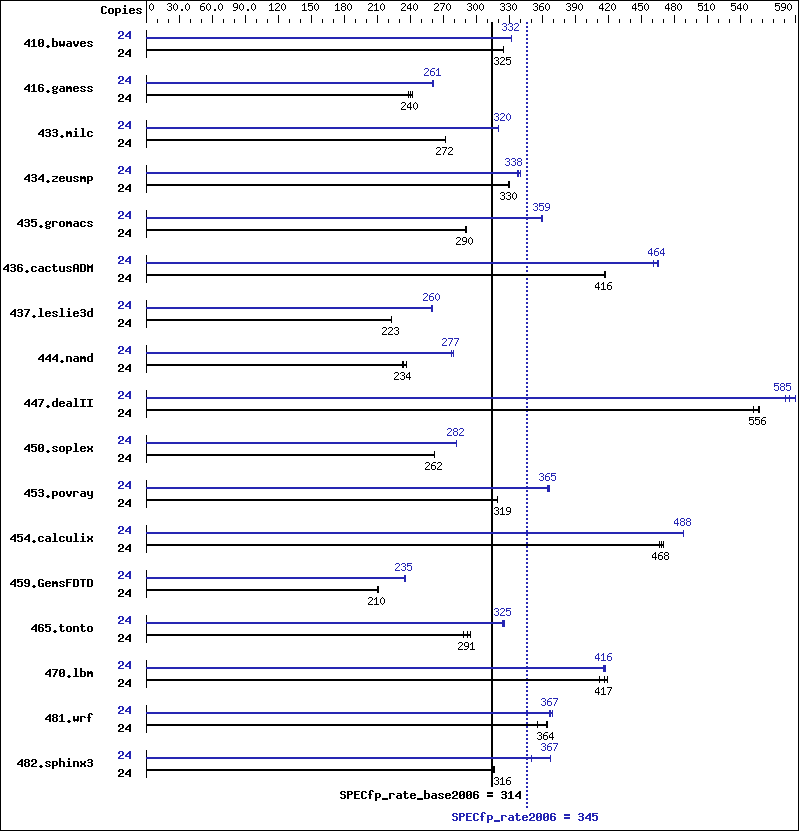

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 24 | 1004 | 325 | 1004 | 325 | 1005 | 325 | 24 | 983 | 332 | 983 | 332 | 983 | 332 |
416.gamess | 24 | 1960 | 240 | 1973 | 238 | 1947 | 241 | 24 | 1810 | 260 | 1803 | 261 | 1802 | 261 |
433.milc | 24 | 811 | 272 | 810 | 272 | 810 | 272 | 24 | 689 | 320 | 689 | 320 | 689 | 320 |
434.zeusmp | 24 | 663 | 330 | 664 | 329 | 662 | 330 | 24 | 642 | 340 | 647 | 337 | 645 | 338 |
435.gromacs | 24 | 589 | 291 | 592 | 290 | 591 | 290 | 24 | 477 | 359 | 478 | 359 | 476 | 360 |
436.cactusADM | 24 | 689 | 416 | 688 | 417 | 690 | 416 | 24 | 622 | 461 | 617 | 465 | 618 | 464 |
437.leslie3d | 24 | 1012 | 223 | 1012 | 223 | 1012 | 223 | 24 | 867 | 260 | 869 | 260 | 871 | 259 |
444.namd | 24 | 815 | 236 | 824 | 234 | 826 | 233 | 24 | 691 | 279 | 695 | 277 | 694 | 277 |
447.dealII | 24 | 494 | 556 | 498 | 551 | 493 | 557 | 24 | 470 | 585 | 473 | 581 | 466 | 589 |
450.soplex | 24 | 764 | 262 | 764 | 262 | 764 | 262 | 24 | 711 | 281 | 710 | 282 | 711 | 282 |
453.povray | 24 | 406 | 315 | 401 | 319 | 400 | 319 | 24 | 350 | 365 | 349 | 365 | 348 | 367 |
454.calculix | 24 | 424 | 466 | 423 | 468 | 422 | 469 | 24 | 406 | 488 | 406 | 488 | 406 | 488 |
459.GemsFDTD | 24 | 1210 | 211 | 1212 | 210 | 1210 | 210 | 24 | 1085 | 235 | 1084 | 235 | 1084 | 235 |
465.tonto | 24 | 810 | 291 | 819 | 288 | 803 | 294 | 24 | 730 | 324 | 726 | 325 | 728 | 325 |
470.lbm | 24 | 792 | 417 | 800 | 412 | 787 | 419 | 24 | 793 | 416 | 794 | 415 | 790 | 417 |
481.wrf | 24 | 736 | 364 | 754 | 356 | 737 | 364 | 24 | 732 | 366 | 727 | 369 | 729 | 367 |
482.sphinx3 | 24 | 1478 | 317 | 1481 | 316 | 1485 | 315 | 24 | 1275 | 367 | 1338 | 350 | 1273 | 367 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst Set vm/nr_hugepages=21504 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "896" LD_LIBRARY_PATH = "/home/cpu2006/amd1206-rate-libs-revA/32:/home/cpu2006/amd1206-rate-libs-revA/64" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64 Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
-Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso -march=bdver1 |
-Ofast -static -CG:load_exe=0 -OPT:malloc_alg=1 -INLINE:aggressive=on -HP:bd=2m:heap=2m -D__OPEN64_FAST_SET -march=bdver1 |
-Ofast -LNO:blocking=off -LNO:simd_peel_align=on -OPT:rsqrt=2 -OPT:unroll_size=256 -HP:bd=2m:heap=2m -mso -march=bdver1 |
-Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso -march=bdver1 -LNO:blocking=off -LNO:simd_peel_align=on -OPT:rsqrt=2 -OPT:unroll_size=256 |
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
