SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Flex System x240
(Intel Xeon E5-2648L v2, 1.90 GHz)

CPU2006 license: 11 Test date: Jan-2014
Test sponsor: IBM Corporation Hardware Availability: Dec-2013
Tested by: IBM Corporation Software Availability: Sep-2013

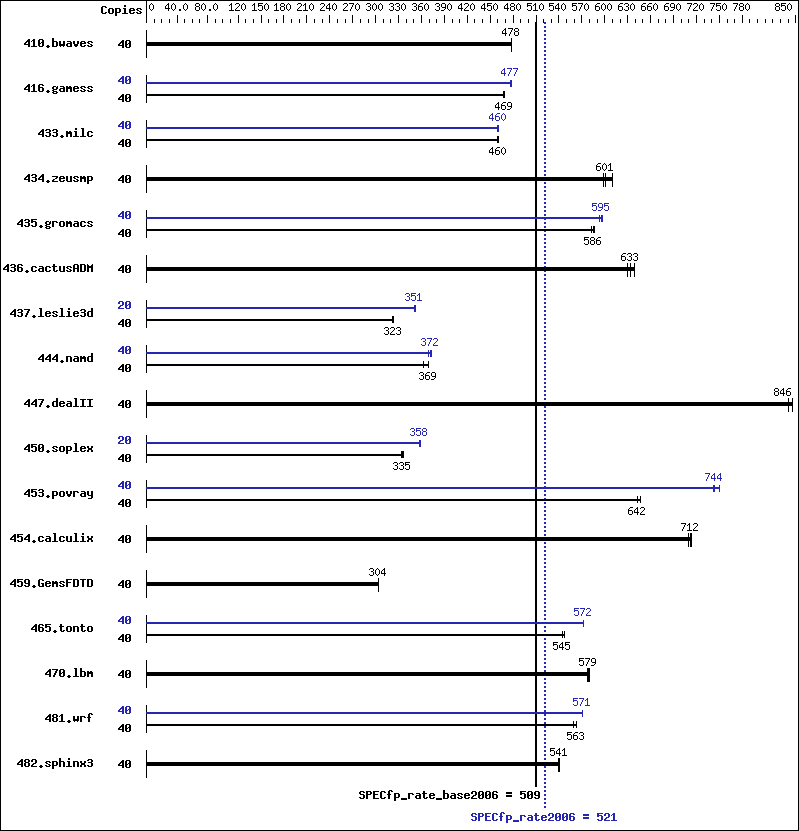

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2648L v2
CPU Characteristics: Intel Turbo Boost Technology up to 2.50 GHz
CPU MHz: 1900
FPU: Integrated
CPU(s) enabled: 20 cores, 2 chips, 10 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (16 x 16 GB 2Rx4 PC3-14900R-13, ECC)
Disk Subsystem: 1 x 300 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.4
(Santiago)
2.6.32-358.el6.x86_64
Compiler: C/C++: Version 14.0.0.080 of Intel C++ Studio XE
for Linux;
Fortran: Version 14.0.0.080 of Intel Fortran
Studio XE for Linux
Auto Parallel: No
File System: ext4
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 40 1137 478 1138 478 1137 478 40 1137 478 1138 478 1137 478
416.gamess 40 1672 469 1670 469 1674 468 40 1641 477 1643 477 1644 476
433.milc 40 798 460 798 460 798 460 40 797 460 798 460 799 460
434.zeusmp 40 609 598 605 601 597 610 40 609 598 605 601 597 610
435.gromacs 40 491 582 488 586 487 586 40 482 592 480 595 478 597
436.cactusADM 40 758 630 748 639 755 633 40 758 630 748 639 755 633
437.leslie3d 40 1167 322 1165 323 1164 323 20 534 352 535 351 536 351
444.namd 40 868 370 884 363 870 369 40 861 373 862 372 870 369
447.dealII 40 541 846 541 846 544 841 40 541 846 541 846 544 841
450.soplex 40 993 336 997 335 997 334 20 466 358 466 358 466 358
453.povray 40 331 642 331 642 329 647 40 286 744 286 743 284 750
454.calculix 40 463 712 465 709 462 714 40 463 712 465 709 462 714
459.GemsFDTD 40 1398 304 1395 304 1397 304 40 1398 304 1395 304 1397 304
465.tonto 40 720 547 722 545 723 544 40 688 572 688 572 688 572
470.lbm 40 948 580 949 579 952 577 40 948 580 949 579 952 577
481.wrf 40 794 563 794 563 799 559 40 783 570 782 571 783 571
482.sphinx3 40 1441 541 1446 539 1442 541 40 1441 541 1446 539 1442 541

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

 Operating Mode set to Maximum Perfomance in BIOS
 Sysinfo program /cpu2006.1.2_14.0_updates/config/sysinfo.rev6818
 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191
 running on BT2-IVB Sat Jan 25 13:44:29 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2648L v2 @ 1.90GHz
       2 "physical id"s (chips)
       40 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 10
       siblings  : 20
       physical 0: cores 0 1 2 3 4 8 9 10 11 12
       physical 1: cores 0 1 2 3 4 8 9 10 11 12
    cache size : 25600 KB

 From /proc/meminfo
    MemTotal:       264501696 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.4 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux BT2-IVB 2.6.32-358.el6.x86_64 #1 SMP Tue Jan 29 11:47:41 EST 2013
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jan 24 22:06

 SPEC is set to: /cpu2006.1.2_14.0_updates
    Filesystem    Type    Size  Used Avail Use% Mounted on
    /dev/mapper/vg_bt2ivb-lv_root
                  ext4    265G   69G  183G  28% /

 Additional information from dmidecode:
   BIOS IBM -[B2E135RUS-1.40]- 11/06/2013
   Memory:
    16x Micron 36JSF2G72PZ-1G9E1 16 GB 1867 MHz 2 rank
    8x Not Specified Not Specified

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/cpu2006.1.2_14.0_updates/libs/32:/cpu2006.1.2_14.0_updates/libs/64:/cpu2006.1.2_14.0_updates/sh"

 Binaries compiled on a system with 1x Core i7-860 CPU + 8GB
 memory using RedHat EL 6.4
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

C++ benchmarks:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

Fortran benchmarks:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch

Benchmarks using both Fortran and C:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

Peak Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks (except as noted below):

 icpc -m64
450.soplex:  icpc -m32

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -auto-ilp32
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -opt-malloc-options=3
453.povray:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch
459.GemsFDTD:  basepeak = yes
465.tonto:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -auto   -inline-calloc   -opt-malloc-options=3

Benchmarks using both Fortran and C:

435.gromacs:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  -xAVX   -ipo   -O3   -no-prec-div   -auto-ilp32

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.html,
http://www.spec.org/cpu2006/flags/IBM-Platform-Flags-V1.2-IVB-A.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.xml,
http://www.spec.org/cpu2006/flags/IBM-Platform-Flags-V1.2-IVB-A.xml.
