SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Cisco Systems

Cisco UCS C220 M3 (Intel Xeon E5-2630 v2, 2.60
GHz)

CPU2006 license: 9019 Test date: Jan-2014
Test sponsor: Cisco Systems Hardware Availability: Dec-2013
Tested by: Cisco Systems Software Availability: Sep-2013

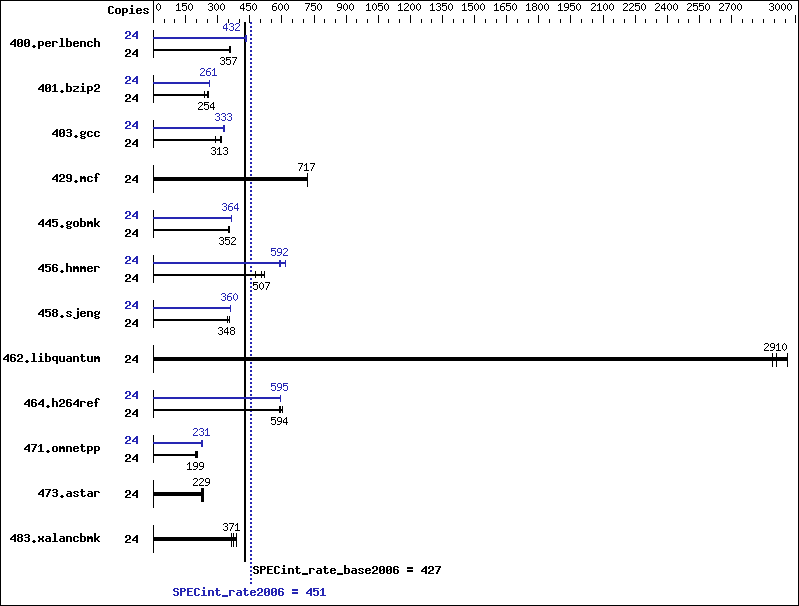

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2630 v2
CPU Characteristics: Intel Turbo Boost Technology up to 3.10 GHz
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 15 MB I+D on chip per chip
Other Cache: None
Memory: 128 GB (16 x 8 GB 2Rx4 PC3-14900R-13, ECC,
running at 1600 MHz and CL11)
Disk Subsystem: 1 X 146 GB 15000 RPM SAS
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.4
(Santiago)
2.6.32-358.el6.x86_64
Compiler: C/C++: Version 14.0.0.080 of Intel C++ Studio XE
for Linux
Auto Parallel: No
File System: ext4
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V10.0

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 24 658 356 656 357 656 357 24 543 432 542 433 543 432
401.bzip2 24 966 240 912 254 907 255 24 884 262 888 261 886 261
403.gcc 24 668 289 617 313 610 317 24 587 329 579 334 580 333
429.mcf 24 305 717 304 719 305 717 24 305 717 304 719 305 717
445.gobmk 24 715 352 709 355 720 350 24 691 364 691 364 691 364
456.hmmer 24 468 478 442 507 433 518 24 381 588 379 592 363 617
458.sjeng 24 835 348 815 356 835 348 24 804 361 808 360 806 360
462.libquantum 24 172 2890 171 2910 168 2960 24 172 2890 171 2910 168 2960
464.h264ref 24 882 602 894 594 905 587 24 892 595 894 594 892 596
471.omnetpp 24 753 199 759 198 726 207 24 667 225 650 231 650 231
473.astar 24 753 224 734 229 725 232 24 753 224 734 229 725 232
483.xalancbmk 24 454 365 446 371 425 389 24 454 365 446 371 425 389

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

Intel HT Technology = Enabled
CPU performance set to HPC
Power Technology set to Custom
CPU Power State C6 set to Disabled
CPU Power State C1 Enhanced set to Disabled
Energy Performance policy set to Performance
Memory RAS configuration set to Maximum Performance
DRAM Clock Throttling Set to Performance
LV DDR Mode set to Performance-mode
DRAM Refresh Rate Set to 1x
 Sysinfo program /opt/cpu2006-1.2/config/sysinfo.rev6818
 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191
 running on localhost.localdomain Thu Jan 16 15:54:59 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2630 v2 @ 2.60GHz
       2 "physical id"s (chips)
       24 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 6
       siblings  : 12
       physical 0: cores 0 1 2 3 4 5
       physical 1: cores 0 1 2 3 4 5
    cache size : 15360 KB

 From /proc/meminfo
    MemTotal:       115578560 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.4 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux localhost.localdomain 2.6.32-358.el6.x86_64 #1 SMP Tue Jan 29 11:47:41
    EST 2013 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jan 16 15:54

 SPEC is set to: /opt/cpu2006-1.2
    Filesystem    Type    Size  Used Avail Use% Mounted on
    /dev/sda1     ext4    134G   14G  114G  11% /

 Additional information from dmidecode:
   BIOS Cisco Systems, Inc. C220M3.1.5.2.27.071120132232 07/11/2013
   Memory:
    16x 0xAD00 HMT31GR7EFR4C-RD 8 GB 1600 MHz 2 rank

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/opt/cpu2006-1.2/libs/32:/opt/cpu2006-1.2/libs/64:/opt/cpu2006-1.2/sh"

 Binaries compiled on a system with 1x Core i7-860 CPU + 8GB
 memory using RedHat EL 6.4
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m32

C++ benchmarks:

 icpc -m32

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -opt-mem-layout-trans=3

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -opt-mem-layout-trans=3   -Wl,-z,muldefs   -L/sh -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m32
400.perlbench:  icc -m64
401.bzip2:  icc -m64
456.hmmer:  icc -m64
458.sjeng:  icc -m64

C++ benchmarks:

 icpc -m32

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -auto-ilp32
401.bzip2:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32   -ansi-alias
403.gcc:  -xSSE4.2   -ipo   -O3   -no-prec-div
429.mcf:  basepeak = yes
445.gobmk:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -prof-use(pass 2)   -ansi-alias   -opt-mem-layout-trans=3
456.hmmer:  -xSSE4.2   -ipo   -O3   -no-prec-div   -unroll2   -auto-ilp32
458.sjeng:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -auto-ilp32
462.libquantum:  basepeak = yes
464.h264ref:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/sh -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.html,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2.20140311.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.xml,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2.20140311.xml.
