SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter HS23
(Intel Xeon E5-2618L v2, 2.00 GHz)

CPU2006 license: 11 Test date: Jan-2014
Test sponsor: IBM Corporation Hardware Availability: Dec-2013
Tested by: IBM Corporation Software Availability: Sep-2013

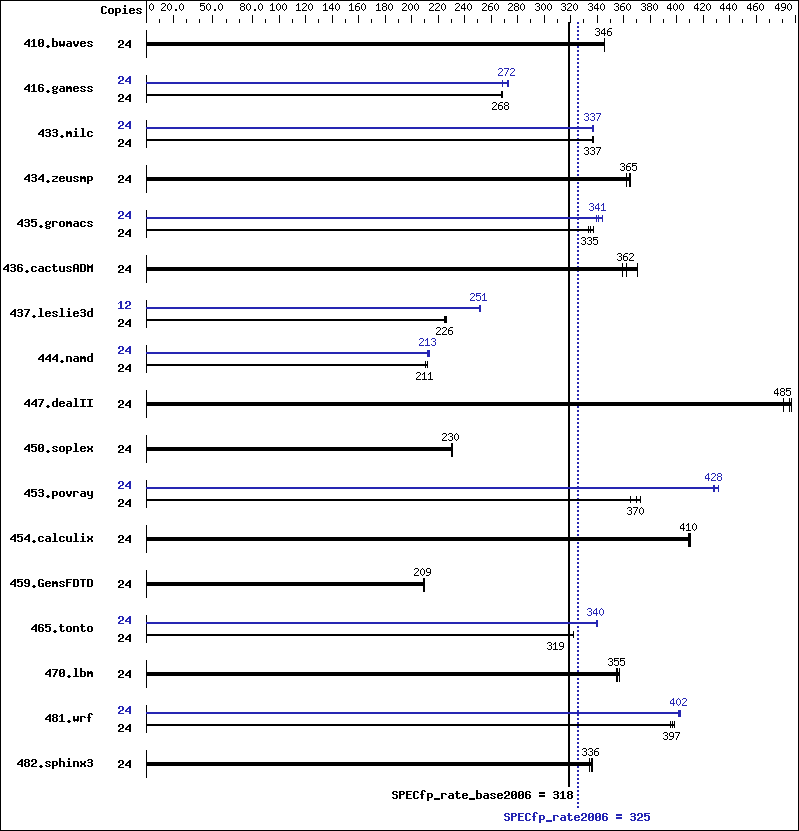

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2618L v2
CPU Characteristics:
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 15 MB I+D on chip per chip
Other Cache: None
Memory: 128 GB (8 x 16 GB 2Rx4 PC3-14900R-13, ECC,
running at 1333 MHz)
Disk Subsystem: 1 x 300 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.4
(Santiago)
2.6.32-358.el6.x86_64
Compiler: C/C++: Version 14.0.0.080 of Intel C++ Studio XE
for Linux;
Fortran: Version 14.0.0.080 of Intel Fortran
Studio XE for Linux
Auto Parallel: No
File System: ext4
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 24 943 346 944 346 943 346 24 943 346 944 346 943 346
416.gamess 24 1753 268 1756 268 1750 268 24 1747 269 1719 273 1726 272
433.milc 24 653 337 655 336 653 337 24 653 337 655 337 653 337
434.zeusmp 24 598 365 603 362 599 365 24 598 365 603 362 599 365
435.gromacs 24 513 334 512 335 508 337 24 505 339 502 341 498 344
436.cactusADM 24 774 371 798 360 791 362 24 774 371 798 360 791 362
437.leslie3d 24 998 226 1004 225 996 226 12 448 252 449 251 449 251
444.namd 24 909 212 913 211 913 211 24 901 214 903 213 906 212
447.dealII 24 566 485 571 481 564 487 24 566 485 571 481 564 487
450.soplex 24 868 230 870 230 866 231 24 868 230 870 230 866 231
453.povray 24 350 365 343 372 345 370 24 298 428 296 432 298 428
454.calculix 24 482 410 484 409 483 410 24 482 410 484 409 483 410
459.GemsFDTD 24 1216 209 1216 209 1215 210 24 1216 209 1216 209 1215 210
465.tonto 24 741 319 740 319 733 322 24 694 340 695 340 695 340
470.lbm 24 924 357 928 355 930 355 24 924 357 928 355 930 355
481.wrf 24 678 395 672 399 676 397 24 665 403 666 402 668 402
482.sphinx3 24 1392 336 1390 337 1398 335 24 1392 336 1390 337 1398 335

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

 Operating Mode set to Maximum Perfomance in BIOS
 Sysinfo program /cpu2006.1.2_14.0_updated/config/sysinfo.rev6818
 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191
 running on HS23-IVB Thu Jan 16 07:19:08 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2618L v2 @ 2.00GHz
       2 "physical id"s (chips)
       24 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 6
       siblings  : 12
       physical 0: cores 0 1 2 3 4 5
       physical 1: cores 0 1 2 3 4 5
    cache size : 15360 KB

 From /proc/meminfo
    MemTotal:       132131468 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.4 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux HS23-IVB 2.6.32-358.el6.x86_64 #1 SMP Tue Jan 29 11:47:41 EST 2013
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Jan 15 15:19

 SPEC is set to: /cpu2006.1.2_14.0_updated
    Filesystem    Type    Size  Used Avail Use% Mounted on
    /dev/mapper/vg_hs23ivb-lv_root
                  ext4     50G  6.9G   40G  15% /

 Additional information from dmidecode:
   BIOS IBM -[TKE135FUS-1.50]- 08/14/2013
   Memory:
    8x Micron 36JDZS2G72PZ-1G9E1 16 GB 1333 MHz 2 rank
    8x Not Specified Not Specified

 (End of data from sysinfo program)
Memory speed from dmidecode lists the downclocked speed of the run.

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/cpu2006.1.2_14.0_updated/libs/32:/cpu2006.1.2_14.0_updated/libs/64:/cpu2006.1.2_14.0_updated/sh"

 Binaries compiled on a system with 1x Core i7-860 CPU + 8GB
 memory using RedHat EL 6.4
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

C++ benchmarks:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

Fortran benchmarks:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch

Benchmarks using both Fortran and C:

 -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch   -auto-p32   -ansi-alias   -opt-mem-layout-trans=3

Peak Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -auto-ilp32
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  -xAVX   -ipo   -O3   -no-prec-div   -opt-prefetch
459.GemsFDTD:  basepeak = yes
465.tonto:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -auto   -inline-calloc   -opt-malloc-options=3

Benchmarks using both Fortran and C:

435.gromacs:  -xAVX(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -opt-mem-layout-trans=3(pass 2)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  -xAVX   -ipo   -O3   -no-prec-div   -auto-ilp32

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.html,
http://www.spec.org/cpu2006/flags/IBM-Platform-Flags-V1.2-IVB-A.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.xml,
http://www.spec.org/cpu2006/flags/IBM-Platform-Flags-V1.2-IVB-A.xml.
