CPU2006 license: | 55 | Test date: | Nov-2013 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Jan-2014 |
Tested by: | Dell Inc. | Software Availability: | Sep-2013 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2450L v2 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.10 GHz |
CPU MHz: | 1700 |
FPU: | Integrated |
CPU(s) enabled: | 20 cores, 2 chips, 10 cores/chip, 2 threads/core |
CPU(s) orderable: | 2 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 25 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 96 GB (6 x 16 GB 2Rx4 PC3L-12800R-11, ECC) |
Disk Subsystem: | 2 x 50 GB SATA SSD, RAID 0 |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) 3.0.76-0.11-default |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux; Fortran: Version 14.0.0.080 of Intel Fortran Studio XE for Linux |
Auto Parallel: | No |
File System: | ext2 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

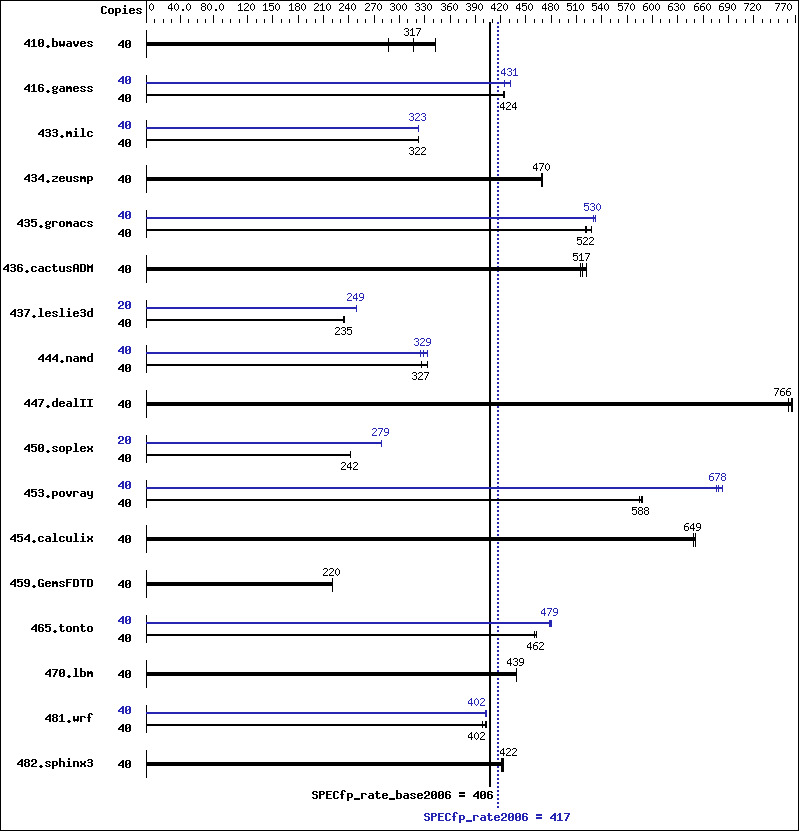

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 40 | 1584 | 343 | 1715 | 317 | 1895 | 287 | 40 | 1584 | 343 | 1715 | 317 | 1895 | 287 |
416.gamess | 40 | 1846 | 424 | 1846 | 424 | 1847 | 424 | 40 | 1816 | 431 | 1816 | 431 | 1844 | 425 |
433.milc | 40 | 1139 | 322 | 1140 | 322 | 1139 | 323 | 40 | 1139 | 322 | 1138 | 323 | 1138 | 323 |
434.zeusmp | 40 | 774 | 470 | 777 | 469 | 775 | 470 | 40 | 774 | 470 | 777 | 469 | 775 | 470 |
435.gromacs | 40 | 548 | 522 | 541 | 528 | 548 | 521 | 40 | 539 | 530 | 536 | 532 | 538 | 530 |
436.cactusADM | 40 | 916 | 522 | 925 | 517 | 929 | 514 | 40 | 916 | 522 | 925 | 517 | 929 | 514 |
437.leslie3d | 40 | 1603 | 235 | 1605 | 234 | 1602 | 235 | 20 | 755 | 249 | 754 | 249 | 754 | 249 |
444.namd | 40 | 985 | 326 | 961 | 334 | 982 | 327 | 40 | 986 | 325 | 976 | 329 | 964 | 333 |
447.dealII | 40 | 597 | 766 | 598 | 766 | 601 | 762 | 40 | 597 | 766 | 598 | 766 | 601 | 762 |
450.soplex | 40 | 1380 | 242 | 1380 | 242 | 1380 | 242 | 20 | 599 | 279 | 599 | 279 | 599 | 278 |
453.povray | 40 | 362 | 588 | 362 | 588 | 364 | 585 | 40 | 315 | 677 | 314 | 678 | 311 | 683 |
454.calculix | 40 | 507 | 651 | 508 | 649 | 509 | 648 | 40 | 507 | 651 | 508 | 649 | 509 | 648 |
459.GemsFDTD | 40 | 1926 | 220 | 1928 | 220 | 1924 | 221 | 40 | 1926 | 220 | 1928 | 220 | 1924 | 221 |
465.tonto | 40 | 856 | 460 | 851 | 462 | 852 | 462 | 40 | 820 | 480 | 822 | 479 | 823 | 478 |
470.lbm | 40 | 1252 | 439 | 1253 | 439 | 1252 | 439 | 40 | 1252 | 439 | 1253 | 439 | 1252 | 439 |
481.wrf | 40 | 1109 | 403 | 1123 | 398 | 1111 | 402 | 40 | 1110 | 402 | 1112 | 402 | 1109 | 403 |
482.sphinx3 | 40 | 1851 | 421 | 1848 | 422 | 1840 | 424 | 40 | 1851 | 421 | 1848 | 422 | 1840 | 424 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
BIOS settings: Virtualization Technology disabled Execute Disable disabled Logical Processor enabled System Profile set to Performance Sysinfo program /root/cpu2006-1.2/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on linux Tue Nov 19 04:40:33 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2450L v2 @ 1.70GHz 2 "physical id"s (chips) 40 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 10 siblings : 20 physical 0: cores 0 1 2 3 4 8 9 10 11 12 physical 1: cores 0 1 2 3 4 8 9 10 11 12 cache size : 25600 KB From /proc/meminfo MemTotal: 99156164 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 3 uname -a: Linux linux 3.0.76-0.11-default #1 SMP Fri Jun 14 08:21:43 UTC 2013 (ccab990) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Nov 18 11:03 last=S SPEC is set to: /root/cpu2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext2 83G 43G 40G 52% / Additional information from dmidecode: BIOS Dell Inc. 2.0.22 09/23/2013 Memory: 6x 00CE04B300CE M393B2G70BH0-YK0 16 GB 1600 MHz (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/root/cpu2006-1.2/libs/32:/root/cpu2006-1.2/libs/64:/root/cpu2006-1.2/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
icc -m64 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
433.milc: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -auto-ilp32 |
470.lbm: | basepeak = yes |
482.sphinx3: | basepeak = yes |
444.namd: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
435.gromacs: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | -xAVX -ipo -O3 -no-prec-div -auto-ilp32 |
