SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Cisco Systems

Cisco UCS C220 M3 (Intel Xeon E5-2695 v2, 2.40
GHz)

SPECfp®2006 = 56.8

CPU2006 license: 9019 Test date: Dec-2013
Test sponsor: Cisco Systems Hardware Availability: Dec-2013
Tested by: Cisco Systems Software Availability: Sep-2013

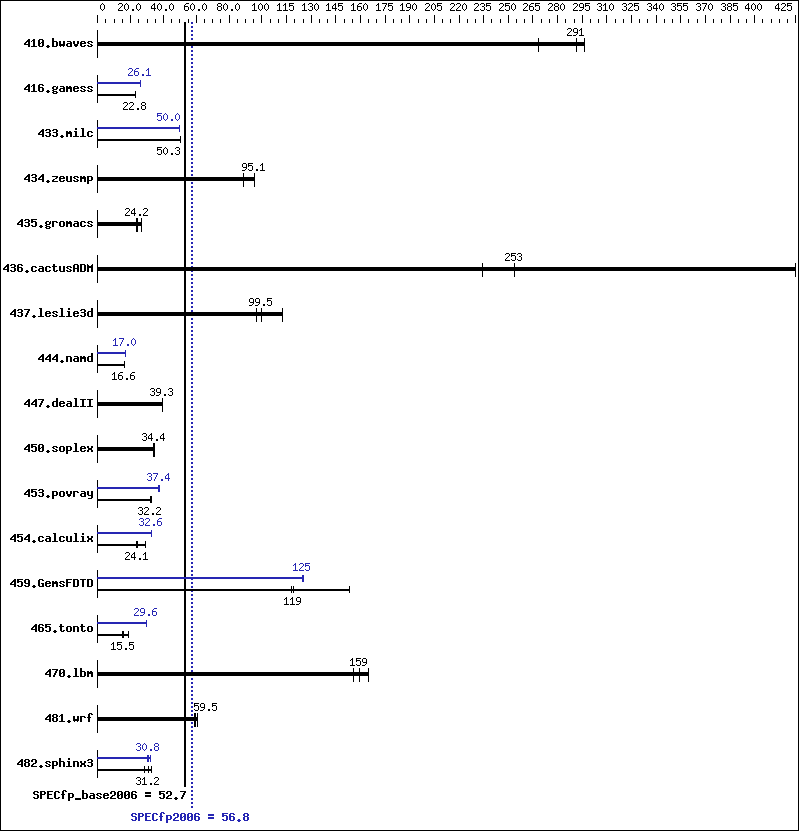

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2695 v2
CPU Characteristics: Intel Turbo Boost Technology up to 3.20 GHz
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 24 cores, 2 chips, 12 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 30 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (16 x 16 GB 2Rx4 PC3-14900R-13, ECC)
Disk Subsystem: 1 X 300 GB 15000 RPM SAS
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.4
(Santiago)
2.6.32-358.el6.x86_64
Compiler: C/C++: Version 14.0.0.080 of Intel C++ Studio XE
for Linux;
Fortran: Version 14.0.0.080 of Intel Fortran
Studio XE for Linux
Auto Parallel: Yes
File System: ext4
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 50.6 268   46.6 291   45.8 297   50.6 268   46.6 291   45.8 297
416.gamess 860   22.8 858   22.8 861   22.7 751   26.1 753   26.0 751   26.1
433.milc 182   50.4 182   50.3 182   50.3 184   50.0 184   50.0 184   50.0
434.zeusmp 103   88.5 95.6 95.1 95.2 95.5 103   88.5 95.6 95.1 95.2 95.5
435.gromacs 299   23.8 265   26.9 295   24.2 299   23.8 265   26.9 295   24.2
436.cactusADM 50.9 235   28.1 425   47.1 253   50.9 235   28.1 425   47.1 253
437.leslie3d 97.2 96.7 94.4 99.5 83.4 113   97.2 96.7 94.4 99.5 83.4 113
444.namd 484   16.6 484   16.6 484   16.6 473   17.0 473   17.0 472   17.0
447.dealII 291   39.3 292   39.2 291   39.3 291   39.3 292   39.2 291   39.3
450.soplex 243   34.4 242   34.4 245   34.0 243   34.4 242   34.4 245   34.0
453.povray 165   32.2 167   31.8 164   32.5 142   37.4 144   36.9 140   37.9
454.calculix 342   24.1 345   23.9 285   29.0 253   32.6 254   32.5 253   32.6
459.GemsFDTD 89.1 119   90.1 118   69.3 153   85.2 125   84.6 125   85.2 125
465.tonto 641   15.4 532   18.5 636   15.5 332   29.7 335   29.4 332   29.6
470.lbm 88.2 156   86.2 159   83.2 165   88.2 156   86.2 159   83.2 165
481.wrf 190   58.9 188   59.5 184   60.6 190   58.9 188   59.5 184   60.6
482.sphinx3 690   28.3 625   31.2 599   32.5 612   31.8 646   30.2 634   30.8

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

BIOS Settings:
Intel HT Technology = Enabled
CPU performance set to HPC
Power Technology set to Custom
CPU Power State C6 set to Enabled
CPU Power State C1 Enhanced set to Disabled
Energy Performance policy set to Performance
Memory RAS configuration set to Maximum Performance
DRAM Clock Throttling Set to Performance
LV DDR Mode set to Performance-mode
DRAM Refresh Rate Set to 1x
 Sysinfo program /opt/cpu2006-1.2/config/sysinfo.rev6818
 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191
 running on rhel6.4-speed Fri Dec 20 02:50:02 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2695 v2 @ 2.40GHz
       2 "physical id"s (chips)
       48 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 12
       siblings  : 24
       physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13
       physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13
    cache size : 30720 KB

 From /proc/meminfo
    MemTotal:       264455736 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.4 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux rhel6.4-speed 2.6.32-358.el6.x86_64 #1 SMP Tue Jan 29 11:47:41 EST 2013
    x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Dec 20 02:46

 SPEC is set to: /opt/cpu2006-1.2
    Filesystem    Type    Size  Used Avail Use% Mounted on
    /dev/sdb1     ext4    275G   98G  163G  38% /

 Additional information from dmidecode:
   BIOS Cisco Systems, Inc. C220M3.1.5.2.27.071120132232 07/11/2013
   Memory:
    16x 0xAD00 HMT42GR7AFR4C-RD 16 GB 1866 MHz 2 rank

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/opt/cpu2006-1.2/libs/32:/opt/cpu2006-1.2/libs/64:/opt/cpu2006-1.2/sh"
OMP_NUM_THREADS = "48"

 Binaries compiled on a system with 1x Core i7-860 CPU + 8GB
 memory using RedHat EL 6.4
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -ansi-alias

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -ansi-alias

Fortran benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch

Benchmarks using both Fortran and C:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -parallel   -opt-prefetch   -ansi-alias

Peak Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -auto-ilp32   -ansi-alias
470.lbm:  basepeak = yes
482.sphinx3:  -xSSE4.2   -ipo   -O3   -no-prec-div   -unroll2   -ansi-alias   -parallel

C++ benchmarks:

444.namd:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -inline-level=0   -scalar-rep-
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -inline-level=0   -opt-prefetch   -parallel
465.tonto:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -inline-calloc   -opt-malloc-options=3   -auto   -unroll4

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  -xSSE4.2   -ipo   -O3   -no-prec-div   -auto-ilp32   -ansi-alias
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.html,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2.20130717.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic14.0-official-linux64.20140128.xml,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2.20130717.xml.
