SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision T3610 (Intel Xeon E5-1650 v2, 3.50
GHz)

CPU2006 license: 55 Test date: Nov-2013
Test sponsor: Dell Inc. Hardware Availability: Sep-2013
Tested by: Dell Inc. Software Availability: Aug-2011

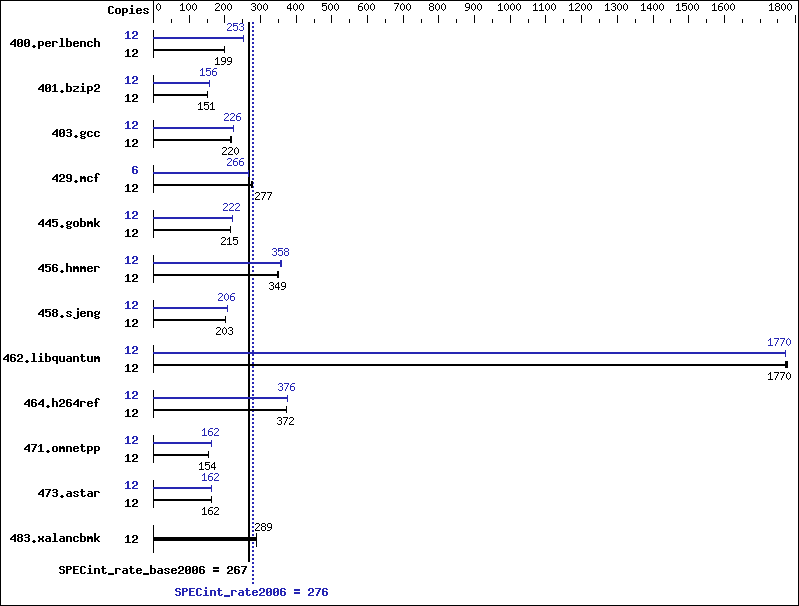

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-1650 v2
CPU Characteristics: Intel Turbo Boost Technology up to 3.90 GHz
CPU MHz: 3500
FPU: Integrated
CPU(s) enabled: 6 cores, 1 chip, 6 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8 x 4 GB 1Rx8 PC3-14900R-13, ECC)
Disk Subsystem: 1 x 500 GB SATA III 7200 RPM
Other Hardware: None
Software
Operating System: Windows 7 Professional (64-bit) SP1
Compiler: C/C++: Version 12.1.0.233 of Intel C++ Studio XE
for Windows
C/C++: Version 2010 of Microsoft Visual Studio
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 10.0

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 12 588 199 588 199 588 199 12 465 252 464 253 463 253
401.bzip2 12 763 151 763 151 765 151 12 743 156 743 156 743 156
403.gcc 12 441 220 441 220 444 217 12 427 226 427 226 433 223
429.mcf 12 393 278 394 277 397 276 6 204 268 206 266 206 266
445.gobmk 12 586 215 586 215 587 215 12 569 221 568 222 568 222
456.hmmer 12 320 350 322 348 320 349 12 313 358 314 356 313 358
458.sjeng 12 718 203 717 203 717 203 12 703 206 704 206 703 206
462.libquantum 12 140 1780 140 1770 140 1770 12 140 1770 140 1770 140 1770
464.h264ref 12 713 372 714 372 714 372 12 708 376 707 376 708 376
471.omnetpp 12 488 154 487 154 488 154 12 463 162 462 162 462 162
473.astar 12 519 162 519 162 520 162 12 519 162 519 162 519 162
483.xalancbmk 12 286 289 286 289 287 288 12 286 289 286 289 287 288

Submit Notes

The config file option 'submit' was used.

Operating System Notes

 Set power configuration to High Performance and disabled monitor blanking and sleep timer

Platform Notes

 Sysinfo program c:\cpu2006.v1.2/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on T3610-GLDN-PC Wed Nov 20 00:54:01 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Professional
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: Dell Inc.
 System Model  : Precision T3610
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 62 Stepping 4 GenuineIntel ~3501 Mhz
 BIOS Version  : Dell Inc. A03, 9/5/2013
 Total Physical Memory: 32,712 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 1536
 L3CacheSize   : 12288
 MaxClockSpeed : 3501
 Name          : Intel(R) Xeon(R) CPU E5-1650 v2 @ 3.50GHz
 NumberOfCores : 6
 NumberOfLogicalProcessors: 12

 (End of data from sysinfo program)

General Notes

 Binaries were compiled on a Precision T1600 system with a single Xeon E3-1200 CPU and 16GB memory using Windows 7 Professional 64-bit

Base Compiler Invocation

C benchmarks:

 icl   -Qvc10   -Qstd=c99

C++ benchmarks:

 icl   -Qvc10

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000

C++ benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc10   -Qstd=c99

C++ benchmarks:

 icl   -Qvc10

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
401.bzip2:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qansi-alias   /F512000000
403.gcc:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
429.mcf:  -QxAVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
445.gobmk:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O2   -Qprec-div-   -Qansi-alias   /F512000000
456.hmmer:  Same as 403.gcc
458.sjeng:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   /F512000000
462.libquantum:  Same as 429.mcf
464.h264ref:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   /F512000000

C++ benchmarks:

471.omnetpp:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=block   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
473.astar:  -QxAVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Dell-ic12.1-Windows.html,
http://www.spec.org/cpu2006/flags/Dell-platform-Precision.20131217.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Dell-ic12.1-Windows.xml,
http://www.spec.org/cpu2006/flags/Dell-platform-Precision.20131217.xml.
