| CPU2006 license: | 55 | Test date: | Nov-2013 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Sep-2013 |
| Tested by: | Dell Inc. | Software Availability: | Aug-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-1650 v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.90 GHz |
| CPU MHz: | 3500 |
| FPU: | Integrated |
| CPU(s) enabled: | 6 cores, 1 chip, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 32 GB (8 x 4 GB 1Rx8 PC3-14900R-13, ECC) |
| Disk Subsystem: | 1 x 500 GB SATA III 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows 7 Professional (64-bit) SP1 |
| Compiler: | C/C++: Version 12.1.0.233 of Intel C++ Studio XE for Windows C/C++: Version 2010 of Microsoft Visual Studio |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 10.0 |

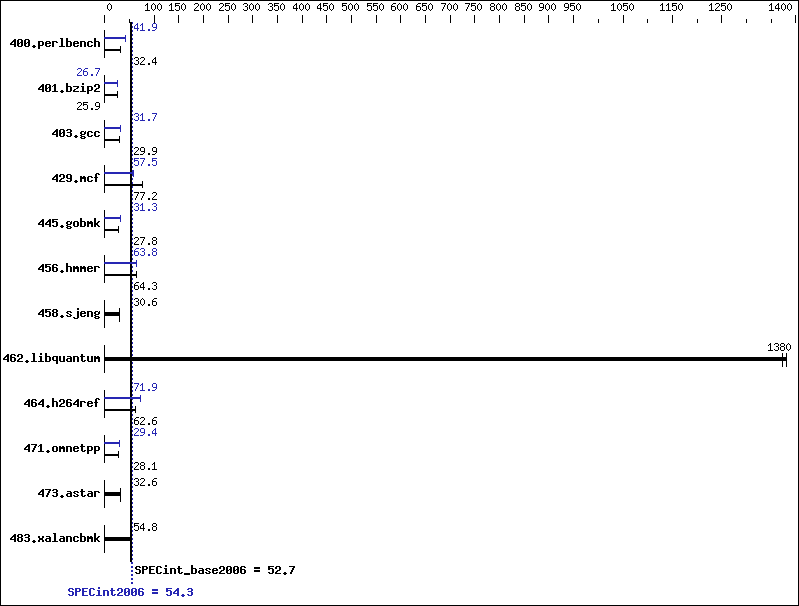

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 302 | 32.4 | 303 | 32.3 | 302 | 32.4 | 233 | 41.9 | 233 | 42.0 | 233 | 41.9 |
| 401.bzip2 | 372 | 25.9 | 372 | 25.9 | 372 | 25.9 | 362 | 26.7 | 361 | 26.7 | 361 | 26.7 |
| 403.gcc | 269 | 29.9 | 269 | 29.9 | 269 | 29.9 | 254 | 31.7 | 254 | 31.7 | 254 | 31.7 |
| 429.mcf | 118 | 77.2 | 118 | 77.2 | 118 | 77.4 | 159 | 57.5 | 159 | 57.4 | 159 | 57.5 |
| 445.gobmk | 377 | 27.8 | 377 | 27.8 | 377 | 27.8 | 336 | 31.3 | 336 | 31.2 | 336 | 31.3 |
| 456.hmmer | 145 | 64.2 | 145 | 64.5 | 145 | 64.3 | 146 | 63.9 | 146 | 63.8 | 147 | 63.6 |
| 458.sjeng | 396 | 30.6 | 396 | 30.6 | 396 | 30.6 | 396 | 30.6 | 396 | 30.6 | 396 | 30.6 |
| 462.libquantum | 15.0 | 1380 | 15.1 | 1370 | 15.0 | 1380 | 15.0 | 1380 | 15.1 | 1370 | 15.0 | 1380 |
| 464.h264ref | 353 | 62.7 | 354 | 62.5 | 353 | 62.6 | 308 | 71.9 | 308 | 71.9 | 308 | 71.9 |
| 471.omnetpp | 223 | 28.1 | 223 | 28.1 | 222 | 28.1 | 213 | 29.4 | 213 | 29.4 | 213 | 29.4 |
| 473.astar | 215 | 32.6 | 215 | 32.6 | 215 | 32.6 | 215 | 32.6 | 215 | 32.6 | 215 | 32.6 |
| 483.xalancbmk | 126 | 54.8 | 126 | 54.7 | 126 | 54.8 | 126 | 54.8 | 126 | 54.7 | 126 | 54.8 |
Operating System Notes
OMP_NUM_THREADS=6 (number of cores) Set power configuration to High Performance and disabled monitor blanking and sleep timer KMP_AFFINITY=granularity=fine,scatter
Platform Notes
Sysinfo program c:\cpu2006.v1.2/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on T3610-GLDN-PC Tue Nov 19 14:52:42 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 7 Professional OS Version : 6.1.7601 Service Pack 1 Build 7601 System Manufacturer: Dell Inc. System Model : Precision T3610 Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 62 Stepping 4 GenuineIntel ~3501 Mhz BIOS Version : Dell Inc. A03, 9/5/2013 Total Physical Memory: 32,712 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 1536 L3CacheSize : 12288 MaxClockSpeed : 3501 Name : Intel(R) Xeon(R) CPU E5-1650 v2 @ 3.50GHz NumberOfCores : 6 NumberOfLogicalProcessors: 12 (End of data from sysinfo program)
General Notes
Binaries were compiled on a Precision T1600 system with a single Xeon E3-1200 CPU and 16GB memory using Windows 7 Professional 64-bit
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_P64 -DSPEC_CPU_NO_NEED_VA_COPY -DSPEC_CPU_WIN64_X64 |
| 401.bzip2: | -DSPEC_CPU_P64 |
| 403.gcc: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64 |
| 429.mcf: | -DSPEC_CPU_P64 |
| 445.gobmk: | -DSPEC_CPU_P64 |
| 456.hmmer: | -DSPEC_CPU_P64 |
| 458.sjeng: | -DSPEC_CPU_P64 |
| 462.libquantum: | -DSPEC_CPU_P64 |
| 464.h264ref: | -DSPEC_CPU_P64 -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 471.omnetpp: | -DSPEC_CPU_P64 -DSPEC_CPU_WIN64 |
| 473.astar: | -DSPEC_CPU_P64 |
| 483.xalancbmk: | -DSPEC_CPU_P64 -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qauto-ilp32 /F512000000 |
C++ benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features -Qauto-ilp32 /F512000000 shlw64m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -QxAVX -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F512000000 shlw64m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -QxAVX(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias -Qauto-ilp32 /F512000000 |
| 403.gcc: | -Qprof_gen(pass 1) -QxAVX(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qauto-ilp32 /F512000000 |
| 429.mcf: | -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qauto-ilp32 /F512000000 |
| 445.gobmk: | -Qprof_gen(pass 1) -QxAVX(pass 2) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias -Qauto-ilp32 /F512000000 |
| 456.hmmer: | -QxAVX -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias -Qauto-ilp32 /F512000000 |
| 458.sjeng: | basepeak = yes |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -Qprof_gen(pass 1) -QxAVX(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias -Qauto-ilp32 /F512000000 |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -QxAVX(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block -Qauto-ilp32 /F512000000 shlw64m.lib -link /FORCE:MULTIPLE |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
