SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision M3800 (Intel(R) Core(R) i7-4702HQ,
2.20 GHz)

CPU2006 license: 55 Test date: Nov-2013
Test sponsor: Dell Inc. Hardware Availability: Nov-2013
Tested by: Dell Inc. Software Availability: Aug-2011

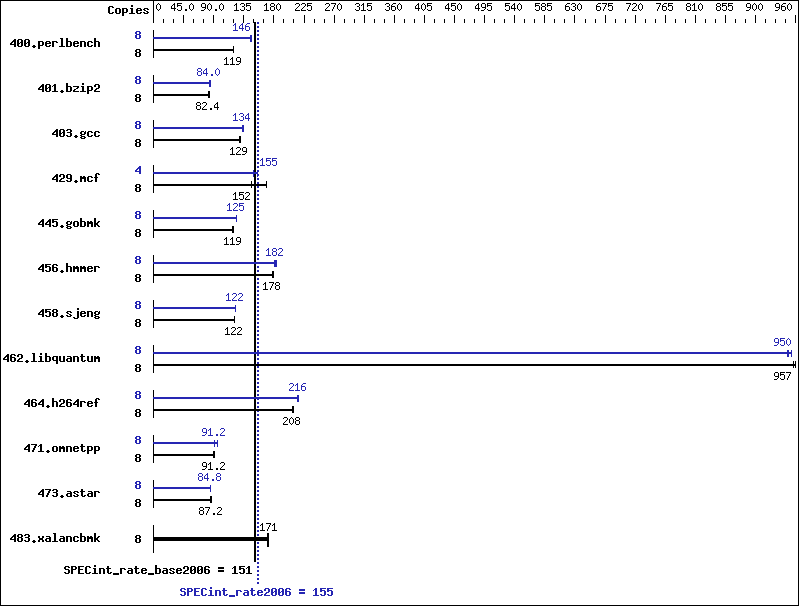

Benchmark results graph
Hardware
CPU Name: Intel Core i7-4702HQ
CPU Characteristics: Intel Turbo Boost Technology up to 3.20 GHz
CPU MHz: 2200
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (2 x 8 GB 1Rx8 PC3L-12800U-11)
Disk Subsystem: 1 x 1 TB SATA III 7200 RPM
Other Hardware: None
Software
Operating System: Windows 7 Professional (64-bit) SP1
Compiler: C/C++: Version 12.1.0.233 of Intel C++ Studio XE
for Windows
C/C++: Version 2010 of Microsoft Visual Studio
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 10.0

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 657 119   655 119   655 119   8 532 147   535 146   535 146
401.bzip2 8 938 82.4 939 82.4 931 83.2 8 909 84.8 916 84.0 921 84.0
403.gcc 8 497 130   502 128   499 129   8 480 134   485 133   483 134
429.mcf 8 430 170   499 146   479 152   4 235 155   235 155   243 150
445.gobmk 8 708 118   705 119   705 119   8 674 125   674 125   674 125
456.hmmer 8 419 178   416 179   418 178   8 406 184   412 182   409 182
458.sjeng 8 796 122   799 121   798 122   8 785 123   791 122   791 122
462.libquantum 8 173 957   173 960   173 957   8 175 948   174 954   175 950
464.h264ref 8 852 208   848 209   850 208   8 819 216   820 216   823 215
471.omnetpp 8 559 89.6 549 91.2 549 91.2 8 550 91.2 520 96.0 549 91.2
473.astar 8 645 87.2 653 85.6 647 87.2 8 662 84.8 659 84.8 662 84.8
483.xalancbmk 8 322 171   323 170   321 172   8 322 171   323 170   321 172

Submit Notes

The config file option 'submit' was used.

Operating System Notes

 Set power configuration to High Performance and disabled monitor blanking and sleep timer

Platform Notes

 Sysinfo program c:\cpu2006.v1.2/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on M3800-SPEC-PC Tue Nov 19 04:31:57 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Professional
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: Dell Inc.
 System Model  : Dell Precision M3800
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 60 Stepping 3 GenuineIntel ~2201 Mhz
 BIOS Version  : Dell Inc. A00, 10/3/2013
 Total Physical Memory: 16,287 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 1024
 L3CacheSize   : 6144
 MaxClockSpeed : 2201
 Name          : Intel(R) Core(TM) i7-4702HQ CPU @ 2.20GHz
 NumberOfCores : 4
 NumberOfLogicalProcessors: 8

 (End of data from sysinfo program)

General Notes

 Binaries were compiled on a Precision T1600 system with a single Xeon E3-1200 CPU and 16GB memory using Windows 7 Professional 64-bit

Base Compiler Invocation

C benchmarks:

 icl   -Qvc10   -Qstd=c99

C++ benchmarks:

 icl   -Qvc10

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000

C++ benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc10   -Qstd=c99

C++ benchmarks:

 icl   -Qvc10

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
401.bzip2:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qansi-alias   /F512000000
403.gcc:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
429.mcf:  -QxAVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
445.gobmk:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O2   -Qprec-div-   -Qansi-alias   /F512000000
456.hmmer:  Same as 403.gcc
458.sjeng:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   /F512000000
462.libquantum:  Same as 429.mcf
464.h264ref:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   /F512000000

C++ benchmarks:

471.omnetpp:  -Qprof_gen(pass 1)   -QxAVX(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=block   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
473.astar:  -QxAVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Dell-ic12.1-Windows.html,
http://www.spec.org/cpu2006/flags/Dell-platform-Precision.20131217.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Dell-ic12.1-Windows.xml,
http://www.spec.org/cpu2006/flags/Dell-platform-Precision.20131217.xml.
