| CPU2006 license: | 9019 | Test date: | Nov-2013 |
|---|---|---|---|
| Test sponsor: | Cisco Systems | Hardware Availability: | Sep-2013 |
| Tested by: | Cisco Systems | Software Availability: | Sep-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2667 v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 4.00 GHz |
| CPU MHz: | 3300 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 2 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 25 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-14900R-13, ECC) |
| Disk Subsystem: | 1 X 146 GB 15000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.4 (Santiago) 2.6.32-358.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

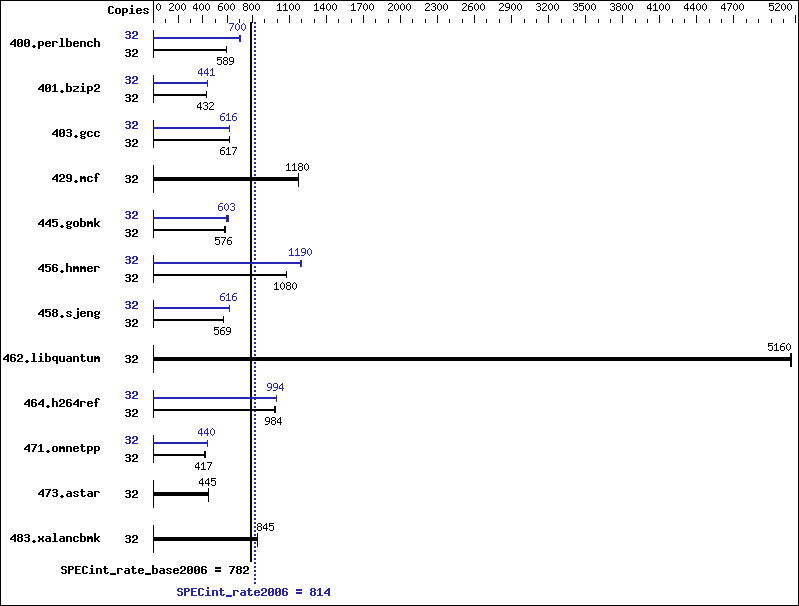

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 32 | 531 | 589 | 531 | 589 | 531 | 589 | 32 | 447 | 700 | 447 | 700 | 444 | 705 |
| 401.bzip2 | 32 | 714 | 432 | 714 | 432 | 714 | 432 | 32 | 702 | 440 | 700 | 441 | 700 | 441 |
| 403.gcc | 32 | 418 | 616 | 418 | 617 | 417 | 618 | 32 | 418 | 616 | 419 | 615 | 416 | 619 |
| 429.mcf | 32 | 248 | 1170 | 248 | 1180 | 248 | 1180 | 32 | 248 | 1170 | 248 | 1180 | 248 | 1180 |
| 445.gobmk | 32 | 584 | 575 | 583 | 576 | 576 | 583 | 32 | 556 | 603 | 557 | 603 | 572 | 587 |
| 456.hmmer | 32 | 277 | 1080 | 277 | 1080 | 277 | 1080 | 32 | 251 | 1190 | 250 | 1190 | 249 | 1200 |
| 458.sjeng | 32 | 681 | 569 | 682 | 568 | 680 | 570 | 32 | 629 | 615 | 629 | 616 | 629 | 616 |
| 462.libquantum | 32 | 129 | 5160 | 128 | 5160 | 129 | 5160 | 32 | 129 | 5160 | 128 | 5160 | 129 | 5160 |
| 464.h264ref | 32 | 720 | 984 | 725 | 977 | 720 | 984 | 32 | 712 | 994 | 712 | 994 | 713 | 994 |
| 471.omnetpp | 32 | 480 | 417 | 480 | 417 | 478 | 418 | 32 | 454 | 441 | 455 | 439 | 454 | 440 |
| 473.astar | 32 | 505 | 445 | 505 | 445 | 504 | 446 | 32 | 505 | 445 | 505 | 445 | 504 | 446 |
| 483.xalancbmk | 32 | 261 | 845 | 262 | 844 | 261 | 845 | 32 | 261 | 845 | 262 | 844 | 261 | 845 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS Settings: Intel HT Technology = Enabled CPU performance set to HPC Power Technology set to Custom CPU Power State C6 set to Enabled CPU Power State C1 Enhanced set to Disabled Energy Performance policy set to Performance Memory RAS configuration set to Maximum Performance DRAM Clock Throttling Set to Performance LV DDR Mode set to Performance-mode DRAM Refresh Rate Set to 1x Sysinfo program /opt/cpu2006-1.2/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on B200M3CRCR Thu Nov 7 23:21:00 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2667 v2 @ 3.30GHz 2 "physical id"s (chips) 32 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 16 physical 0: cores 1 2 3 4 8 9 10 11 physical 1: cores 1 2 3 4 8 9 10 11 cache size : 25600 KB From /proc/meminfo MemTotal: 132087320 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.4 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux B200M3CRCR 2.6.32-358.el6.x86_64 #1 SMP Tue Jan 29 11:47:41 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Nov 7 23:18 SPEC is set to: /opt/cpu2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext4 134G 38G 90G 30% / Additional information from dmidecode: BIOS Cisco Systems, Inc. B200M3.2.1.2.12.080620131158 08/06/2013 Memory: 16x 0xAD00 HMT31GR7EFR4C-RD 8 GB 1866 MHz 2 rank 8x NO DIMM NO DIMM (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/opt/cpu2006-1.2/libs/32:/opt/cpu2006-1.2/libs/64:/opt/cpu2006-1.2/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
