CPU2006 license: | 4 | Test date: | Sep-2013 |
---|---|---|---|
Test sponsor: | SGI | Hardware Availability: | Mar-2013 |
Tested by: | SGI | Software Availability: | Feb-2013 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 6376 |
CPU Characteristics: | AMD Turbo CORE technology up to 3.20 GHz |
CPU MHz: | 2300 |
FPU: | Integrated |
CPU(s) enabled: | 64 cores, 4 chips, 16 cores/chip |
CPU(s) orderable: | 2,4 chips |
Primary Cache: | 512 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core |
Secondary Cache: | 16 MB I+D on chip per chip, 2 MB shared / 2 cores |
L3 Cache: | 16 MB I+D on chip per chip, 8 MB shared / 8 cores |
Other Cache: | None |
Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC) |
Disk Subsystem: | 1 x 3000 GB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.4, (Santiago) Kernel version 2.6.32-358.el6.x86_64 |
Compiler: | C/C++: Version 4.5.2 of x86 Open64 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | xfs |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap 10.0 32-bit Library for Linux |

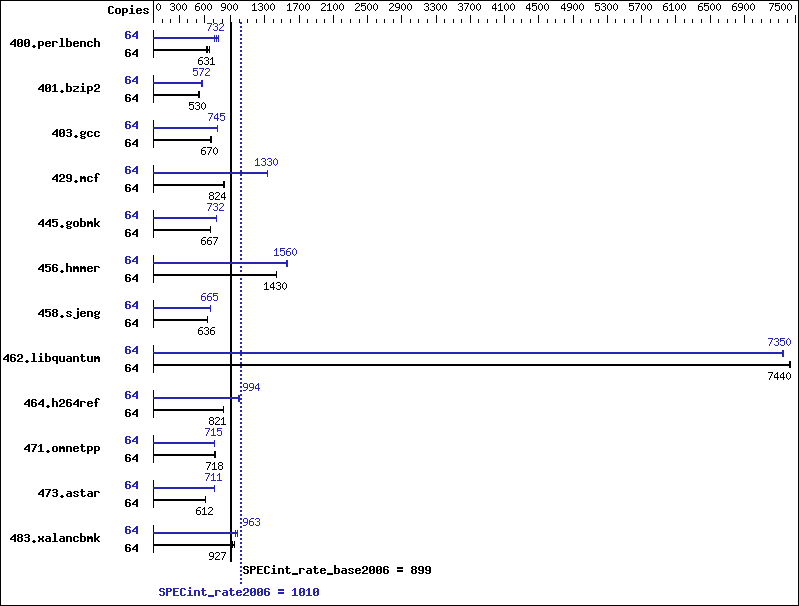

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 64 | 956 | 654 | 991 | 631 | 1019 | 614 | 64 | 854 | 732 | 874 | 715 | 820 | 762 |
401.bzip2 | 64 | 1164 | 530 | 1186 | 521 | 1161 | 532 | 64 | 1109 | 557 | 1075 | 575 | 1080 | 572 |
403.gcc | 64 | 764 | 674 | 770 | 669 | 768 | 670 | 64 | 690 | 747 | 692 | 744 | 692 | 745 |
429.mcf | 64 | 710 | 822 | 707 | 826 | 709 | 824 | 64 | 438 | 1330 | 437 | 1340 | 437 | 1330 |
445.gobmk | 64 | 1006 | 667 | 1006 | 667 | 1006 | 667 | 64 | 917 | 732 | 918 | 731 | 916 | 733 |
456.hmmer | 64 | 416 | 1430 | 417 | 1430 | 416 | 1440 | 64 | 383 | 1560 | 383 | 1560 | 383 | 1560 |
458.sjeng | 64 | 1218 | 636 | 1217 | 636 | 1217 | 636 | 64 | 1164 | 665 | 1163 | 666 | 1164 | 665 |
462.libquantum | 64 | 178 | 7440 | 178 | 7440 | 179 | 7420 | 64 | 180 | 7350 | 181 | 7340 | 180 | 7360 |
464.h264ref | 64 | 1724 | 821 | 1724 | 821 | 1721 | 823 | 64 | 1415 | 1000 | 1427 | 992 | 1426 | 994 |
471.omnetpp | 64 | 558 | 717 | 557 | 719 | 557 | 718 | 64 | 560 | 715 | 559 | 715 | 560 | 715 |
473.astar | 64 | 735 | 612 | 734 | 612 | 738 | 609 | 64 | 634 | 709 | 632 | 711 | 632 | 711 |
483.xalancbmk | 64 | 464 | 952 | 476 | 927 | 477 | 925 | 64 | 459 | 963 | 464 | 952 | 450 | 980 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Huge pages were not configured for this run.
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/data1/cpu2006-v1.2/amd1206-rate-libs-revA/32:/data1/cpu2006-v1.2/amd1206-rate-libs-revA/64" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64 Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-Ofast -CG:local_sched_alg=1 -INLINE:aggressive=ON -IPA:plimit=8000 -IPA:small_pu=100 -HP:bd=2m:heap=2m -mso -LNO:prefetch=2 -march=bdver1 |
-Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -D__OPEN64_FAST_SET -march=bdver1 -L/root/work/libraries/SmartHeap-10/lib -lsmartheap |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
