CPU2006 license: | 97 | Test date: | May-2013 |
---|---|---|---|
Test sponsor: | Acer Incorporated | Hardware Availability: | Sep-2013 |
Tested by: | Acer Incorporated | Software Availability: | Feb-2013 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E3-1230 v3 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.70 GHz |
CPU MHz: | 3300 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 16 GB (2 x 8 GB 2Rx8 PC3-12800E-11, ECC) |
Disk Subsystem: | 1 x 300 GB SAS, 10K RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.4 (Santiago) 2.6.32-358.el6.x86_64 |
Compiler: | C/C++: Version 13.0.0.133 of Intel C++ Studio XE for Linux |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

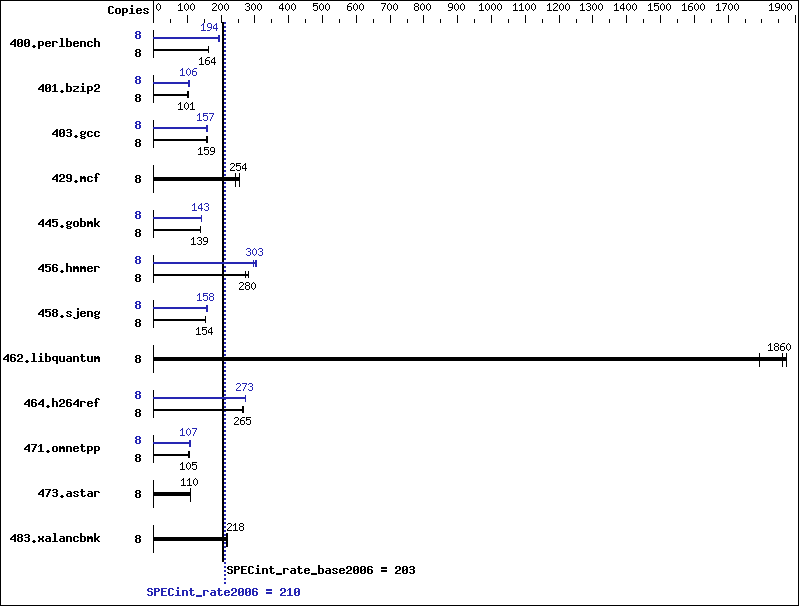

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 476 | 164 | 479 | 163 | 477 | 164 | 8 | 407 | 192 | 402 | 194 | 403 | 194 |
401.bzip2 | 8 | 755 | 102 | 764 | 101 | 774 | 99.7 | 8 | 726 | 106 | 750 | 103 | 724 | 107 |
403.gcc | 8 | 405 | 159 | 414 | 156 | 405 | 159 | 8 | 406 | 159 | 410 | 157 | 410 | 157 |
429.mcf | 8 | 287 | 254 | 285 | 256 | 302 | 242 | 8 | 287 | 254 | 285 | 256 | 302 | 242 |
445.gobmk | 8 | 602 | 139 | 603 | 139 | 606 | 138 | 8 | 587 | 143 | 587 | 143 | 586 | 143 |
456.hmmer | 8 | 265 | 282 | 273 | 273 | 267 | 280 | 8 | 253 | 295 | 245 | 305 | 247 | 303 |
458.sjeng | 8 | 624 | 155 | 632 | 153 | 630 | 154 | 8 | 611 | 158 | 618 | 157 | 614 | 158 |
462.libquantum | 8 | 92.4 | 1790 | 89.1 | 1860 | 88.5 | 1870 | 8 | 92.4 | 1790 | 89.1 | 1860 | 88.5 | 1870 |
464.h264ref | 8 | 668 | 265 | 664 | 266 | 670 | 264 | 8 | 649 | 273 | 648 | 273 | 648 | 273 |
471.omnetpp | 8 | 476 | 105 | 478 | 105 | 476 | 105 | 8 | 466 | 107 | 461 | 108 | 472 | 106 |
473.astar | 8 | 520 | 108 | 512 | 110 | 510 | 110 | 8 | 520 | 108 | 512 | 110 | 510 | 110 |
483.xalancbmk | 8 | 253 | 218 | 257 | 215 | 251 | 220 | 8 | 253 | 218 | 257 | 215 | 251 | 220 |
The taskset mechanism was used to bind copies to processors. The config file option 'submit' was used to generate taskset commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
Sysinfo program /usr/cpu2006/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on altost310f3 Thu May 30 18:24:52 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E3-1230 v3 @ 3.30GHz 1 "physical id"s (chips) 8 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 4 siblings : 8 physical 0: cores 0 1 2 3 cache size : 8192 KB From /proc/meminfo MemTotal: 16225544 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.4 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux altost310f3 2.6.32-358.el6.x86_64 #1 SMP Tue Jan 29 11:47:41 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 May 30 18:19 SPEC is set to: /usr/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_altost310f3-lv_root ext4 451G 23G 406G 6% / Additional information from dmidecode: BIOS Acer P01 04/22/2013 Memory: 2x 8 GB 2x Kingston ACR1GX72D3E16C11G 8 GB 1600 MHz 2 rank 2x [Empty] [Empty] (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/usr/cpu2006/libs/32:/usr/cpu2006/libs/64:/usr/cpu2006/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div |
429.mcf: | basepeak = yes |
445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xCORE-AVX2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
