SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC M10-4S

CPU2006 license: 19 Test date: Apr-2013
Test sponsor: Fujitsu Hardware Availability: Mar-2013
Tested by: Fujitsu Software Availability: Mar-2013

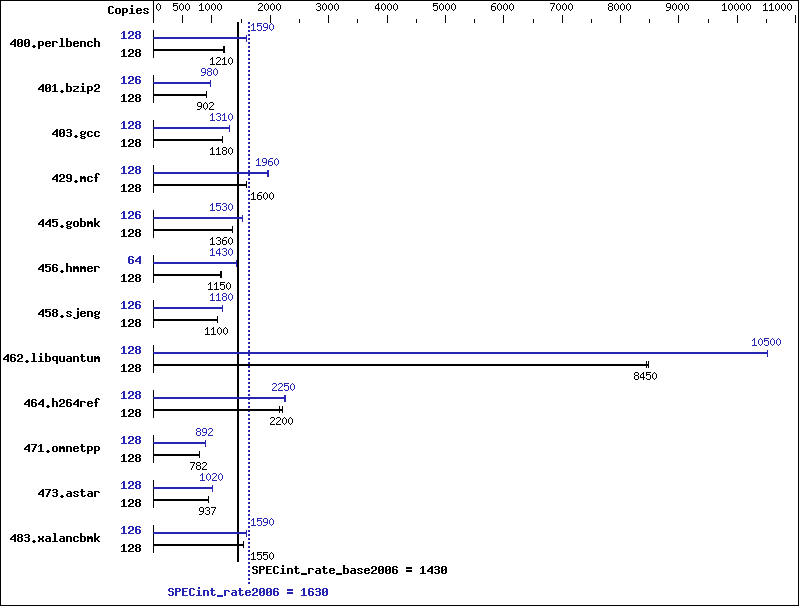

Benchmark results graph
Hardware
CPU Name: SPARC64 X
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 64 cores, 4 chips, 16 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 16 BBs; each BB contains 2 or 4 CPU chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 24 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 512 GB (32 x 16 GB 2Rx4 PC3L-12800R-11, ECC)
Disk Subsystem: 1 x 600 GB SAS, 10025 RPM Toshiba MBF2600RC
Other Hardware: None
Software
Operating System: Solaris 11.1.6.4.0
Compiler: C/C++: Version 12.3 of Oracle Solaris Studio,
1/13 Platform Specific Enhancement
Auto Parallel: No
File System: zfs and tmpfs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 128 1040 1200 1029 1220 1030 1210 128 785 1590 785 1590 784 1600
401.bzip2 128 1370 902 1369 902 1371 901 126 1240 981 1240 980 1241 980
403.gcc 128 877 1170 876 1180 874 1180 128 787 1310 787 1310 789 1310
429.mcf 128 730 1600 733 1590 732 1600 128 594 1960 594 1970 597 1960
445.gobmk 128 987 1360 988 1360 987 1360 126 867 1530 866 1530 866 1530
456.hmmer 128 1036 1150 1026 1160 1036 1150 64 419 1430 419 1430 418 1430
458.sjeng 128 1409 1100 1404 1100 1406 1100 126 1292 1180 1293 1180 1293 1180
462.libquantum 128 314 8450 313 8470 314 8450 128 252 10500 252 10500 252 10500
464.h264ref 128 1285 2200 1316 2150 1286 2200 128 1259 2250 1257 2250 1258 2250
471.omnetpp 128 1022 783 1023 782 1024 781 128 897 892 897 892 896 892
473.astar 128 958 937 959 937 958 938 128 882 1020 883 1020 884 1020
483.xalancbmk 128 571 1550 573 1540 571 1550 126 547 1590 547 1590 547 1590

Submit Notes

 Processes were assigned to specific processors using 'pbind' commands.
 The config file option 'submit' was used, along with a list of
 processors in the 'BIND' variable, to generate the pbind commands.
 (For details, please see the config file.)

Operating System Notes

 Shell Environments:
    ulimit -s 131072 was used to limit the space consumed by the stack
    (and therefore make more space available to the heap).

    The "webconsole" service was turned off using svcadm disable webconsole.

 System Tunables:
 (/etc/system parameters)
    lpg_alloc_prefer=1
      Indicates that extra effort should be taken to ensure that pages are
      created in the nearby lgroup (NUMA location).

Platform Notes

 Sysinfo program /export/cpu2006-v1.2/config/sysinfo.rev6818
 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191
 running on 4S-LGA05-D0 Mon Apr 22 19:33:31 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /usr/sbin/psrinfo
    SPARC64-X (chipid 0, clock 3000 MHz)
    SPARC64-X (chipid 1, clock 3000 MHz)
    SPARC64-X (chipid 2, clock 3000 MHz)
    SPARC64-X (chipid 3, clock 3000 MHz)
    4 chips
    128 threads
    3000 MHz

 From kstat:       64 cores

 From prtconf: 522496 Megabytes

 /etc/release:
      Oracle Solaris 11.1 SPARC
 uname -a:
    SunOS 4S-LGA05-D0 5.11 11.1 sun4v sparc sun4v

 disk: df -h  $SPEC
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export           547G   6.5G       466G     2%    /export

 (End of data from sysinfo program)

General Notes

 output_root was used to put run directories in /tmp/cpu2006 (tmpfs).

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xtarget=sparc64x   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=std   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

 -fast   -xtarget=sparc64x   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -lfast   -M /usr/lib/ld/map.bssalign

Base Other Flags

C benchmarks:

 -xjobs=16

C++ benchmarks:

 -xjobs=16

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xtarget=sparc64vii   -xipo=1   -xalias_level=std   -xrestrict   -xprefetch=no%auto   -xO4   -xcache=32/128/4/1:768/128/24/1   -lfast
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xalias_level=strong   -xprefetch=latx:0.2   -W2,-Ainline:rs=1000   -W2,-Ainline:cs=500   -W2,-Ainline:inc=60   -lfast
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xO4   -xipo=2   -xprefetch_level=2   -xprefetch_auto_type=indirect_array_access
429.mcf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=1   -xprefetch=latx:0.2   -xprefetch_auto_type=indirect_array_access
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xalias_level=std   -xrestrict   -xprefetch=latx:0.2
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=1   -xalias_level=std   -xcache=32/128/4/1:768/128/24/1
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch=no%auto   -Wc,-Qlu-en=1-t=4
462.libquantum:  -fast   -xtarget=T5   -xpagesize=256M   -xarch=sparcvis2   -xcache=32/128/4/1:768/128/24/1   -xipo=2   -xalias_level=std   -xprefetch_level=2   -Wc,-Qlu-en=1-t=4   -Wc,-Qiselect-funcalign=64   -M /export/cpu2006-v1.2/mapfiles/map.256M.align   -lbsdmalloc   -M /usr/lib/ld/map.bssalign
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xtarget=sparc64vii   -xipo=1   -xalias_level=any   -xprefetch=no%auto   -xcache=32/128/4/1:768/128/24/1

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=1   -xalias_level=compatible   -xunroll=2   -xchip=generic   -xprefetch_level=3   -library=stlport4   -lfast
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=0   -xalias_level=compatible   -xunroll=6   -xprefetch=latx:0.8   -xprefetch_auto_type=indirect_array_access   -library=stlport4   -lfast
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=T5   -xpagesize=256M   -xarch=sparcvis2   -xcache=32/128/4/1:768/128/24/1   -xalias_level=compatible   -xdepend   -xipo=2   -library=stlport4   -lfast

Peak Other Flags

C benchmarks:

 -xjobs=16

C++ benchmarks:

 -xjobs=16

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-SPARC64X.20130522.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-SPARC64X.20130522.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Thu Jul 24 15:25:09 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 4 June 2013.
