| CPU2006 license: | 4 | Test date: | Mar-2013 |
|---|---|---|---|
| Test sponsor: | SGI | Hardware Availability: | Nov-2012 |
| Tested by: | SGI | Software Availability: | Feb-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-4650 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.30 GHz |
| CPU MHz: | 2700 |
| FPU: | Integrated |
| CPU(s) enabled: | 32 cores, 4 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 512 GB (32 x 16 GB 2Rx4 PC3-12800R-11, ECC) |
| Disk Subsystem: | 3.3 TB RAID 0 6 x 600 GB, SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) kernel 3.0.42-0.7-default |
| Compiler: | C/C++: Version 13.0.0.133 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

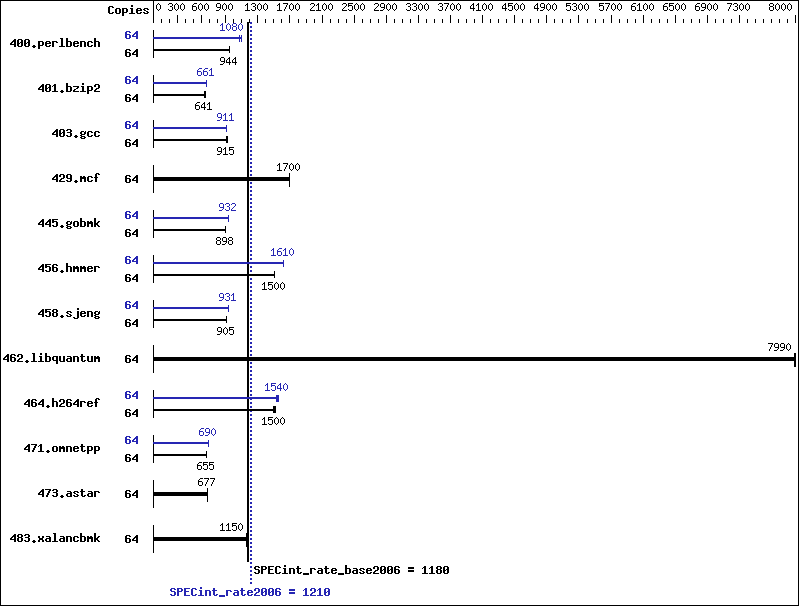

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 64 | 663 | 943 | 662 | 945 | 662 | 944 | 64 | 581 | 1080 | 571 | 1090 | 582 | 1070 |
| 401.bzip2 | 64 | 961 | 642 | 963 | 641 | 968 | 638 | 64 | 934 | 661 | 935 | 660 | 934 | 661 |
| 403.gcc | 64 | 562 | 916 | 563 | 915 | 565 | 912 | 64 | 567 | 909 | 565 | 911 | 563 | 914 |
| 429.mcf | 64 | 344 | 1700 | 344 | 1700 | 343 | 1700 | 64 | 344 | 1700 | 344 | 1700 | 343 | 1700 |
| 445.gobmk | 64 | 748 | 898 | 747 | 898 | 747 | 898 | 64 | 718 | 935 | 722 | 930 | 721 | 932 |
| 456.hmmer | 64 | 396 | 1510 | 398 | 1500 | 397 | 1500 | 64 | 370 | 1620 | 370 | 1610 | 370 | 1610 |
| 458.sjeng | 64 | 856 | 905 | 855 | 905 | 855 | 906 | 64 | 832 | 931 | 831 | 931 | 832 | 931 |
| 462.libquantum | 64 | 166 | 7990 | 166 | 7990 | 166 | 8000 | 64 | 166 | 7990 | 166 | 7990 | 166 | 8000 |
| 464.h264ref | 64 | 941 | 1500 | 933 | 1520 | 946 | 1500 | 64 | 913 | 1550 | 917 | 1540 | 923 | 1530 |
| 471.omnetpp | 64 | 610 | 655 | 611 | 655 | 611 | 655 | 64 | 580 | 690 | 579 | 691 | 581 | 688 |
| 473.astar | 64 | 663 | 678 | 664 | 677 | 664 | 677 | 64 | 663 | 678 | 664 | 677 | 664 | 677 |
| 483.xalancbmk | 64 | 382 | 1150 | 383 | 1150 | 383 | 1150 | 64 | 382 | 1150 | 383 | 1150 | 383 | 1150 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
Sysinfo program /store/cma/cpu2006-v1.2/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on cy020 Sun Mar 10 16:51:38 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-4650 0 @ 2.70GHz 4 "physical id"s (chips) 64 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 16 physical 0: cores 0 1 2 3 4 5 6 7 physical 1: cores 0 1 2 3 4 5 6 7 physical 2: cores 0 1 2 3 4 5 6 7 physical 3: cores 0 1 2 3 4 5 6 7 cache size : 20480 KB From /proc/meminfo MemTotal: 529360176 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 2 sgi-accelerate-release: SGI Accelerate 1.5, Build 707r85.sles11sp2-1302142007 sgi-foundation-release: SGI Foundation Software 2.7, Build 707r85.sles11sp2-1302142007 sgi-mpi-release: SGI MPI 1.5, Build 707r85.sles11sp2-1302142007 sgi-propack-release: SGI ProPack 706 for Linux, Build 706rp51.sles11sp2-1210312107 sgi-release: SGI Performance Suite 1.5, Build 707r85.sles11sp2-1302142007 sgi-upc-release: SGI UPC 1.5, Build 707r85.sles11sp2-1302142007 uname -a: Linux cy020 3.0.42-0.7-default #1 SMP Tue Oct 9 11:58:45 UTC 2012 (a8dc443) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Mar 4 10:31 last=S SPEC is set to: /store/cma/cpu2006-v1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sdc1 xfs 3.3T 834G 2.5T 25% /scratch Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode' (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/store/cma/cpu2006-v1.2/libs/32:/store/cma/cpu2006-v1.2/libs/64:/store/cma/cpu2006-v1.2/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xAVX -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xAVX -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
