CPU2006 license: | 9046 | Test date: | Mar-2013 |
---|---|---|---|
Test sponsor: | Sugon | Hardware Availability: | Dec-2012 |
Tested by: | Sugon | Software Availability: | Jun-2012 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 6380 |
CPU Characteristics: | AMD Turbo CORE technology up to 3.40 GHz |
CPU MHz: | 2500 |
FPU: | Integrated |
CPU(s) enabled: | 32 cores, 2 chips, 16 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 512 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core |
Secondary Cache: | 16 MB I+D on chip per chip, 2 MB shared / 2 cores |
L3 Cache: | 16 MB I+D on chip per chip, 8 MB shared / 8 cores |
Other Cache: | None |
Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC) |
Disk Subsystem: | 2 x 1000 GB SATA, 7200 RPM, RAID 1 |
Other Hardware: | None |
Software | |
---|---|
Operating System: | CentOS 6.3, Kernel 2.6.32-220.el6.x86_64 |
Compiler: | C/C++/Fortran: Version 4.5.2 of x86 Open64 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

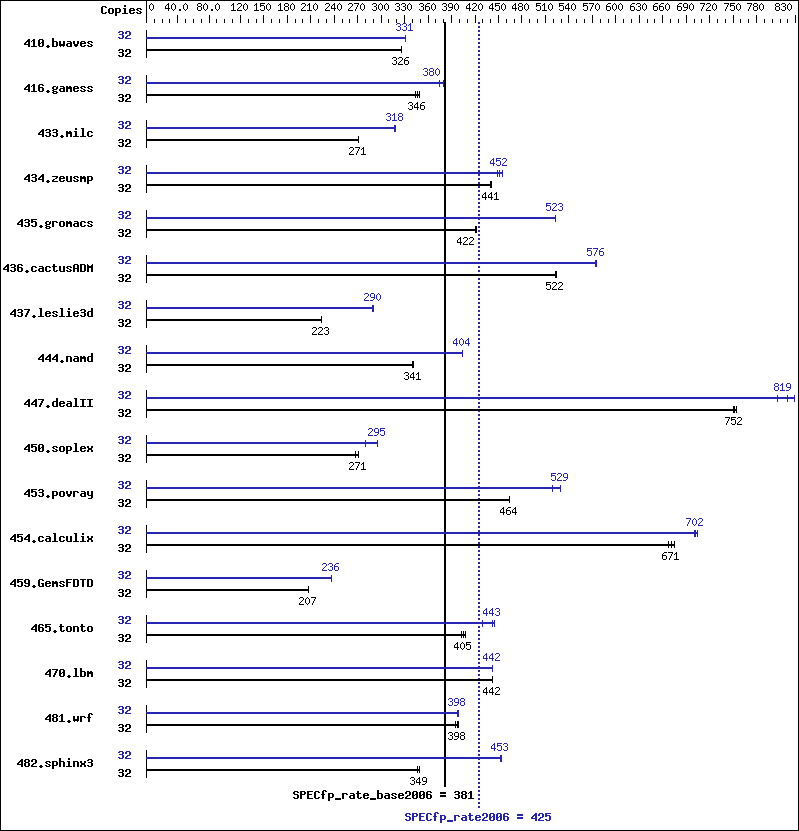

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 32 | 1336 | 326 | 1336 | 326 | 1336 | 325 | 32 | 1313 | 331 | 1313 | 331 | 1314 | 331 |
416.gamess | 32 | 1811 | 346 | 1798 | 348 | 1822 | 344 | 32 | 1672 | 375 | 1649 | 380 | 1650 | 380 |
433.milc | 32 | 1084 | 271 | 1085 | 271 | 1084 | 271 | 32 | 925 | 318 | 924 | 318 | 925 | 318 |
434.zeusmp | 32 | 660 | 441 | 659 | 442 | 662 | 440 | 32 | 650 | 448 | 645 | 452 | 640 | 455 |
435.gromacs | 32 | 542 | 422 | 542 | 422 | 543 | 421 | 32 | 437 | 523 | 437 | 523 | 437 | 523 |
436.cactusADM | 32 | 730 | 524 | 732 | 522 | 732 | 522 | 32 | 664 | 576 | 664 | 576 | 667 | 574 |
437.leslie3d | 32 | 1346 | 223 | 1346 | 223 | 1345 | 224 | 32 | 1036 | 290 | 1039 | 289 | 1034 | 291 |
444.namd | 32 | 755 | 340 | 753 | 341 | 753 | 341 | 32 | 636 | 403 | 635 | 404 | 635 | 404 |
447.dealII | 32 | 487 | 752 | 486 | 754 | 488 | 750 | 32 | 454 | 807 | 447 | 819 | 442 | 828 |
450.soplex | 32 | 1000 | 267 | 986 | 271 | 986 | 271 | 32 | 954 | 280 | 904 | 295 | 904 | 295 |
453.povray | 32 | 367 | 464 | 367 | 464 | 367 | 464 | 32 | 328 | 519 | 322 | 529 | 322 | 529 |
454.calculix | 32 | 391 | 674 | 395 | 668 | 394 | 671 | 32 | 377 | 701 | 376 | 702 | 375 | 704 |
459.GemsFDTD | 32 | 1641 | 207 | 1643 | 207 | 1642 | 207 | 32 | 1436 | 236 | 1437 | 236 | 1438 | 236 |
465.tonto | 32 | 777 | 405 | 773 | 407 | 782 | 403 | 32 | 712 | 443 | 733 | 429 | 709 | 444 |
470.lbm | 32 | 995 | 442 | 995 | 442 | 995 | 442 | 32 | 995 | 442 | 994 | 442 | 993 | 443 |
481.wrf | 32 | 904 | 395 | 897 | 398 | 898 | 398 | 32 | 895 | 399 | 898 | 398 | 898 | 398 |
482.sphinx3 | 32 | 1799 | 347 | 1788 | 349 | 1788 | 349 | 32 | 1374 | 454 | 1378 | 452 | 1376 | 453 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst Set vm/nr_hugepages=28672 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "896" LD_LIBRARY_PATH = "/home/speccpu/amd1206-rate-libs-revA/32:/home/speccpu/amd1206-rate-libs-revA/64" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64 Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
-Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso -march=bdver1 |
-Ofast -static -CG:load_exe=0 -OPT:malloc_alg=1 -INLINE:aggressive=on -HP:bd=2m:heap=2m -D__OPEN64_FAST_SET -march=bdver1 |
-Ofast -LNO:blocking=off -LNO:simd_peel_align=on -OPT:rsqrt=2 -OPT:unroll_size=256 -HP:bd=2m:heap=2m -mso -march=bdver1 |
-Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso -march=bdver1 -LNO:blocking=off -LNO:simd_peel_align=on -OPT:rsqrt=2 -OPT:unroll_size=256 |
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
