SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC M10-4S

CPU2006 license: 19 Test date: Dec-2012
Test sponsor: Fujitsu Hardware Availability: Mar-2013
Tested by: Fujitsu Software Availability: Mar-2013

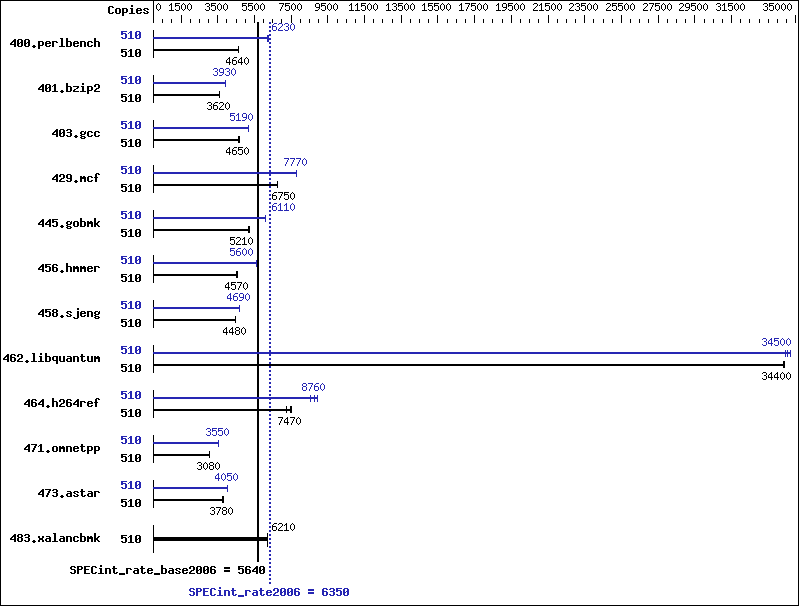

Benchmark results graph
Hardware
CPU Name: SPARC64 X
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 256 cores, 16 chips, 16 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 16 BBs; each BB contains 2 or 4 CPU chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 24 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 2 TB (128 x 16 GB 2Rx4 PC3L-12800R-11, ECC,
running at 1600 MHz)
Disk Subsystem: 1 x 600 GB SAS, 10025 RPM Toshiba MBF2600RC
Other Hardware: None
Software
Operating System: Oracle Solaris 11.1
Compiler: C/C++: Version 12.3 of Oracle Solaris Studio,
1/13 Platform Specific Enhancement
Auto Parallel: No
File System: zfs and tmpfs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 510 1074 4640 1075 4640 1075 4630 510 798 6240 800 6230 800 6230
401.bzip2 510 1359 3620 1359 3620 1358 3620 510 1254 3930 1253 3930 1253 3930
403.gcc 510 880 4660 882 4650 884 4650 510 790 5200 790 5190 792 5180
429.mcf 510 689 6750 689 6750 690 6750 510 598 7770 598 7770 598 7780
445.gobmk 510 1027 5210 1026 5210 1028 5200 510 875 6110 873 6120 876 6110
456.hmmer 510 1042 4570 1042 4570 1046 4550 510 850 5600 850 5600 849 5600
458.sjeng 510 1378 4480 1378 4480 1376 4490 510 1316 4690 1316 4690 1316 4690
462.libquantum 510 307 34400 308 34300 307 34400 510 304 34700 307 34500 306 34500
464.h264ref 510 1502 7520 1552 7270 1511 7470 510 1289 8760 1317 8570 1259 8960
471.omnetpp 510 1036 3080 1036 3080 1036 3080 510 898 3550 898 3550 898 3550
473.astar 510 947 3780 947 3780 945 3790 510 883 4050 883 4050 883 4050
483.xalancbmk 510 567 6210 567 6210 566 6210 510 567 6210 567 6210 566 6210

Submit Notes

 Processes were assigned to specific processors using 'pbind' commands.
 The config file option 'submit' was used, along with a list of
 processors in the 'BIND' variable, to generate the pbind commands.
 (For details, please see the config file.)

Operating System Notes

 Shell Environments:
    ulimit -s 131072 was used to limit the space consumed by the stack
    (and therefore make more space available to the heap).

    The "webconsole" service was turned off using svcadm disable webconsole.

 System Tunables:
 (/etc/system parameters)
    lpg_alloc_prefer=1
      Indicates that extra effort should be taken to ensure that pages are
      created in the nearby lgroup (NUMA location).

Platform Notes

 Sysinfo program /export/cpu2006-v1.2/config/sysinfo.rev6818
 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191
 running on 4S-710-D0 Sat Dec 22 09:14:40 2012

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /usr/sbin/psrinfo
    SPARC64-X (chipid 0, clock 3000 MHz)
    SPARC64-X (chipid 1, clock 3000 MHz)
    SPARC64-X (chipid 10, clock 3000 MHz)
    SPARC64-X (chipid 11, clock 3000 MHz)
    SPARC64-X (chipid 12, clock 3000 MHz)
    SPARC64-X (chipid 13, clock 3000 MHz)
    SPARC64-X (chipid 14, clock 3000 MHz)
    SPARC64-X (chipid 15, clock 3000 MHz)
    SPARC64-X (chipid 2, clock 3000 MHz)
    SPARC64-X (chipid 3, clock 3000 MHz)
    SPARC64-X (chipid 4, clock 3000 MHz)
    SPARC64-X (chipid 5, clock 3000 MHz)
    SPARC64-X (chipid 6, clock 3000 MHz)
    SPARC64-X (chipid 7, clock 3000 MHz)
    SPARC64-X (chipid 8, clock 3000 MHz)
    SPARC64-X (chipid 9, clock 3000 MHz)
    16 chips
    512 threads
    3000 MHz

 From kstat:      256 cores

 From prtconf: 2091520 Megabytes

 /etc/release:
      Oracle Solaris 11.1 SPARC
 uname -a:
    SunOS 4S-710-D0 5.11 11.1 sun4v sparc sun4v

 disk: df -h  $SPEC
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export           547G   5.5G       466G     2%    /export

 (End of data from sysinfo program)

General Notes

 output_root was used to put run directories in /tmp/cpu2006 (tmpfs).

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xtarget=sparc64x   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_auto_type=indirect_array_access   -xalias_level=std   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

 -fast   -xtarget=sparc64x   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_auto_type=indirect_array_access   -xalias_level=compatible   -library=stlport4   -lfast   -M /usr/lib/ld/map.bssalign

Base Other Flags

C benchmarks:

 -xjobs=16

C++ benchmarks:

 -xjobs=16

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xtarget=sparc64vii   -xipo=1   -xalias_level=std   -xrestrict   -xprefetch=no%auto   -xO4   -lfast
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xalias_level=strong   -xprefetch_auto_type=indirect_array_access   -xprefetch=latx:0.2   -W2,-Ainline:rs=1000   -W2,-Ainline:cs=500   -W2,-Ainline:inc=60   -lfast
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xO4   -xipo=2   -xprefetch_level=2   -xprefetch=latx:0.2
429.mcf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=1   -xprefetch_auto_type=indirect_array_access   -xprefetch=latx:0.2
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xalias_level=std   -xrestrict   -xprefetch=latx:0.2
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=1   -xalias_level=std
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch=no%auto
462.libquantum:  -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_level=2   -xprefetch=latx:0.2   -M /usr/lib/ld/map.bssalign
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xtarget=sparc64vii   -xipo=1   -xalias_level=any   -xprefetch=no%auto

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=1   -xalias_level=compatible   -xunroll=2   -xchip=generic   -library=stlport4   -lfast
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=sparc64x   -fma=fused   -xpagesize=4M   -xipo=0   -xalias_level=compatible   -xunroll=6   -xprefetch_auto_type=indirect_array_access   -xprefetch=latx:0.8   -library=stlport4   -lfast
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

 -xjobs=16

C++ benchmarks:

 -xjobs=16

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-SPARC64X.20130409.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-SPARC64X.20130409.xml.
