SPEC® CINT2006 Result

Lenovo Group Limited

M78
AMD A10-5700

SPECint®_rate2006 = 85.8

SPECint_rate_base2006 = 75.4

CPU2006 license:	9017	Test date:	Feb-2013
Test sponsor:	Lenovo Group Limited	Hardware Availability:	Jul-2012
Tested by:	Lenovo Group Limited	Software Availability:	Aug-2012

Hardware
CPU Name:	AMD A10-5700
CPU Characteristics:	AMD Turbo CORE technology up to 4.0 GHz
CPU MHz:	3400
FPU:	Integrated
CPU(s) enabled:	4 cores, 1 chip, 4 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	128 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core
Secondary Cache:	4 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	8 GB (2 x 4 GB 2Rx8 PC3-12800U-11)
Disk Subsystem:	1 x 500 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 6.2, Kernel 2.6.32-220.el6.x86_64
Compiler:	C/C++: Version 4.5.2 of x86 Open64 Compiler Suite (from AMD)
Auto Parallel:	No
File System:	ext4
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap 10.0 32-bit Library for Linux

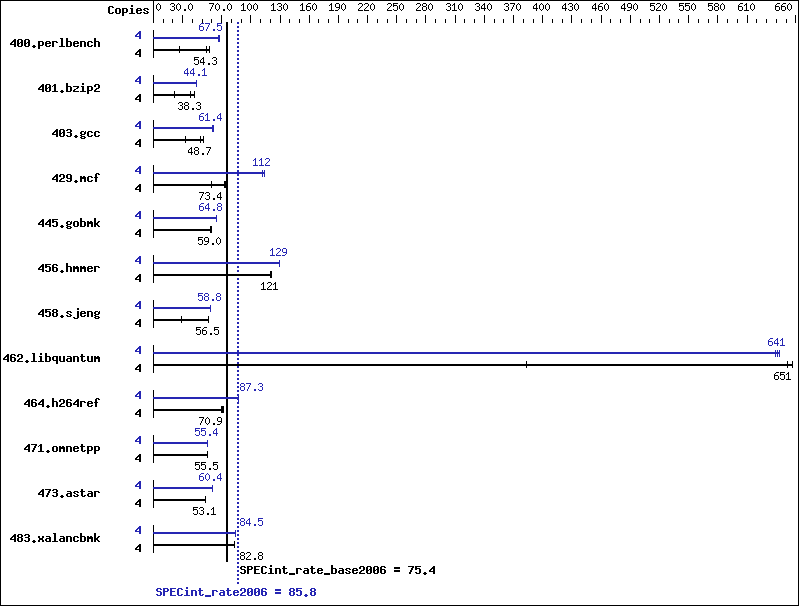

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	4	1458	26.8	719	54.3	681	57.4	4	581	67.3	577	67.7	579	67.5
401.bzip2	4	1763	21.9	1007	38.3	913	42.3	4	876	44.1	880	43.9	872	44.3
403.gcc	4	988	32.6	661	48.7	623	51.7	4	533	60.4	525	61.4	524	61.4
429.mcf	4	617	59.1	494	73.8	497	73.4	4	320	114	325	112	326	112
445.gobmk	4	711	59.0	709	59.2	711	59.0	4	647	64.8	647	64.8	647	64.8
456.hmmer	4	307	121	309	121	311	120	4	289	129	289	129	289	129
458.sjeng	4	1706	28.4	856	56.6	856	56.5	4	823	58.8	824	58.8	824	58.8
462.libquantum	4	216	383	127	651	126	656	4	130	639	129	644	129	641
464.h264ref	4	1248	70.9	1258	70.3	1238	71.5	4	1012	87.5	1016	87.1	1014	87.3
471.omnetpp	4	451	55.5	451	55.4	451	55.5	4	451	55.4	452	55.3	450	55.6
473.astar	4	527	53.3	529	53.1	528	53.1	4	466	60.2	465	60.4	465	60.4
483.xalancbmk	4	333	82.9	333	82.8	334	82.7	4	327	84.4	326	84.5	327	84.5

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Transparent huge pages were enabled for this run (OS default)

Huge pages were not configured for this run.

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "0"
LD_LIBRARY_PATH = "/usr/cpu2006/amd1206-rate-libs-revA/32:/usr/cpu2006/amd1206-rate-libs-revA/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-Ofast -CG:local_sched_alg=1 -INLINE:aggressive=ON -IPA:plimit=8000 -IPA:small_pu=100 -HP:bd=2m:heap=2m -mso -LNO:prefetch=2 -march=bdver1

C++ benchmarks:

-Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -D__OPEN64_FAST_SET -march=bdver1 -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
473.astar:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:prefetch=2 -LNO:opt=0 -IPA:plimit=20000 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -WOPT:if_conv=0 -WOPT:sib=on -CG:local_sched_alg=1 -CG:unroll_fb_req=on -CG:movext_icmp=off -HP:bd=2m:heap=2m -march=bdver1 -GRA:aggr_loop_splitting=off -GRA:loop_splitting=off
401.bzip2:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:prefetch=2 -LNO:pf2=0 -OPT:alias=disjoint -OPT:goto=off -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m -march=bdver2
403.gcc:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:trip_count=256 -CG:cmp_peep=on -CG:pre_minreg_level=2 -m32 -HP:bdt=2m:heap=2m -GRA:unspill=on -IPA:small_pu=200 -WOPT:sib=on -march=bdver2 -mno-fma4
429.mcf:	-O3 -OPT:unroll_times_max=5 -ipa -INLINE:aggressive=on -CG:gcm=off -CG:dsched=on -GRA:prioritize_by_density=on -m32 -HP:bdt=2m:heap=2m -mso -march=bdver1
445.gobmk:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:unroll_size=256 -OPT:unroll_times_max=8 -OPT:keep_ext=on -IPA:plimit=750 -IPA:min_hotness=300 -IPA:pu_reorder=1 -LNO:ignore_feedback=off -WOPT:if_conv=2 -HP:bd=2m:heap=2m -march=bdver1
456.hmmer:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:prefetch=2 -OPT:alias=disjoint -OPT:unroll_times_max=16 -OPT:unroll_size=512 -OPT:unroll_level=2 -OPT:keep_ext=on -CG:cflow=0 -CG:cmp_peep=on -CG:pre_local_sched=off -HP:bdt=2m:heap=2m -CG:p2align=0 -CG:load_exe=3 -CG:dsched=on -march=bdver1
458.sjeng:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -CG:ptr_load_use=0 -CG:divrem_opt=on -CG:movext_icmp=off -CG:locs_best=on -LNO:full_unroll=10 -IPA:pu_reorder=2 -HP:heap=2m:bd=2m -WOPT:sib=on -march=bdver1
462.libquantum:	-Ofast -mso -OPT:unroll_size=512 -OPT:unroll_times_max=16 -LNO:prefetch=2 -LNO:prefetch_ahead=4 -LNO:pf2=0 -CG:local_sched_alg=1 -CG:p2align=0 -INLINE:aggressive=ON -IPA:plimit=15000 -IPA:small_pu=100 -HP:bdt=2m:heap=2m,limit=300 -march=bdver2
464.h264ref:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:unroll_size=256 -OPT:unroll_times_max=2 -IPA:plimit=20000 -OPT:alias=disjoint -CG:ptr_load_use=0 -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m -march=bdver1

C++ benchmarks:

471.omnetpp:	-Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -WOPT:sib=on -D__OPEN64_FAST_SET -march=bdver2 -mno-fma4 -L/root/work/libraries/SmartHeap-10/lib -lsmartheap
473.astar:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -WOPT:if_conv=0 -WOPT:sib=on -CG:divrem_opt=on -CG:p2align=1 -CG:dsched=on -GRA:optimize_boundary=on -OPT:alias=disjoint -INLINE:aggressive=on -IPA:small_pu=3000 -IPA:plimit=3000 -HP:bdt=2m:heap=2m -march=bdver1
483.xalancbmk:	-Ofast -LNO:prefetch=2 -OPT:unroll_size=512 -OPT:unroll_times_max=8 -D__OPEN64_FAST_SET -INLINE:aggressive=on -m32 -CG:cmp_peep=on -CG:local_sched=off -CG:p2align=1 -GRA:unspill=on -TENV:frame_pointer=off -fno-emit-exceptions -march=bdver2 -mno-fma4 -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-I.html,
http://www.spec.org/cpu2006/flags/amd-LENOVO-platform-rate-revC-I.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-I.xml,
http://www.spec.org/cpu2006/flags/amd-LENOVO-platform-rate-revC-I.xml.
