CPU2006 license: | 9001 | Test date: | Feb-2013 |
---|---|---|---|
Test sponsor: | Itautec | Hardware Availability: | Jun-2012 |
Tested by: | Itautec | Software Availability: | Jun-2012 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2603 |
CPU Characteristics: | |
CPU MHz: | 1800 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 10 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 64 GB (16 x 4 GB 2Rx8 PC3-10600R-9, ECC, running at 1066 MHz and CL7) |
Disk Subsystem: | 1000 GB, SATA-3, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server Release 6.3, 2.6.32-279.el6.x86_64 |
Compiler: | C/C++: Version 12.1.0 of Intel Compiler XE Build 20111011 |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 |

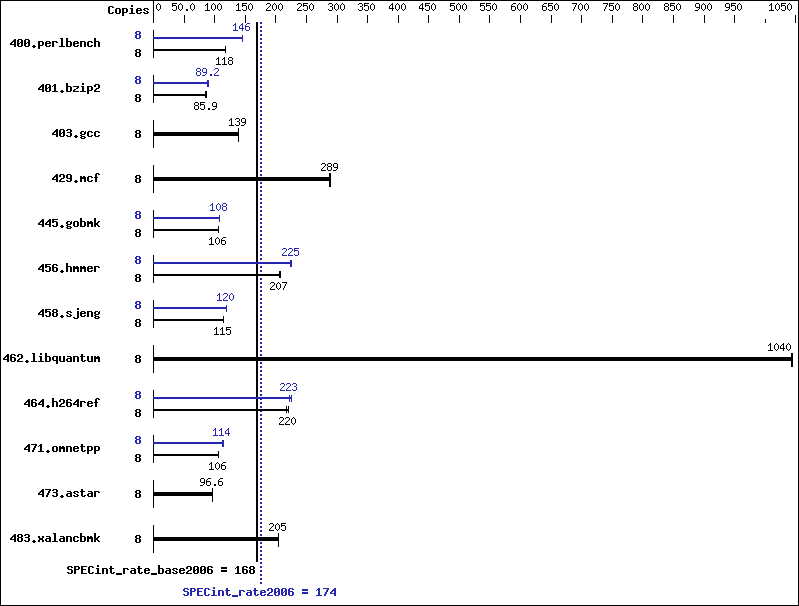

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 663 | 118 | 663 | 118 | 661 | 118 | 8 | 535 | 146 | 534 | 146 | 535 | 146 |
401.bzip2 | 8 | 900 | 85.8 | 898 | 86.0 | 899 | 85.9 | 8 | 865 | 89.2 | 865 | 89.3 | 867 | 89.0 |
403.gcc | 8 | 462 | 139 | 462 | 139 | 462 | 139 | 8 | 462 | 139 | 462 | 139 | 462 | 139 |
429.mcf | 8 | 254 | 287 | 253 | 289 | 253 | 289 | 8 | 254 | 287 | 253 | 289 | 253 | 289 |
445.gobmk | 8 | 790 | 106 | 791 | 106 | 790 | 106 | 8 | 778 | 108 | 777 | 108 | 779 | 108 |
456.hmmer | 8 | 361 | 207 | 363 | 205 | 359 | 208 | 8 | 332 | 225 | 332 | 225 | 332 | 225 |
458.sjeng | 8 | 844 | 115 | 844 | 115 | 845 | 115 | 8 | 810 | 120 | 810 | 120 | 809 | 120 |
462.libquantum | 8 | 159 | 1050 | 159 | 1040 | 159 | 1040 | 8 | 159 | 1050 | 159 | 1040 | 159 | 1040 |
464.h264ref | 8 | 803 | 220 | 817 | 217 | 804 | 220 | 8 | 784 | 226 | 794 | 223 | 795 | 223 |
471.omnetpp | 8 | 472 | 106 | 472 | 106 | 473 | 106 | 8 | 441 | 113 | 440 | 114 | 439 | 114 |
473.astar | 8 | 584 | 96.1 | 582 | 96.6 | 579 | 97.0 | 8 | 584 | 96.1 | 582 | 96.6 | 579 | 97.0 |
483.xalancbmk | 8 | 269 | 205 | 270 | 204 | 269 | 205 | 8 | 269 | 205 | 270 | 204 | 269 | 205 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run. Large pages were not enabled for this run
Sysinfo program /home/rcaneca/cpu2006/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ 8787f7622badcf24e01c368b1db4377c running on mx225 Mon Feb 18 17:38:29 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2603 0 @ 1.80GHz 2 "physical id"s (chips) 8 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 4 siblings : 4 physical 0: cores 0 1 2 3 physical 1: cores 0 1 2 3 cache size : 10240 KB From /proc/meminfo MemTotal: 65917564 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.3 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.3 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.3 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux mx225 2.6.32-279.el6.x86_64 #1 SMP Wed Jun 13 18:24:36 EDT 2012 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Feb 18 17:28 SPEC is set to: /home/rcaneca/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_mx225-lv_home ext4 836G 2.2G 791G 1% /home (End of data from sysinfo program)
This result was measured on the Servidor Itautec MX225. The Servidor Itautec MX215 and the Servidor Itautec MX225 are electronically equivalent.
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/home/rcaneca/sh/SmartHeap_8.1/lib -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | basepeak = yes |
429.mcf: | basepeak = yes |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/rcaneca/sh/SmartHeap_8.1/lib -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
