| CPU2006 license: | 3175 | Test date: | Feb-2013 |
|---|---|---|---|
| Test sponsor: | Huawei | Hardware Availability: | Oct-2012 |
| Tested by: | Huawei | Software Availability: | Oct-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-8867L |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.53 GHz |
| CPU MHz: | 2133 |
| FPU: | Integrated |
| CPU(s) enabled: | 40 cores, 4 chips, 10 cores/chip |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 1 TB (64 x 16 GB 4Rx4 PC3-10600R-9, ECC, running at 1066 MHz) |
| Disk Subsystem: | 1 x 500 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 13.0.0.079 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

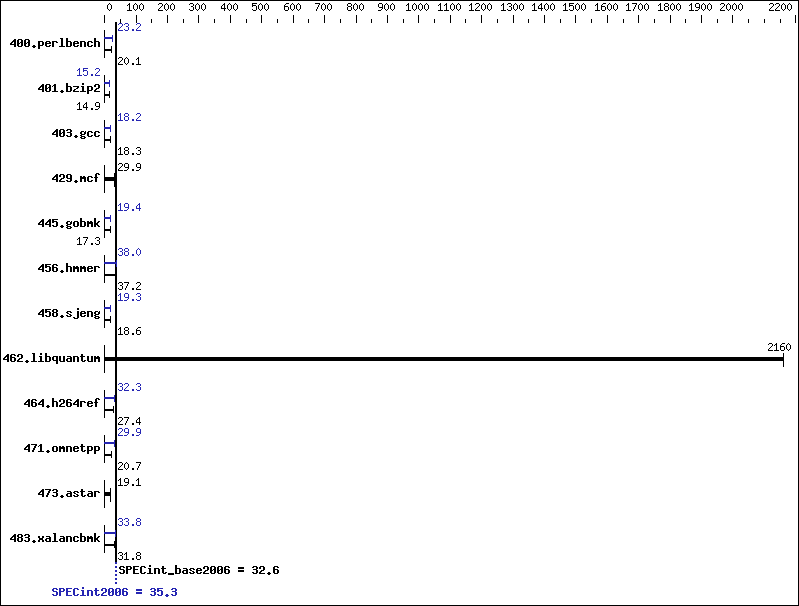

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 486 | 20.1 | 487 | 20.1 | 486 | 20.1 | 420 | 23.2 | 421 | 23.2 | 420 | 23.3 |
| 401.bzip2 | 650 | 14.9 | 648 | 14.9 | 649 | 14.9 | 634 | 15.2 | 635 | 15.2 | 635 | 15.2 |
| 403.gcc | 438 | 18.4 | 439 | 18.3 | 440 | 18.3 | 442 | 18.2 | 442 | 18.2 | 442 | 18.2 |
| 429.mcf | 305 | 29.9 | 305 | 29.9 | 308 | 29.6 | 305 | 29.9 | 305 | 29.9 | 308 | 29.6 |
| 445.gobmk | 604 | 17.4 | 605 | 17.3 | 605 | 17.3 | 538 | 19.5 | 540 | 19.4 | 540 | 19.4 |
| 456.hmmer | 251 | 37.2 | 251 | 37.2 | 251 | 37.2 | 245 | 38.0 | 245 | 38.0 | 245 | 38.0 |
| 458.sjeng | 650 | 18.6 | 649 | 18.6 | 650 | 18.6 | 626 | 19.3 | 625 | 19.3 | 626 | 19.3 |
| 462.libquantum | 9.59 | 2160 | 9.59 | 2160 | 9.59 | 2160 | 9.59 | 2160 | 9.59 | 2160 | 9.59 | 2160 |
| 464.h264ref | 806 | 27.5 | 807 | 27.4 | 808 | 27.4 | 684 | 32.3 | 684 | 32.4 | 684 | 32.3 |
| 471.omnetpp | 311 | 20.1 | 300 | 20.8 | 301 | 20.7 | 209 | 29.9 | 206 | 30.3 | 209 | 29.8 |
| 473.astar | 367 | 19.1 | 367 | 19.1 | 365 | 19.2 | 367 | 19.1 | 367 | 19.1 | 365 | 19.2 |
| 483.xalancbmk | 217 | 31.8 | 218 | 31.7 | 217 | 31.8 | 204 | 33.8 | 204 | 33.8 | 204 | 33.9 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration: Intel Hyper-Threading set to Disabled Power Technology set to Custom, Performance/Watt set to Traditional Sysinfo program /home/cpu2006/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ 5569a0425e2ad530534e4c79a46e4d28 running on RH5885-24 Tue Feb 5 10:44:36 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7-L8867 @ 2.13GHz 4 "physical id"s (chips) 40 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 10 siblings : 10 physical 0: cores 0 1 2 8 9 16 17 18 24 25 physical 1: cores 0 1 2 8 9 16 17 18 24 25 physical 2: cores 0 1 2 8 9 16 17 18 24 25 physical 3: cores 0 1 2 8 9 16 17 18 24 25 cache size : 30720 KB From /proc/meminfo MemTotal: 1058808572 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.2 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux RH5885-24 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Feb 5 10:40 SPEC is set to: /home/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_rh588524-lv_home ext4 409G 14G 375G 4% /home Additional information from dmidecode: BIOS American Megatrends Inc. RGPUC-BIOS-V023 12/17/2012 Memory: 64x 16 GB 64x Hyundai HMT42GR7BMR4C-H9 16 GB 1067 MHz 4 rank (End of data from sysinfo program) Descriptions about memory generated by sysinfo are not correct, only 64 DIMMs are installed not 128, see descriptions below. Memory: 64x Hyundai HMT42GR7BMR4C-H9 16 GB 1067 MHz 4 rank
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact,1,0" LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64" OMP_NUM_THREADS = "40" Binaries compiled on a system with 4x Xeon E7-8870 CPU + 1024GB memory using RHEL6.2 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/home/cpu2006/smartheap -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/home/cpu2006/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/home/cpu2006/smartheap -lsmartheap |
