SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 760 (3.4 GHz, 48 core)

CPU2006 license: 11 Test date: Jan-2013
Test sponsor: IBM Corporation Hardware Availability: Mar-2013
Tested by: IBM Corporation Software Availability: Feb-2013

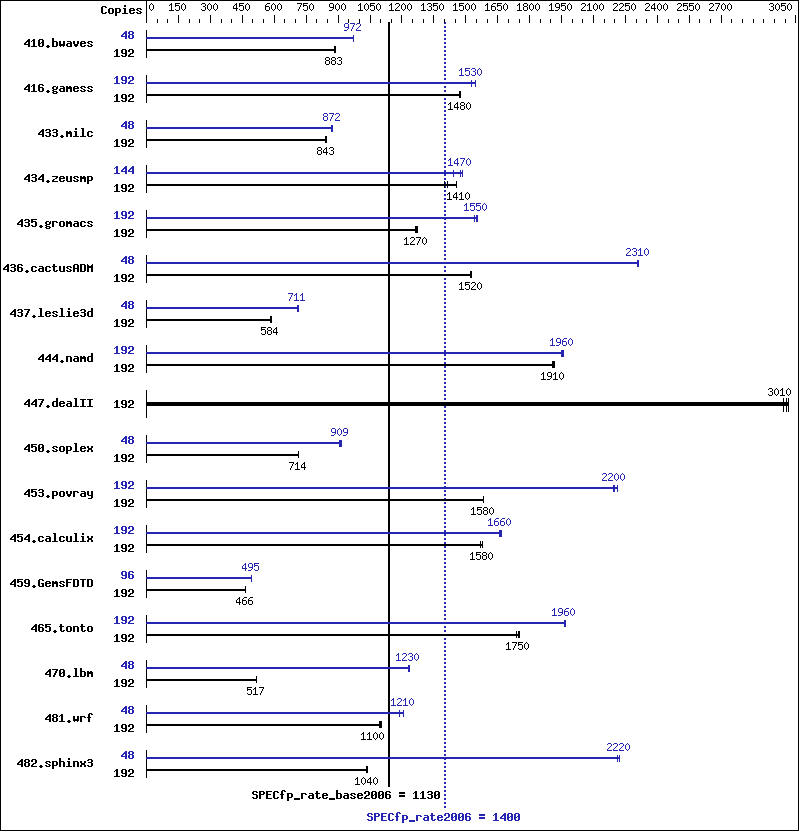

Benchmark results graph
Hardware
CPU Name: POWER7+
CPU Characteristics: Intelligent Energy Optimization enabled,
up to 3.787 GHz
CPU MHz: 3416
FPU: Integrated
CPU(s) enabled: 48 cores, 8 chips, 6 cores/chip, 4 threads/core
CPU(s) orderable: 12, 24, 36, 48 cores
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 10 MB I+D on chip per core
Other Cache: None
Memory: 512 GB (64 x 8 GB) DDR3 1066 MHz
Disk Subsystem: 5 x 300 GB 15K RPM Raid0 SFF SAS
Other Hardware: None
Software
Operating System: IBM AIX V7.1
Compiler: C/C++: Version 12.1 of IBM XL C/C++ for AIX;
Fortran: Version 14.1 of IBM XL Fortran for AIX
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 192 2944 886 2961 881 2955 883 48 671 972 670 974 671 972
416.gamess 192 2546 1480 2547 1480 2557 1470 192 2466 1520 2460 1530 2433 1550
433.milc 192 2080 847 2093 842 2090 843 48 507 870 504 875 505 872
434.zeusmp 192 1248 1400 1236 1410 1201 1450 144 882 1490 909 1440 889 1470
435.gromacs 192 1083 1270 1076 1270 1081 1270 192 889 1540 884 1550 880 1560
436.cactusADM 192 1505 1520 1503 1530 1506 1520 48 248 2310 248 2310 248 2310
437.leslie3d 192 3077 587 3099 582 3093 584 48 634 711 633 712 638 707
444.namd 192 808 1910 805 1910 804 1910 192 789 1950 786 1960 787 1960
447.dealII 192 734 2990 728 3020 731 3010 192 734 2990 728 3020 731 3010
450.soplex 192 2250 712 2244 714 2241 715 48 437 917 440 909 442 906
453.povray 192 645 1580 646 1580 644 1590 192 462 2210 465 2200 466 2190
454.calculix 192 1008 1570 1005 1580 1002 1580 192 951 1670 953 1660 955 1660
459.GemsFDTD 192 4372 466 4365 467 4371 466 96 2063 494 2056 495 2056 495
465.tonto 192 1087 1740 1078 1750 1082 1750 192 961 1960 961 1970 962 1960
470.lbm 192 5105 517 5107 517 5107 517 48 535 1230 535 1230 537 1230
481.wrf 192 1956 1100 1946 1100 1951 1100 48 450 1190 443 1210 444 1210
482.sphinx3 192 3613 1040 3610 1040 3612 1040 48 423 2210 421 2220 421 2220

Compiler Invocation Notes

 C/C++ compiler updated to November 2012 PTF
       Version: 12.01.0000.0002
 Fortran compiler updated to November 2012 PTF
       Version: 14.01.0000.0002

Peak Tuning Notes

 416.gamess fdpr options: -O4 -cbpth -1 -sdp -1
 433.milc fdpr options: -O4 -nodp
 435.gromacs fdpr options: -O
 436.cactusADM fdpr options: -O3 -lu -1 -nodp -sdp 9
 437.leslie3d fdpr options: -O3
 450.soplex fdpr options: -O4 -nodp
 453.povray fdpr options: -O3 -cbpth -1
 459.GemsFDTD fdpr options: -O3 -cbpth -1
 465.tonto fdpr options: -O4
 482.sphinx3 fdpr options: -O4 -rcctf 0 -sdp 9 -vrox

Submit Notes

 The config file option 'submit' was used
 to assign benchmark copy to specific kernel thread using
 the "bindprocessor" command (see flags file for details).

Operating System Notes

 AIX updated to V7.1 TL 2 SP2

 All ulimits set to unlimited.

 19200 16M large pages defined with vmo command

General Notes

Environment variables set by runspec before the start of the run:
MALLOCOPTIONS = "pool"
MEMORY_AFFINITY = "MCM"
XLFRTEOPTS = "intrinthds=1"

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   -qlanglvl=extc99   /usr/bin/xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -qipa=threads   -bmaxdata:0x40000000   -qlargepage   -O5   -D_ILS_MACROS   -blpdata

C++ benchmarks:

 -qipa=threads   -bmaxdata:0x50000000   -qlargepage   -O5   -qsimd   -qvecnvol   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata

Fortran benchmarks:

 -qipa=threads   -bmaxdata:0x60000000   -qlargepage   -O5   -qsmallstack=dynlenonheap   -qalias=nostd   -blpdata

Benchmarks using both Fortran and C:

 -qipa=threads   -bmaxdata:0x60000000   -qlargepage   -O5   -D_ILS_MACROS   -qsmallstack=dynlenonheap   -qalias=nostd   -blpdata

Base Other Flags

C benchmarks:

 -qipa=noobject   -qsuppress=1500-036

C++ benchmarks:

 -qipa=noobject   -qsuppress=1500-036

Fortran benchmarks:

 -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   -qlanglvl=extc99   /usr/bin/xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -qipa=threads   -bmaxdata:0x40000000   -O5   -qlargepage   -D_ILS_MACROS   -qalign=natural   -blpdata   -btextpsize:64K
470.lbm:  -qipa=threads   -bmaxdata:0x30000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -D_ILS_MACROS   -blpdata   -btextpsize:64K
482.sphinx3:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -blpdata   -btextpsize:64K

C++ benchmarks:

444.namd:  -qipa=threads   -O4   -q64   -qlargepage   -D_ILS_MACROS   -D__IBM_FAST_VECTOR   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata   -btextpsize:64K
447.dealII:  basepeak = yes
450.soplex:  -qipa=threads   -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -D_ILS_MACROS   -D__IBM_FAST_VECTOR   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata   -btextpsize:64K
453.povray:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qsimd   -qvecnvol   -qlargepage   -D_ILS_MACROS   -qalign=natural   -blpdata   -btextpsize:64K

Fortran benchmarks:

410.bwaves:  -qipa=threads   -bmaxdata:0x50000000   -O5   -qlargepage   -qsmallstack=dynlenonheap   -blpdata   -btextpsize:64K
416.gamess:  -qipa=threads   -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr5   -qlargepage   -qalias=nostd   -blpdata   -btextpsize:64K
434.zeusmp:  -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qlargepage   -qxlf90=nosignedzero   -blpdata   -btextpsize:64K
437.leslie3d:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -blpdata   -btextpsize:64K
459.GemsFDTD:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -q64   -qlargepage   -blpdata   -btextpsize:64K
465.tonto:  -qipa=threads   -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qsimd   -qvecnvol   -blpdata   -btextpsize:64K

Benchmarks using both Fortran and C:

435.gromacs:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -D_ILS_MACROS   -blpdata   -btextpsize:64K
436.cactusADM:  -qipa=threads   -bmaxdata:0x60000000   -O4   -qsimd   -qvecnvol   -D_ILS_MACROS   -qnostrict   -blpdata   -btextpsize:64K
454.calculix:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qsimd   -qvecnvol   -qlargepage   -D_ILS_MACROS   -blpdata   -btextpsize:64K
481.wrf:  -qipa=threads   -bmaxdata:0x30000000   -O5   -qsimd   -qvecnvol   -D_ILS_MACROS   -blpdata   -btextpsize:64K

Peak Other Flags

C benchmarks:

 -qipa=noobject   -qsuppress=1500-036

C++ benchmarks (except as noted below):

 -qipa=noobject   -qsuppress=1500-036
450.soplex:  -qsuppress=1500-036

Fortran benchmarks (except as noted below):

 -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036
434.zeusmp:  -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Benchmarks using both Fortran and C (except as noted below):

 -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036
481.wrf:  -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-XL.20110613.html,
http://www.spec.org/cpu2006/flags/IBM-AIX.20110613.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/IBM-XL.20110613.xml,
http://www.spec.org/cpu2006/flags/IBM-AIX.20110613.xml.
