SPEC® CINT2006 Result

IBM Corporation

IBM Power 750 Express (4.0 GHz, 32 core, SLES,
GCC)

SPECint®_rate2006 = 1190

SPECint_rate_base2006 = 1190

CPU2006 license:	11	Test date:	Jan-2013
Test sponsor:	IBM Corporation	Hardware Availability:	Mar-2013
Tested by:	IBM Corporation	Software Availability:	Nov-2012

Hardware
CPU Name:	POWER7+
CPU Characteristics:	Intelligent Energy Optimization enabled, up to 4.431 GHz
CPU MHz:	4060
FPU:	Integrated
CPU(s) enabled:	32 cores, 8 chips, 4 cores/chip, 4 threads/core
CPU(s) orderable:	8, 16, 24, 32 cores
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	10 MB I+D on chip per core
Other Cache:	None
Memory:	256 GB (64 x 4 GB) DDR3 1066 MHz
Disk Subsystem:	3 x 146.8 GB Raid0 SAS SFF 15K RPM
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 11 SP2 (ppc64) kernel 3.0.42-0.7-ppc64
Compiler:	C/C++: Version 4.7.3 of IBM Advance Toolchain 6.0-1 gcc/g++ compiler
Auto Parallel:	No
File System:	ext3
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	-IBM Advance Toolchain 6.0-1

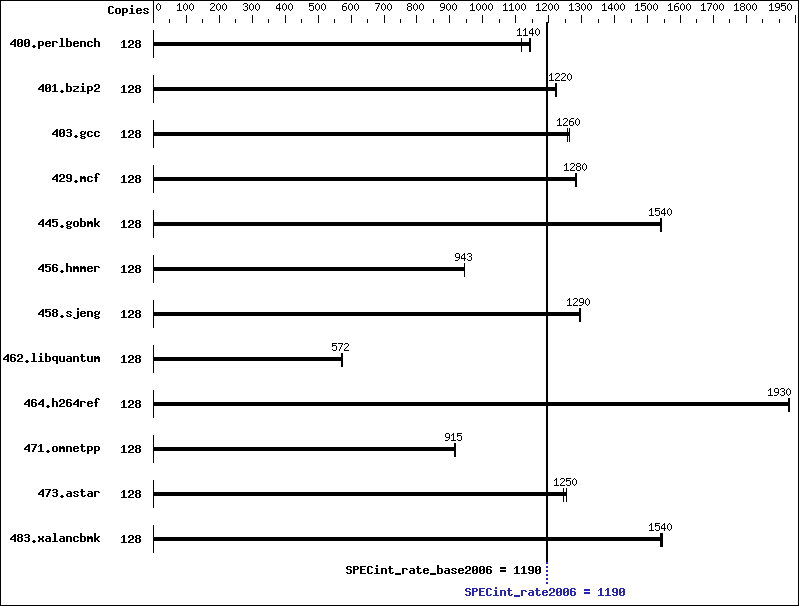

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	128	1118	1120	1095	1140	1093	1140	128	1118	1120	1095	1140	1093	1140
401.bzip2	128	1010	1220	1012	1220	1010	1220	128	1010	1220	1012	1220	1010	1220
403.gcc	128	815	1260	820	1260	815	1260	128	815	1260	820	1260	815	1260
429.mcf	128	910	1280	909	1280	911	1280	128	910	1280	909	1280	911	1280
445.gobmk	128	871	1540	871	1540	872	1540	128	871	1540	871	1540	872	1540
456.hmmer	128	1266	943	1266	943	1266	943	128	1266	943	1266	943	1266	943
458.sjeng	128	1198	1290	1198	1290	1195	1300	128	1198	1290	1198	1290	1195	1300
462.libquantum	128	4636	572	4628	573	4634	572	128	4636	572	4628	573	4634	572
464.h264ref	128	1469	1930	1468	1930	1467	1930	128	1469	1930	1468	1930	1467	1930
471.omnetpp	128	874	915	874	915	874	916	128	874	915	874	915	874	916
473.astar	128	716	1250	717	1250	721	1250	128	716	1250	717	1250	721	1250
483.xalancbmk	128	572	1540	574	1540	572	1540	128	572	1540	574	1540	572	1540

Compiler Invocation Notes

For more information about IBM Advance Toolchain, including support, see
ftp://linuxpatch.ncsa.uiuc.edu/toolchain/at/suse/SLES_11/at6.0/release_notes.at6.0-6.0-1.html

Submit Notes

  The config file option 'submit' was used
  to assign benchmark copy to specific kernel thread using
  the "numactl" command (see flags file for details).

Operating System Notes

  ulimit -s (stack) set to 1048576.

  Large pages reserved as follows by root user:
  echo 8448 > /proc/sys/vm/nr_hugepages

  The following environment varibles were set before the runspec command:
    export HUGETLB_VERBOSE=0
    export HUGETLB_MORECORE=yes

Base Compiler Invocation

C benchmarks:

/opt/at6.0/bin/gcc

C++ benchmarks:

/opt/at6.0/bin/g++

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LINUX_PPC
462.libquantum:	-DSPEC_CPU_LINUX
464.h264ref:	-fsigned-char
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	basepeak = yes
401.bzip2:	basepeak = yes
403.gcc:	basepeak = yes
429.mcf:	basepeak = yes
445.gobmk:	basepeak = yes
456.hmmer:	basepeak = yes
458.sjeng:	basepeak = yes
462.libquantum:	basepeak = yes
464.h264ref:	basepeak = yes

C++ benchmarks:

471.omnetpp:	basepeak = yes
473.astar:	basepeak = yes
483.xalancbmk:	basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-Power.20130226.html,
http://www.spec.org/cpu2006/flags/IBM-Linux-AT.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/IBM-Power.20130226.xml,
http://www.spec.org/cpu2006/flags/IBM-Linux-AT.xml.
