SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 730 Express (4.2 GHz, 16 core, SLES)

CPU2006 license: 11 Test date: Jan-2013
Test sponsor: IBM Corporation Hardware Availability: Feb-2013
Tested by: IBM Corporation Software Availability: Dec-2012

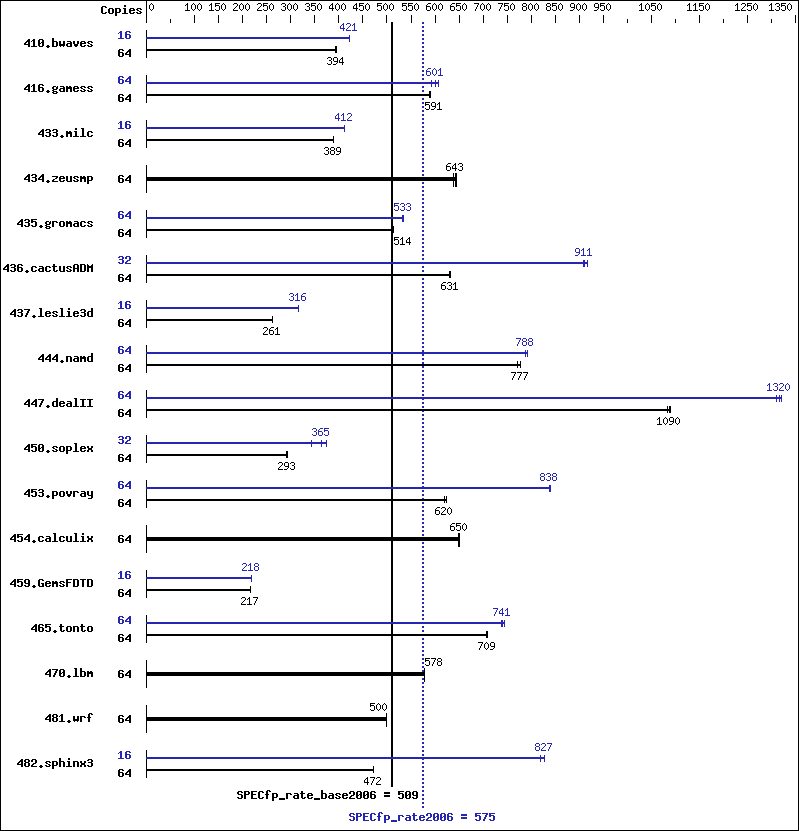

Benchmark results graph
Hardware
CPU Name: POWER7+
CPU Characteristics: Intelligent Energy Optimization enabled,
up to 4.540 GHz
CPU MHz: 4228
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip, 4 threads/core
CPU(s) orderable: 8, 16 cores
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 10 MB I+D on chip per core
Other Cache: None
Memory: 128 GB (16 x 8 GB) DDR3 1066 MHz
Disk Subsystem: 1 x 146.8 GB SAS SFF 15K RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11 SP2
(ppc64) kernel 3.0.42-0.7-ppc64
Compiler: C/C++: Version 12.1 of IBM XL C/C++ for Linux;
Fortran: Version 14.1 of IBM XL Fortran for Linux
Auto Parallel: No
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: -Post-Link Optimization for Linux on
POWER, version 5.6.1-7
-MicroQuill SmartHeap 9
-Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 64 2208 394 2206 394 2206 394 16 516 421 516 421 516 421
416.gamess 64 2129 589 2121 591 2122 591 64 2061 608 2116 592 2085 601
433.milc 64 1511 389 1511 389 1511 389 16 356 412 356 412 357 412
434.zeusmp 64 904 644 905 643 912 639 64 904 644 905 643 912 639
435.gromacs 64 888 514 896 510 889 514 64 855 534 860 531 858 533
436.cactusADM 64 1212 631 1211 631 1216 629 32 420 911 417 916 421 909
437.leslie3d 64 2303 261 2301 261 2302 261 16 476 316 476 316 476 316
444.namd 64 661 777 660 778 666 771 64 652 787 651 788 648 792
447.dealII 64 676 1080 674 1090 672 1090 64 559 1310 555 1320 556 1320
450.soplex 64 1828 292 1825 293 1814 294 32 779 343 732 365 713 374
453.povray 64 549 620 546 624 550 619 64 406 838 406 838 406 839
454.calculix 64 812 650 814 649 811 651 64 812 650 814 649 811 651
459.GemsFDTD 64 3131 217 3130 217 3131 217 16 781 217 780 218 779 218
465.tonto 64 887 710 888 709 890 708 64 850 741 854 738 847 744
470.lbm 64 1521 578 1522 578 1522 578 64 1521 578 1522 578 1522 578
481.wrf 64 1431 500 1431 500 1435 498 64 1431 500 1431 500 1435 498
482.sphinx3 64 2646 471 2640 472 2645 472 16 381 819 377 827 377 828

Compiler Invocation Notes

  C/C++ compiler updated to December 2012 PTF
  Version: 12.01.0000.0002
  Fortran compiler updated to December 2012 PTF
  Version: 14.01.0000.0002

Peak Tuning Notes

 Post-Link optimization tool used for:
 433.milc 435.gromacs 450.soplex 482.sphinx3
      with options -O4 -nodp
 434.zeusmp
      with options -O4 -vrox -nodp
  437.leslie3d
       with options -O3 -lu -1 -nodp -sdp 9
  444.namd
       with options -O3 -lu -1 -nodp -sdp 9
  450.soplex
      with options -O4 -nodp
 465.tonto
    with options -O4
 482.sphinx3
     with options -O4 -nodp

Submit Notes

  The config file option 'submit' was used
  to assign benchmark copy to specific kernel thread using
  the "numactl" command (see flags file for details).

Operating System Notes

  ulimit -s (stack) set to 1048576.

  Large pages reserved as follows by root user:
  echo 4224 > /proc/sys/vm/nr_hugepages

  The Apache C++ Standard Library V4.2.1 was installed from
  http://stdcxx.apache.org/download.html using:
  gmake BUILDTYPE=8d CONFIG=gcc.config

  The following environment varibles were set before the runspec command:
    export HUGETLB_VERBOSE=0
    export HUGETLB_MORECORE=yes
    export HUGETLB_ELFMAP=RW
    export XLFRTEOPTS=intrinthds=1

Base Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -O5   -qarch=pwr7   -qtune=pwr7   -q32   -qipa=threads   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align

C++ benchmarks:

 -O5   -qarch=pwr7   -qtune=pwr7   -q32   -qipa=threads   -qrtti   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align

Fortran benchmarks:

 -O5   -qarch=pwr7   -qtune=pwr7   -q32   -qipa=threads   -qalias=nostd   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align

Benchmarks using both Fortran and C:

 -O5   -qarch=pwr7   -qtune=pwr7   -q32   -qipa=threads   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align   -qalias=nostd

Base Other Flags

C benchmarks:

C++ benchmarks:

Fortran benchmarks:

Benchmarks using both Fortran and C:

Peak Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -DSPEC_CPU_LP64   -qfixed   -qextname
437.leslie3d:  -qfixed
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -Wl,-q   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -lhugetlbfs
470.lbm:  basepeak = yes
482.sphinx3:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -lhugetlbfs

C++ benchmarks:

444.namd:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -lhugetlbfs
447.dealII:  -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qrtti   -qcpp_stdinc=/opt/stdcxx421/include/ansi:/opt/stdcxx421/include:/opt/ibmcmp/vacpp/12.1/include   -lsmartheap   -L/opt/stdcxx421/lib   -R/opt/stdcxx421/lib   -lstd8d
450.soplex:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=pwr7   -qtune=pwr7   -q64   -lhugetlbfs
453.povray:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsimd   -q64   -lsmartheap64

Fortran benchmarks:

410.bwaves:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsmallstack=dynlenonheap   -q64   -lhugetlbfs
416.gamess:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qalias=nostd   -lhugetlbfs
434.zeusmp:  basepeak = yes
437.leslie3d:  -Wl,-q   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -q64   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align
459.GemsFDTD:  -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsimd   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align
465.tonto:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsimd   -lhugetlbfs

Benchmarks using both Fortran and C:

435.gromacs:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsimd   -lhugetlbfs
436.cactusADM:  -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsimd   -qnostrict   -q64   -lhugetlbfs
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

C++ benchmarks:

Fortran benchmarks:

Benchmarks using both Fortran and C:


The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-Power.html,
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20121024.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/IBM-Power.xml,
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20121024.xml.
