| CPU2006 license: | 9008 | Test date: | Dec-2012 |
|---|---|---|---|
| Test sponsor: | ACTION S.A. | Hardware Availability: | Mar-2012 |
| Tested by: | ACTION S.A. | Software Availability: | Feb-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2620 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.50 GHz |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 6 cores, 1 chip, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (8 x 16 GB 2Rx4 PC3-12800R-11, ECC, running at 1333 MHz and CL9) |
| Disk Subsystem: | 1 x 2 TB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP2 (x86_64) 3.0.13-0.27-default |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

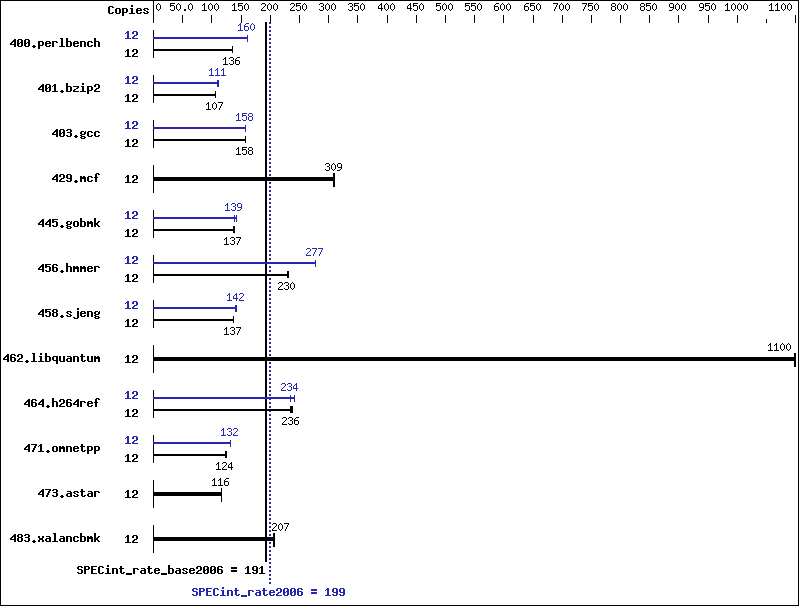

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 12 | 862 | 136 | 863 | 136 | 863 | 136 | 12 | 732 | 160 | 731 | 160 | 732 | 160 |
| 401.bzip2 | 12 | 1085 | 107 | 1082 | 107 | 1083 | 107 | 12 | 1042 | 111 | 1055 | 110 | 1042 | 111 |
| 403.gcc | 12 | 610 | 158 | 610 | 158 | 610 | 158 | 12 | 611 | 158 | 611 | 158 | 611 | 158 |
| 429.mcf | 12 | 354 | 309 | 353 | 310 | 354 | 309 | 12 | 354 | 309 | 353 | 310 | 354 | 309 |
| 445.gobmk | 12 | 924 | 136 | 910 | 138 | 922 | 137 | 12 | 907 | 139 | 908 | 139 | 889 | 142 |
| 456.hmmer | 12 | 487 | 230 | 486 | 231 | 487 | 230 | 12 | 404 | 277 | 404 | 277 | 404 | 277 |
| 458.sjeng | 12 | 1062 | 137 | 1066 | 136 | 1064 | 137 | 12 | 1028 | 141 | 1019 | 142 | 1025 | 142 |
| 462.libquantum | 12 | 226 | 1100 | 226 | 1100 | 226 | 1100 | 12 | 226 | 1100 | 226 | 1100 | 226 | 1100 |
| 464.h264ref | 12 | 1129 | 235 | 1117 | 238 | 1128 | 236 | 12 | 1098 | 242 | 1135 | 234 | 1134 | 234 |
| 471.omnetpp | 12 | 605 | 124 | 604 | 124 | 603 | 124 | 12 | 568 | 132 | 567 | 132 | 567 | 132 |
| 473.astar | 12 | 726 | 116 | 723 | 116 | 724 | 116 | 12 | 726 | 116 | 723 | 116 | 724 | 116 |
| 483.xalancbmk | 12 | 401 | 207 | 400 | 207 | 401 | 206 | 12 | 401 | 207 | 400 | 207 | 401 | 206 |
Submit Notes
The taskset mechanism was used to bind copies to processors. The config file option 'submit' was used to generate taskset commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
Sysinfo program /cpu2006.1.2/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on SUT Mon Dec 10 10:54:57 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2620 0 @ 2.00GHz 1 "physical id"s (chips) 12 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 3 4 5 cache size : 15360 KB From /proc/meminfo MemTotal: 132117212 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 2 uname -a: Linux SUT 3.0.13-0.27-default #1 SMP Wed Feb 15 13:33:49 UTC 2012 (d73692b) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Dec 10 10:48 last=S SPEC is set to: /cpu2006.1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext3 1.8T 70G 1.8T 4% / Additional information from dmidecode: (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/cpu2006.1.2/libs/32:/cpu2006.1.2/libs/64" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
