SPEC® CINT2006 Result

Supermicro

Supermicro A+ Server 4022G-6F (H8DG6-F, Opteron
6308)
AMD Opteron 6308

SPECint®_rate2006 = 201

SPECint_rate_base2006 = 178

CPU2006 license:	001176	Test date:	Sep-2012
Test sponsor:	Supermicro	Hardware Availability:	Nov-2012
Tested by:	Supermicro	Software Availability:	Aug-2012

Hardware
CPU Name:	AMD Opteron 6308
CPU Characteristics:
CPU MHz:	3500
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	128 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core
Secondary Cache:	4 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache:	16 MB I+D on chip per chip, 8 MB shared / 2 cores
Other Cache:	None
Memory:	128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem:	1 x 500 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 6.2, Kernel 2.6.32-220.el6.x86_64
Compiler:	C/C++: Version 4.5.2 of x86 Open64 Compiler Suite (from AMD)
Auto Parallel:	No
File System:	ext3
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap 10.0 32-bit Library for Linux

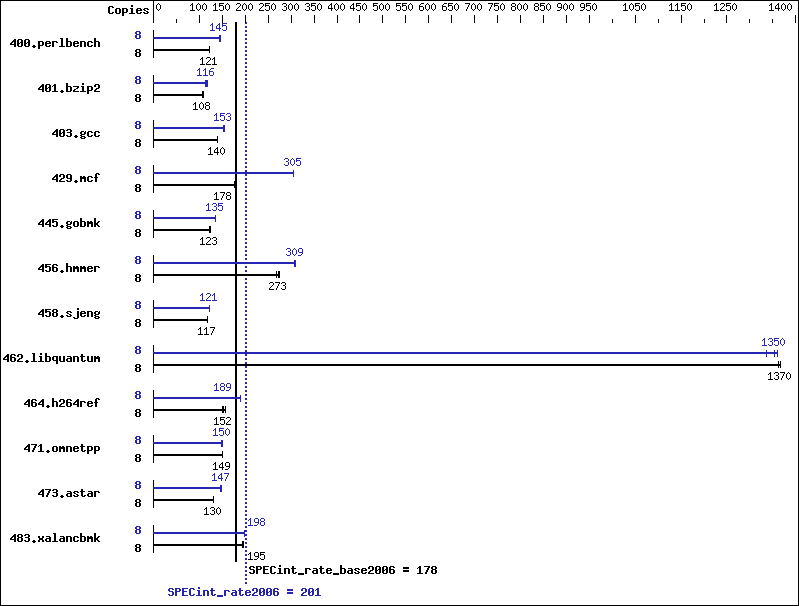

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	8	645	121	645	121	646	121	8	540	145	542	144	533	147
401.bzip2	8	711	109	727	106	717	108	8	662	117	675	114	664	116
403.gcc	8	462	139	460	140	459	140	8	416	155	420	153	422	153
429.mcf	8	410	178	411	177	411	178	8	239	305	239	305	239	306
445.gobmk	8	684	123	686	122	678	124	8	623	135	623	135	622	135
456.hmmer	8	273	273	279	267	271	276	8	241	309	242	309	243	307
458.sjeng	8	827	117	825	117	823	118	8	798	121	796	122	799	121
462.libquantum	8	121	1370	121	1370	122	1360	8	124	1340	122	1350	122	1360
464.h264ref	8	1177	150	1165	152	1132	156	8	936	189	936	189	936	189
471.omnetpp	8	335	149	334	150	335	149	8	336	149	334	150	334	150
473.astar	8	432	130	432	130	431	130	8	385	146	382	147	380	148
483.xalancbmk	8	283	195	282	196	284	194	8	278	198	279	198	279	198

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst

Set vm/nr_hugepages=7168 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/home/spec/amd1206-rate-libs-revA/32:/home/spec/amd1206-rate-libs-revA/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-Ofast -CG:local_sched_alg=1 -INLINE:aggressive=ON -IPA:plimit=8000 -IPA:small_pu=100 -HP:bd=2m:heap=2m -mso -LNO:prefetch=2 -march=bdver1

C++ benchmarks:

-Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -D__OPEN64_FAST_SET -march=bdver1 -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
473.astar:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:prefetch=2 -LNO:opt=0 -IPA:plimit=20000 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -WOPT:if_conv=0 -WOPT:sib=on -CG:local_sched_alg=1 -CG:unroll_fb_req=on -CG:movext_icmp=off -HP:bd=2m:heap=2m -march=bdver1 -GRA:aggr_loop_splitting=off -GRA:loop_splitting=off
401.bzip2:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:prefetch=2 -LNO:pf2=0 -OPT:alias=disjoint -OPT:goto=off -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m -march=bdver2
403.gcc:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:trip_count=256 -CG:cmp_peep=on -CG:pre_minreg_level=2 -m32 -HP:bdt=2m:heap=2m -GRA:unspill=on -IPA:small_pu=200 -WOPT:sib=on -march=bdver2 -mno-fma4
429.mcf:	-O3 -OPT:unroll_times_max=5 -ipa -INLINE:aggressive=on -CG:gcm=off -CG:dsched=on -GRA:prioritize_by_density=on -m32 -HP:bdt=2m:heap=2m -mso -march=bdver1
445.gobmk:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:unroll_size=256 -OPT:unroll_times_max=8 -OPT:keep_ext=on -IPA:plimit=750 -IPA:min_hotness=300 -IPA:pu_reorder=1 -LNO:ignore_feedback=off -WOPT:if_conv=2 -HP:bd=2m:heap=2m -march=bdver1
456.hmmer:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:prefetch=2 -OPT:alias=disjoint -OPT:unroll_times_max=16 -OPT:unroll_size=512 -OPT:unroll_level=2 -OPT:keep_ext=on -CG:cflow=0 -CG:cmp_peep=on -CG:pre_local_sched=off -HP:bdt=2m:heap=2m -CG:p2align=0 -CG:load_exe=3 -CG:dsched=on -march=bdver1
458.sjeng:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -CG:ptr_load_use=0 -CG:divrem_opt=on -CG:movext_icmp=off -CG:locs_best=on -LNO:full_unroll=10 -IPA:pu_reorder=2 -HP:heap=2m:bd=2m -WOPT:sib=on -march=bdver1
462.libquantum:	-Ofast -mso -OPT:unroll_size=512 -OPT:unroll_times_max=16 -LNO:prefetch=2 -LNO:prefetch_ahead=4 -LNO:pf2=0 -CG:local_sched_alg=1 -CG:p2align=0 -INLINE:aggressive=ON -IPA:plimit=15000 -IPA:small_pu=100 -HP:bdt=2m:heap=2m,limit=300 -march=bdver2
464.h264ref:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:unroll_size=256 -OPT:unroll_times_max=2 -IPA:plimit=20000 -OPT:alias=disjoint -CG:ptr_load_use=0 -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m -march=bdver1

C++ benchmarks:

471.omnetpp:	-Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -WOPT:sib=on -D__OPEN64_FAST_SET -march=bdver2 -mno-fma4 -L/root/work/libraries/SmartHeap-10/lib -lsmartheap
473.astar:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -WOPT:if_conv=0 -WOPT:sib=on -CG:divrem_opt=on -CG:p2align=1 -CG:dsched=on -GRA:optimize_boundary=on -OPT:alias=disjoint -INLINE:aggressive=on -IPA:small_pu=3000 -IPA:plimit=3000 -HP:bdt=2m:heap=2m -march=bdver1
483.xalancbmk:	-Ofast -LNO:prefetch=2 -OPT:unroll_size=512 -OPT:unroll_times_max=8 -D__OPEN64_FAST_SET -INLINE:aggressive=on -m32 -CG:cmp_peep=on -CG:local_sched=off -CG:p2align=1 -GRA:unspill=on -TENV:frame_pointer=off -fno-emit-exceptions -march=bdver2 -mno-fma4 -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-I.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-I.xml.
