| CPU2006 license: | 9001 | Test date: | Dec-2012 |
|---|---|---|---|
| Test sponsor: | Itautec | Hardware Availability: | Jun-2012 |
| Tested by: | Itautec | Software Availability: | Jun-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2609 |
| CPU Characteristics: | |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 10 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 64 GB (8 x 8 GB 2Rx8 PC3-10600R-9, ECC, running at 1066 MHz and CL7) |
| Disk Subsystem: | 1 TB, SATA-2, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server Release 6.3, 2.6.32-279.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0 of Intel Compiler XE Build 20111011 |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

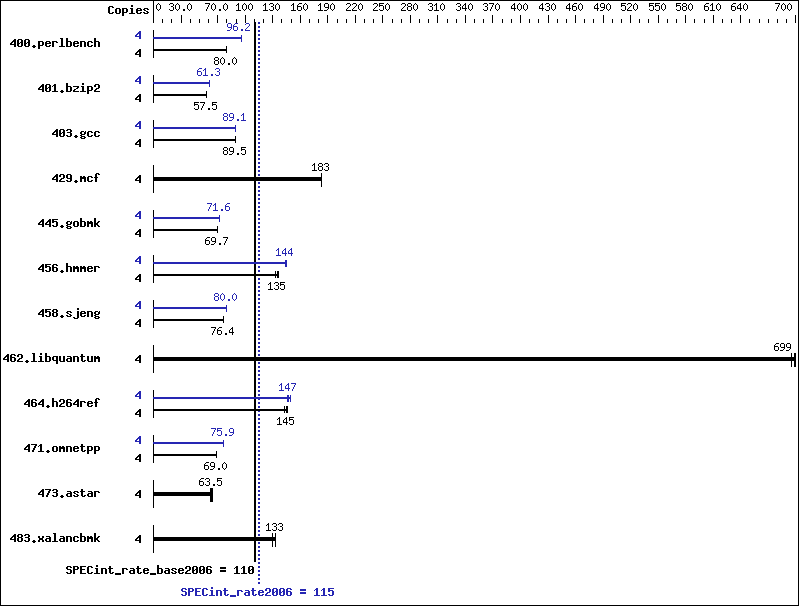

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 489 | 80.0 | 488 | 80.0 | 488 | 80.1 | 4 | 406 | 96.2 | 406 | 96.3 | 406 | 96.2 |
| 401.bzip2 | 4 | 671 | 57.5 | 671 | 57.5 | 672 | 57.4 | 4 | 630 | 61.3 | 630 | 61.3 | 630 | 61.3 |
| 403.gcc | 4 | 359 | 89.8 | 360 | 89.5 | 360 | 89.5 | 4 | 362 | 89.0 | 361 | 89.1 | 361 | 89.1 |
| 429.mcf | 4 | 199 | 183 | 199 | 183 | 200 | 183 | 4 | 199 | 183 | 199 | 183 | 200 | 183 |
| 445.gobmk | 4 | 603 | 69.6 | 602 | 69.7 | 602 | 69.7 | 4 | 586 | 71.6 | 587 | 71.5 | 586 | 71.6 |
| 456.hmmer | 4 | 277 | 135 | 280 | 133 | 273 | 137 | 4 | 257 | 145 | 259 | 144 | 258 | 144 |
| 458.sjeng | 4 | 633 | 76.4 | 634 | 76.4 | 633 | 76.4 | 4 | 605 | 80.0 | 605 | 80.0 | 604 | 80.1 |
| 462.libquantum | 4 | 119 | 699 | 119 | 699 | 119 | 695 | 4 | 119 | 699 | 119 | 699 | 119 | 695 |
| 464.h264ref | 4 | 607 | 146 | 609 | 145 | 619 | 143 | 4 | 604 | 147 | 592 | 149 | 603 | 147 |
| 471.omnetpp | 4 | 363 | 69.0 | 361 | 69.2 | 363 | 68.9 | 4 | 328 | 76.2 | 329 | 75.9 | 330 | 75.8 |
| 473.astar | 4 | 451 | 62.3 | 437 | 64.2 | 443 | 63.5 | 4 | 451 | 62.3 | 437 | 64.2 | 443 | 63.5 |
| 483.xalancbmk | 4 | 212 | 130 | 207 | 133 | 208 | 133 | 4 | 212 | 130 | 207 | 133 | 208 | 133 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run. Large pages were not enabled for this run
Platform Notes
Sysinfo program /home/rcaneca/cpu2006/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ 8787f7622badcf24e01c368b1db4377c running on mx225sp Thu Dec 1 01:51:25 2011 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2609 0 @ 2.40GHz 1 "physical id"s (chips) 4 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 4 siblings : 4 physical 0: cores 0 1 2 3 cache size : 10240 KB From /proc/meminfo MemTotal: 65882036 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.3 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.3 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.3 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux mx225sp 2.6.32-279.el6.x86_64 #1 SMP Wed Jun 13 18:24:36 EDT 2012 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Nov 30 16:22 SPEC is set to: /home/rcaneca/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_mx225sp-lv_home ext4 836G 2.1G 791G 1% /home (End of data from sysinfo program)
General Notes
This result was measured on the Servidor Itautec MX225. The Servidor Itautec MX225 and the Servidor Itautec MX215 are electronically equivalent.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/home/rcaneca/sh/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xAVX -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xAVX -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/rcaneca/sh/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
