SPEC® CINT2006 Result

Cisco Systems

Cisco UCS B200 M3 (Intel Xeon E5-2630, 2.30 GHz)

SPECint®2006 = 43.3

SPECint_base2006 = 40.7

CPU2006 license:	9019	Test date:	Nov-2012
Test sponsor:	Cisco Systems	Hardware Availability:	Jun-2012
Tested by:	Cisco Systems	Software Availability:	Feb-2012

Hardware
CPU Name:	Intel Xeon E5-2630
CPU Characteristics:	Intel Turbo Boost Technology up to 2.80 GHz
CPU MHz:	2300
FPU:	Integrated
CPU(s) enabled:	12 cores, 2 chips, 6 cores/chip
CPU(s) orderable:	1,2 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	15 MB I+D on chip per chip
Other Cache:	None
Memory:	128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC, running at 1333 MHz and CL7)
Disk Subsystem:	1 X 600 GB 10000 RPM SAS
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64
Compiler:	C/C++: Version 12.1.3.293 of Intel C++ Studio XE for Linux
Auto Parallel:	Yes
File System:	ext4
System State:	Run level 3 (multi-user)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V9.01

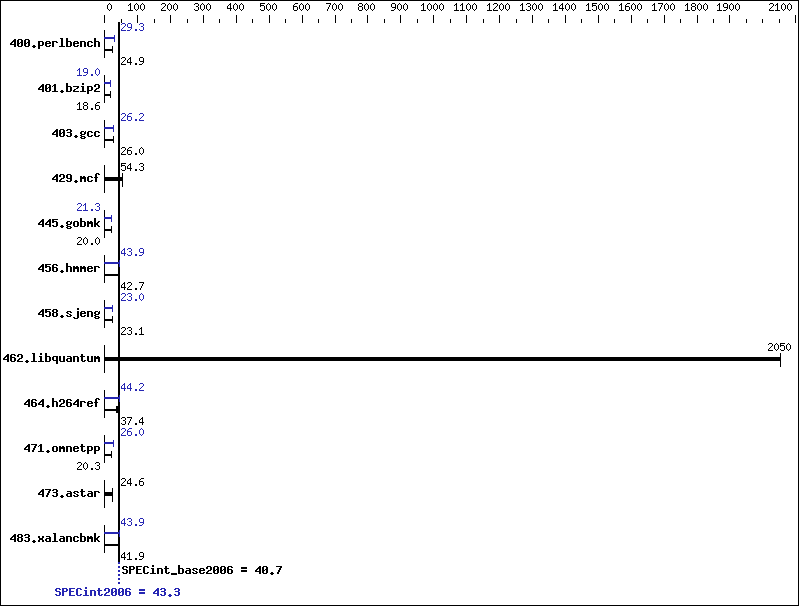

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	394	24.8	393	24.9	392	24.9	333	29.3	334	29.2	333	29.3
401.bzip2	519	18.6	519	18.6	518	18.6	509	19.0	508	19.0	509	19.0
403.gcc	311	25.9	310	26.0	310	26.0	307	26.2	307	26.2	307	26.2
429.mcf	167	54.6	168	54.1	168	54.3	167	54.6	168	54.1	168	54.3
445.gobmk	525	20.0	525	20.0	526	19.9	492	21.3	493	21.3	492	21.3
456.hmmer	219	42.7	219	42.6	219	42.7	214	43.7	213	43.9	213	43.9
458.sjeng	525	23.1	524	23.1	524	23.1	526	23.0	525	23.0	525	23.0
462.libquantum	10.1	2050	10.1	2050	10.1	2050	10.1	2050	10.1	2050	10.1	2050
464.h264ref	590	37.5	592	37.4	595	37.2	501	44.2	507	43.7	498	44.4
471.omnetpp	308	20.3	308	20.3	308	20.3	241	25.9	240	26.0	241	26.0
473.astar	285	24.6	287	24.5	285	24.6	285	24.6	287	24.5	285	24.6
483.xalancbmk	168	41.0	165	41.9	165	41.9	157	43.9	157	43.9	157	43.9

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

BIOS Configuration:
Processor C6 Report set to Disabled
Processor C1E set to Disabled
CPU Performance set to HPC
LV DDR Mode set to Performance-mode
 Sysinfo program /opt/cpu2006-1.2/config/sysinfo.rev6800
 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3
 running on localhost.localdomain Sun Nov 18 22:21:11 2012

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E5-2630 0 @ 2.30GHz
       2 "physical id"s (chips)
       12 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 6
       siblings  : 6
       physical 0: cores 0 1 2 3 4 5
       physical 1: cores 0 1 2 3 4 5
    cache size : 15360 KB

 From /proc/meminfo
    MemTotal:       132101948 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.2 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux localhost.localdomain 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13
    EST 2011 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Nov 18 22:16

 SPEC is set to: /opt/cpu2006-1.2
    Filesystem    Type    Size  Used Avail Use% Mounted on
    /dev/sda1     ext4    550G  9.9G  512G   2% /

 Additional information from dmidecode:
   Memory:
    16x 0xCE00 M393B1K70DH0-YK0 8 GB 1600 MHz 2 rank

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
KMP_AFFINITY = "granularity=fine,scatter"
LD_LIBRARY_PATH = "/opt/cpu2006-1.2/libs/32:/opt/cpu2006-1.2/libs/64"
OMP_NUM_THREADS = "12"
Intel HT Technology=disable
 Binaries compiled on a system with 2 X Intel Xeon E5-2690 CPU + 128 GB memory using RHEL 6.2
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches

Base Compiler Invocation

C benchmarks:

icc -m64

C++ benchmarks:

icpc -m64

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
471.omnetpp:	-DSPEC_CPU_LP64
473.astar:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32

C++ benchmarks:

-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/smartheap -lsmartheap64

Base Other Flags

C benchmarks:

403.gcc:

-Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

	icc -m64
400.perlbench:	icc -m32
445.gobmk:	icc -m32
464.h264ref:	icc -m32

C++ benchmarks (except as noted below):

	icpc -m32
473.astar:	icpc -m64

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LINUX_IA32
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
473.astar:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias
401.bzip2:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias
403.gcc:	-xSSE4.2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32
429.mcf:	basepeak = yes
445.gobmk:	-xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias
456.hmmer:	-xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias
458.sjeng:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4
462.libquantum:	basepeak = yes
464.h264ref:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias

C++ benchmarks:

471.omnetpp:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap
473.astar:	basepeak = yes
483.xalancbmk:	-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap

Peak Other Flags

C benchmarks:

403.gcc:

-Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-linux64.20120425.html,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2.20130607.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-linux64.20120425.xml,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2.20130607.xml.
