| CPU2006 license: | 13 | Test date: | May-2012 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Jun-2012 |
| Tested by: | Intel Corporation | Software Availability: | Apr-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i5-3470 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.6 GHz |
| CPU MHz: | 3200 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 6 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx8 PC3-12800U-9) |
| Disk Subsystem: | 1 TB Seagate SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows 7 Ultimate 6.1.7601 Service Pack 1 Build 7601 |
| Compiler: | C/C++: Version 12.1.0.229 of Intel C++ Studio XE for Windows; Libraries: Version 15.00.30729.01 of Microsoft Visual Studio 2008 Professional SP1 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 9.01 from http://www.microquill.com/ |

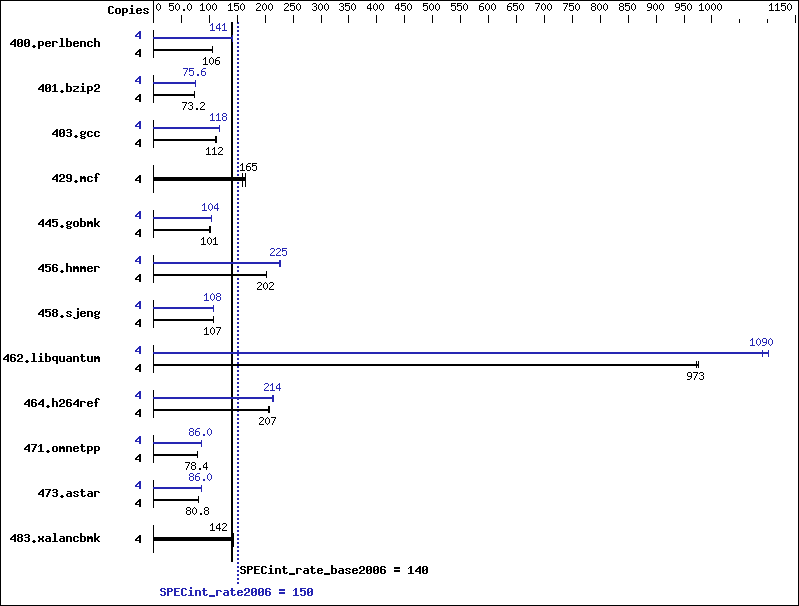

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 369 | 106 | 368 | 106 | 369 | 106 | 4 | 277 | 141 | 277 | 141 | 276 | 142 |
| 401.bzip2 | 4 | 530 | 72.8 | 528 | 73.2 | 527 | 73.2 | 4 | 510 | 75.6 | 510 | 75.6 | 507 | 76.0 |
| 403.gcc | 4 | 288 | 112 | 286 | 113 | 290 | 111 | 4 | 272 | 118 | 272 | 118 | 272 | 119 |
| 429.mcf | 4 | 221 | 165 | 221 | 166 | 228 | 160 | 4 | 221 | 165 | 221 | 166 | 228 | 160 |
| 445.gobmk | 4 | 414 | 101 | 416 | 101 | 414 | 102 | 4 | 404 | 104 | 403 | 104 | 404 | 104 |
| 456.hmmer | 4 | 185 | 202 | 185 | 202 | 185 | 202 | 4 | 166 | 225 | 166 | 225 | 164 | 228 |
| 458.sjeng | 4 | 454 | 107 | 454 | 107 | 454 | 107 | 4 | 451 | 107 | 450 | 108 | 450 | 108 |
| 462.libquantum | 4 | 84.9 | 976 | 85.2 | 973 | 85.3 | 972 | 4 | 76.0 | 1090 | 76.0 | 1090 | 75.3 | 1100 |
| 464.h264ref | 4 | 430 | 206 | 428 | 207 | 428 | 207 | 4 | 414 | 214 | 415 | 214 | 414 | 214 |
| 471.omnetpp | 4 | 317 | 78.8 | 318 | 78.4 | 318 | 78.4 | 4 | 291 | 86.0 | 290 | 86.4 | 290 | 86.0 |
| 473.astar | 4 | 347 | 80.8 | 348 | 80.8 | 348 | 80.8 | 4 | 327 | 86.0 | 327 | 86.0 | 327 | 86.0 |
| 483.xalancbmk | 4 | 196 | 141 | 195 | 142 | 194 | 142 | 4 | 196 | 141 | 195 | 142 | 194 | 142 |
Compiler Invocation Notes
ipsxe-comp-vars batch file invoked with ia32
Submit Notes
Processes were bound to specific processors using the start command with the /affinity switch. The config file option 'submit' was used to generate the affinity mask for each process.
Platform Notes
Sysinfo program C:\CPU200~1.17A/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on CltE840F20AA525 Sat May 19 03:29:41 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 7 Ultimate OS Version : 6.1.7601 Service Pack 1 Build 7601 System Manufacturer: INTEL_ System Model : DH77KC__ Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 58 Stepping 9 GenuineIntel ~3201 Mhz BIOS Version : Intel Corp. KCH7710H.86A.0069.2012.0224.1825, 2/24/2012 Total Physical Memory: 8,090 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 1024 L3CacheSize : 6144 MaxClockSpeed : 3201 Name : Intel(R) Core(TM) i5-3470 CPU @ 3.20GHz NumberOfCores : 4 NumberOfLogicalProcessors: 4 (End of data from sysinfo program)
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
General Notes
Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
C++ benchmarks:
| -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks (except as noted below):
| icl -Qvc9 | |
| 473.astar: | C:\Program Files (x86)\Intel\Composer XE 2011 SP1.229/bin/intel64/icl.exe |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 456.hmmer: | -DSPEC_CPU_P64 |
| 458.sjeng: | -DSPEC_CPU_P64 |
| 462.libquantum: | -DSPEC_CPU_P64 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 473.astar: | -DSPEC_CPU_P64 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias /F512000000 |
| 403.gcc: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -Qauto-ilp32 -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 458.sjeng: | -Qauto-ilp32 -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | -Qauto-ilp32 -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 464.h264ref: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
C++ benchmarks:
| 471.omnetpp: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qauto-ilp32 -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
