| CPU2006 license: | 9001 | Test date: | Oct-2012 |
|---|---|---|---|
| Test sponsor: | Itautec | Hardware Availability: | Jun-2012 |
| Tested by: | Itautec | Software Availability: | Dec-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2640 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.00 GHz |
| CPU MHz: | 2500 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 32 GB (8 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 2 x 146 GB, SAS, 15000 RPM, RAID 1 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server Release 6.3, 2.6.32-279.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0 of Intel Compiler XE Build 20111011 |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

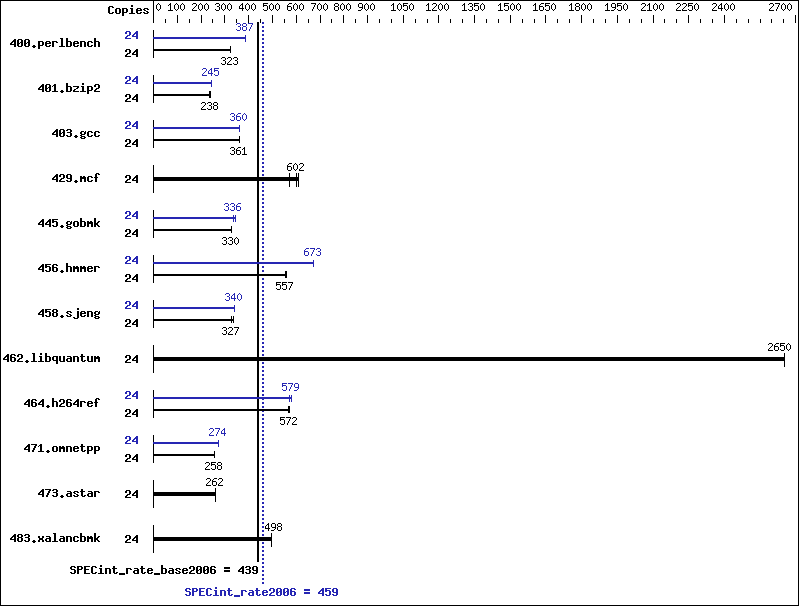

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 723 | 324 | 727 | 323 | 726 | 323 | 24 | 607 | 386 | 605 | 388 | 605 | 387 |
| 401.bzip2 | 24 | 983 | 236 | 972 | 238 | 966 | 240 | 24 | 953 | 243 | 943 | 246 | 947 | 245 |
| 403.gcc | 24 | 535 | 361 | 535 | 361 | 536 | 360 | 24 | 535 | 361 | 536 | 360 | 537 | 360 |
| 429.mcf | 24 | 384 | 570 | 360 | 608 | 364 | 602 | 24 | 384 | 570 | 360 | 608 | 364 | 602 |
| 445.gobmk | 24 | 764 | 330 | 764 | 330 | 763 | 330 | 24 | 735 | 343 | 751 | 335 | 749 | 336 |
| 456.hmmer | 24 | 403 | 556 | 402 | 557 | 401 | 559 | 24 | 333 | 673 | 332 | 674 | 333 | 672 |
| 458.sjeng | 24 | 887 | 327 | 888 | 327 | 867 | 335 | 24 | 852 | 341 | 856 | 339 | 853 | 340 |
| 462.libquantum | 24 | 188 | 2650 | 188 | 2650 | 187 | 2650 | 24 | 188 | 2650 | 188 | 2650 | 187 | 2650 |
| 464.h264ref | 24 | 928 | 572 | 926 | 574 | 933 | 569 | 24 | 917 | 579 | 916 | 580 | 930 | 571 |
| 471.omnetpp | 24 | 582 | 258 | 582 | 258 | 582 | 258 | 24 | 547 | 274 | 547 | 274 | 546 | 275 |
| 473.astar | 24 | 642 | 262 | 644 | 262 | 645 | 261 | 24 | 642 | 262 | 644 | 262 | 645 | 261 |
| 483.xalancbmk | 24 | 333 | 498 | 333 | 498 | 333 | 497 | 24 | 333 | 498 | 333 | 498 | 333 | 497 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run. Large pages were not enabled for this run
Platform Notes
Sysinfo program /home/rcaneca/cpu2006/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ 8787f7622badcf24e01c368b1db4377c running on fam5.6 Mon Oct 8 05:22:26 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2640 0 @ 2.50GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 3 4 5 physical 1: cores 0 1 2 3 4 5 cache size : 15360 KB From /proc/meminfo MemTotal: 32850380 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.3 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.3 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.3 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux fam5.6 2.6.32-279.el6.x86_64 #1 SMP Wed Jun 13 18:24:36 EDT 2012 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Oct 6 05:08 SPEC is set to: /home/rcaneca/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_fam5-lv_home ext4 67G 2.1G 62G 4% /home (End of data from sysinfo program)
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/home/rcaneca/sh/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/rcaneca/sh/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
