SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro (Test Sponsor: Advanced Micro Devices)

Supermicro A+ Server 1022G-NTF,
AMD Opteron 6344

CPU2006 license: 49 Test date: Sep-2012
Test sponsor: Advanced Micro Devices Hardware Availability: Nov-2012
Tested by: Advanced Micro Devices Software Availability: Aug-2012

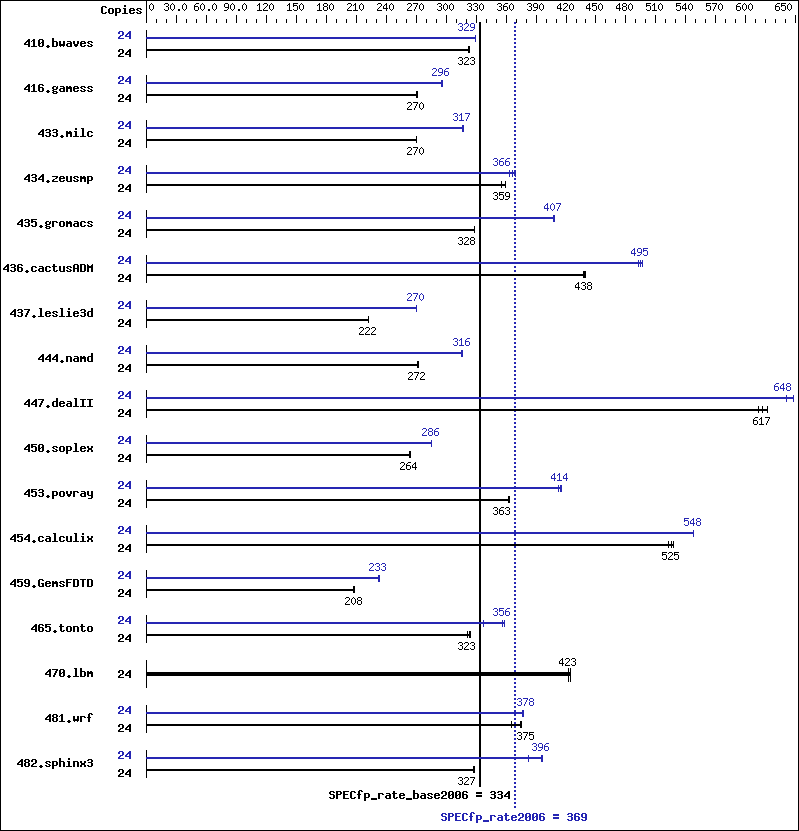

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6344
CPU Characteristics: AMD Turbo CORE technology up to 3.20 GHz
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 24 cores, 2 chips, 12 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 384 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 16 MB I+D on chip per chip, 8 MB shared / 6 cores
Other Cache: None
Memory: 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 1 x 250 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.3,
Kernel 2.6.32-279.el6.x86_64
Compiler: C/C++/Fortran: Version 4.5.2 of x86 Open64
Compiler Suite (from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 24 1011 323 1010 323 1010 323 24 990 330 990 329 991 329
416.gamess 24 1739 270 1740 270 1732 271 24 1593 295 1590 296 1585 297
433.milc 24 816 270 815 270 815 270 24 696 317 696 317 695 317
434.zeusmp 24 609 359 608 359 614 356 24 592 369 600 364 596 366
435.gromacs 24 522 328 521 329 522 328 24 421 407 420 408 421 407
436.cactusADM 24 656 437 652 440 655 438 24 580 495 582 493 578 496
437.leslie3d 24 1015 222 1015 222 1016 222 24 834 271 836 270 835 270
444.namd 24 709 271 709 272 707 272 24 609 316 609 316 609 316
447.dealII 24 448 613 445 617 442 622 24 424 648 424 648 428 641
450.soplex 24 759 264 758 264 760 263 24 701 286 701 286 701 286
453.povray 24 352 363 352 363 352 363 24 310 412 307 415 308 414
454.calculix 24 377 525 375 528 379 523 24 362 548 361 548 361 548
459.GemsFDTD 24 1222 208 1228 207 1223 208 24 1095 232 1094 233 1095 233
465.tonto 24 730 323 734 322 728 325 24 663 356 659 358 701 337
470.lbm 24 777 424 781 422 780 423 24 777 424 781 422 780 423
481.wrf 24 716 375 734 365 714 375 24 710 378 711 377 709 378
482.sphinx3 24 1424 328 1430 327 1430 327 24 1182 396 1224 382 1179 397

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst

Set vm/nr_hugepages=21504 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/root/work/cpu2006v1.2/amd1206-rate-libs-revA/32:/root/work/cpu2006v1.2/amd1206-rate-libs-revA/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso   -march=bdver1

C++ benchmarks:

 -Ofast   -static   -CG:load_exe=0   -OPT:malloc_alg=1   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -D__OPEN64_FAST_SET   -march=bdver1

Fortran benchmarks:

 -Ofast   -LNO:blocking=off   -LNO:simd_peel_align=on   -OPT:rsqrt=2   -OPT:unroll_size=256   -HP:bd=2m:heap=2m   -mso   -march=bdver1

Benchmarks using both Fortran and C:

 -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso   -march=bdver1   -LNO:blocking=off   -LNO:simd_peel_align=on   -OPT:rsqrt=2   -OPT:unroll_size=256

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore

Peak Optimization Flags

C benchmarks:

433.milc:  -Ofast   -CG:movnti=1   -CG:locs_best=on   -HP:bdt=2m:heap=2m   -IPA:plimit=7000   -IPA:callee_limit=1200   -OPT:struct_array_copy=2   -OPT:alias=field_sensitive   -mso   -march=bdver1
470.lbm:  basepeak = yes
482.sphinx3:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -m32   -IPA:plimit=1000   -OPT:malloc_alg=2   -CG:cmp_peep=on   -CG:p2align=0   -CG:load_exe=1   -CG:dsched=on   -INLINE:aggressive=on   -LNO:prefetch=2   -LNO:prefetch_ahead=4   -mso   -march=bdver2

C++ benchmarks:

444.namd:  -Ofast   -IPA:plimit=3000   -LNO:ignore_feedback=off   -CG:local_sched_alg=0   -CG:load_exe=0   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m   -LNO:if_select_conv=1   -OPT:alias=disjoint   -LNO:psimd_iso_unroll=ON   -march=bdver1
447.dealII:  -Ofast   -D__OPEN64_FAST_SET   -static   -INLINE:aggressive=on   -LNO:opt=1   -LNO:simd=2   -fno-emit-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -CG:movext_icmp=off   -TENV:frame_pointer=off   -march=bdver1
450.soplex:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:ignore_feedback=off   -INLINE:aggressive=on   -OPT:RO=1   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -fno-exceptions   -CG:p2align=0   -m32   -mno-fma4   -HP:bdt=2m:heap=2m   -WOPT:sib=on   -march=bdver1
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:pre_local_sched=off   -CG:p2align=0   -CG:p2align_split=on   -CG:dsched=on   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -OPT:transform=2   -OPT:alias=disjoint   -WOPT:aggcm=0   -march=bdver2

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:Ofast   -OPT:treeheight=on   -LNO:blocking=off   -LNO:ignore_feedback=off   -LNO:fu=4   -LNO:loop_model_simd=on   -LNO:simd_rm_unity_remainder=on   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -CG:cmp_peep=on   -march=bdver1
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:fu=6   -LNO:blocking=0   -LNO:simd=2   -OPT:ro=3   -OPT:recip=on   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m   -WOPT:sib=on   -march=bdver1
434.zeusmp:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off   -LNO:interchange=off   -IPA:plimit=1500   -HP:bdt=2m:heap=2m   -march=bdver1
437.leslie3d:  -Ofast   -CG:pre_minreg_level=2   -LNO:simd=0   -LNO:fusion=2   -HP:bdt=2m:heap=2m   -mso   -march=bdver1
459.GemsFDTD:  -Ofast   -IPA:plimit=1500   -OPT:unroll_size=1024   -OPT:unroll_times_max=16   -LNO:fission=2   -CG:local_sched_alg=2   -HP   -march=bdver1
465.tonto:  -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -CG:local_sched_alg=3   -IPA:plimit=525   -HP:bdt=2m:heap=2m   -march=bdver1

Benchmarks using both Fortran and C:

435.gromacs:  -Ofast   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m   -CG:local_sched_alg=2   -CG:load_exe=3   -GRA:unspill=on   -march=bdver1   -LNO:simd=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off   -LNO:prefetch=2   -LNO:pf2=0   -LNO:prefetch_ahead=4   -HP   -CG:locs_shallow_depth=1   -CG:load_exe=0   -CG:dsched=on   -WOPT:sib=on   -march=bdver1
454.calculix:  -Ofast   -OPT:unroll_size=256   -OPT:alias=disjoint   -GRA:optimize_boundary=on   -CG:dsched=on   -HP:bdt=2m:heap=2m   -march=bdver1
481.wrf:  -Ofast   -LNO:blocking=off   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -HP   -WOPT:sib=on   -march=bdver1

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-II.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-II.xml.
