| CPU2006 license: | 3175 | Test date: | Aug-2012 |
|---|---|---|---|
| Test sponsor: | Huawei | Hardware Availability: | May-2012 |
| Tested by: | Huawei | Software Availability: | Dec-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2680 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
| CPU MHz: | 2700 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 2 chips, 8 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC) |
| Disk Subsystem: | 1 x 300 GB SAS, 10K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux; Fortran: Version 12.1.0.225 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

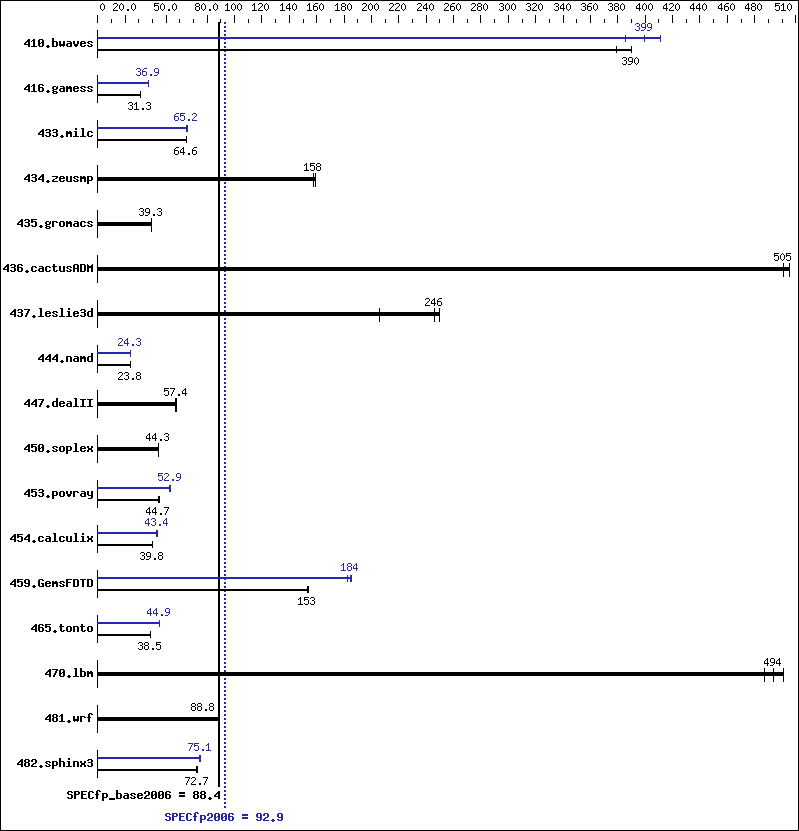

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 35.8 | 379 | 34.8 | 390 | 34.8 | 390 | 35.2 | 386 | 33.0 | 412 | 34.0 | 399 |
| 416.gamess | 624 | 31.4 | 626 | 31.3 | 627 | 31.2 | 531 | 36.9 | 531 | 36.9 | 531 | 36.9 |
| 433.milc | 142 | 64.6 | 142 | 64.6 | 142 | 64.6 | 141 | 65.2 | 141 | 65.3 | 141 | 65.2 |
| 434.zeusmp | 57.2 | 159 | 57.6 | 158 | 57.6 | 158 | 57.2 | 159 | 57.6 | 158 | 57.6 | 158 |
| 435.gromacs | 182 | 39.3 | 182 | 39.3 | 181 | 39.4 | 182 | 39.3 | 182 | 39.3 | 181 | 39.4 |
| 436.cactusADM | 23.7 | 505 | 23.9 | 501 | 23.7 | 505 | 23.7 | 505 | 23.9 | 501 | 23.7 | 505 |
| 437.leslie3d | 37.6 | 250 | 38.2 | 246 | 45.6 | 206 | 37.6 | 250 | 38.2 | 246 | 45.6 | 206 |
| 444.namd | 336 | 23.8 | 336 | 23.8 | 337 | 23.8 | 330 | 24.3 | 331 | 24.3 | 330 | 24.3 |
| 447.dealII | 199 | 57.4 | 200 | 57.1 | 199 | 57.6 | 199 | 57.4 | 200 | 57.1 | 199 | 57.6 |
| 450.soplex | 188 | 44.3 | 188 | 44.5 | 189 | 44.2 | 188 | 44.3 | 188 | 44.5 | 189 | 44.2 |
| 453.povray | 119 | 44.7 | 119 | 44.8 | 120 | 44.2 | 101 | 52.9 | 101 | 52.9 | 101 | 52.7 |
| 454.calculix | 207 | 39.8 | 208 | 39.7 | 207 | 39.9 | 190 | 43.4 | 191 | 43.2 | 190 | 43.5 |
| 459.GemsFDTD | 69.2 | 153 | 69.2 | 153 | 68.8 | 154 | 57.3 | 185 | 57.5 | 184 | 58.1 | 183 |
| 465.tonto | 255 | 38.6 | 256 | 38.5 | 256 | 38.5 | 219 | 44.9 | 219 | 44.9 | 220 | 44.8 |
| 470.lbm | 27.8 | 494 | 27.4 | 501 | 28.2 | 487 | 27.8 | 494 | 27.4 | 501 | 28.2 | 487 |
| 481.wrf | 127 | 88.2 | 126 | 88.8 | 126 | 88.8 | 127 | 88.2 | 126 | 88.8 | 126 | 88.8 |
| 482.sphinx3 | 269 | 72.4 | 267 | 72.9 | 268 | 72.7 | 259 | 75.2 | 260 | 75.1 | 263 | 74.1 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Select only test related files when installing the operating system
Platform Notes
BIOS configuration: Intel Hyper-Threading set to Disabled Set Power Efficiency Mode to Performance Sysinfo program /spec/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on RH62-rebuild Tue Aug 21 15:05:40 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Genuine Intel(R) CPU @ 2.70GHz 2 "physical id"s (chips) 16 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 8 physical 0: cores 0 1 2 3 4 5 6 7 physical 1: cores 0 1 2 3 4 5 6 7 cache size : 20480 KB From /proc/meminfo MemTotal: 132124032 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux RH62-rebuild 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Aug 21 09:13 SPEC is set to: /spec Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext4 289G 52G 222G 19% / Additional information from dmidecode: (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact,0,1" LD_LIBRARY_PATH = "/spec/libs/32:/spec/libs/64" OMP_NUM_THREADS = "16" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
Fortran benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
Benchmarks using both Fortran and C:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 -ansi-alias |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -xAVX -ipo -O3 -no-prec-div -unroll2 -ansi-alias -parallel |
C++ benchmarks:
| 444.namd: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -parallel -static |
| 416.gamess: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel |
| 465.tonto: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | -xAVX -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias |
| 481.wrf: | basepeak = yes |
