| CPU2006 license: | 9019 | Test date: | Aug-2012 |
|---|---|---|---|
| Test sponsor: | Cisco Systems | Hardware Availability: | Aug-2012 |
| Tested by: | Cisco Systems | Software Availability: | Feb-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2403 |
| CPU Characteristics: | |
| CPU MHz: | 1800 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 10 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-12800R-11, ECC, running at 1066 MHz and CL9) |
| Disk Subsystem: | 146 GB 15000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.3.293 of Intel C++ Studio XE for Linux; Fortran: Version 12.1.3.293 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

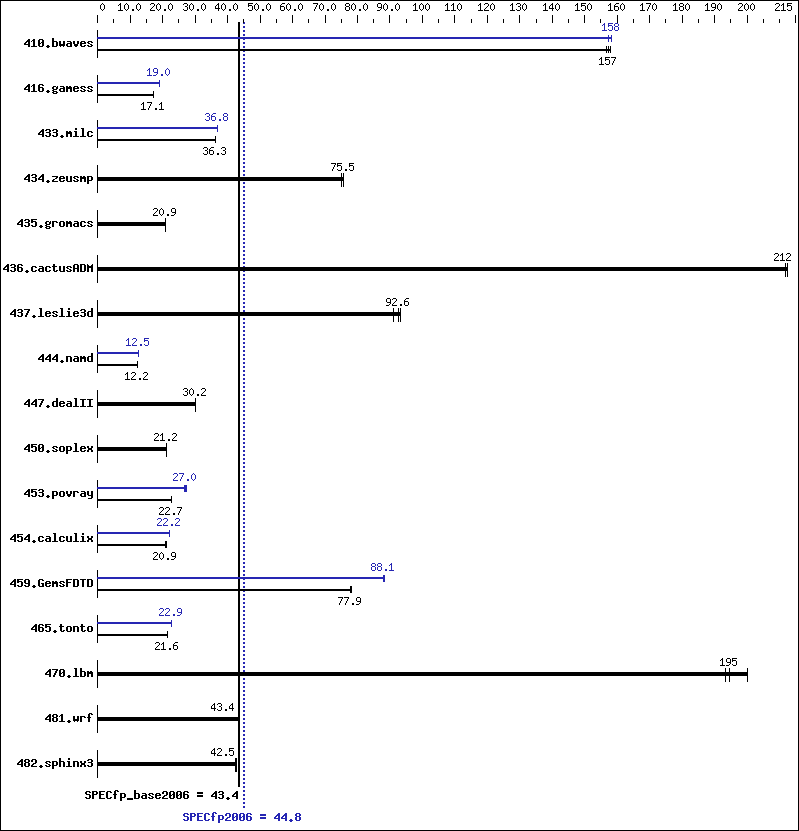

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 86.1 | 158 | 86.4 | 157 | 86.6 | 157 | 85.8 | 158 | 86.4 | 157 | 85.8 | 158 |
| 416.gamess | 1144 | 17.1 | 1141 | 17.2 | 1148 | 17.1 | 1033 | 19.0 | 1036 | 18.9 | 1032 | 19.0 |
| 433.milc | 253 | 36.3 | 253 | 36.3 | 253 | 36.3 | 249 | 36.8 | 249 | 36.8 | 249 | 36.8 |
| 434.zeusmp | 121 | 75.2 | 120 | 75.7 | 120 | 75.5 | 121 | 75.2 | 120 | 75.7 | 120 | 75.5 |
| 435.gromacs | 342 | 20.9 | 342 | 20.9 | 342 | 20.9 | 342 | 20.9 | 342 | 20.9 | 342 | 20.9 |
| 436.cactusADM | 56.4 | 212 | 56.2 | 213 | 56.4 | 212 | 56.4 | 212 | 56.2 | 213 | 56.4 | 212 |
| 437.leslie3d | 103 | 91.2 | 101 | 92.6 | 101 | 93.4 | 103 | 91.2 | 101 | 92.6 | 101 | 93.4 |
| 444.namd | 655 | 12.2 | 655 | 12.2 | 655 | 12.2 | 644 | 12.5 | 644 | 12.5 | 645 | 12.4 |
| 447.dealII | 379 | 30.1 | 379 | 30.2 | 379 | 30.2 | 379 | 30.1 | 379 | 30.2 | 379 | 30.2 |
| 450.soplex | 393 | 21.2 | 392 | 21.3 | 395 | 21.1 | 393 | 21.2 | 392 | 21.3 | 395 | 21.1 |
| 453.povray | 233 | 22.8 | 234 | 22.7 | 236 | 22.6 | 197 | 27.0 | 195 | 27.2 | 198 | 26.9 |
| 454.calculix | 394 | 20.9 | 392 | 21.1 | 394 | 20.9 | 374 | 22.1 | 371 | 22.2 | 372 | 22.2 |
| 459.GemsFDTD | 136 | 77.9 | 136 | 77.8 | 136 | 78.1 | 120 | 88.1 | 121 | 87.9 | 120 | 88.2 |
| 465.tonto | 455 | 21.6 | 457 | 21.5 | 456 | 21.6 | 430 | 22.9 | 430 | 22.9 | 431 | 22.8 |
| 470.lbm | 68.6 | 200 | 70.6 | 195 | 71.0 | 193 | 68.6 | 200 | 70.6 | 195 | 71.0 | 193 |
| 481.wrf | 258 | 43.2 | 257 | 43.5 | 258 | 43.4 | 258 | 43.2 | 257 | 43.5 | 258 | 43.4 |
| 482.sphinx3 | 456 | 42.7 | 459 | 42.5 | 459 | 42.5 | 456 | 42.7 | 459 | 42.5 | 459 | 42.5 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
Sysinfo program /opt/cpu2006-1.2/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on localhost.localdomain Thu Aug 2 04:02:15 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2403 0 @ 1.80GHz 2 "physical id"s (chips) 8 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 4 siblings : 4 physical 0: cores 0 1 2 3 physical 1: cores 0 1 2 3 cache size : 10240 KB From /proc/meminfo MemTotal: 99042964 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.2 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux localhost.localdomain 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Aug 1 18:13 SPEC is set to: /opt/cpu2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext4 134G 10G 118G 8% / Additional information from dmidecode: Memory: 12x 0xCE00 M393B1K70DH0-YK0 8 GB 1600 MHz 2 rank (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact,1,0" LD_LIBRARY_PATH = "/opt/cpu2006-1.2/libs/32:/opt/cpu2006-1.2/libs/64" OMP_NUM_THREADS = "8" Binaries compiled on a system with 2 X Intel Xeon E5-2690 CPU + 128 GB memory using RHEL 6.2 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
Fortran benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
Benchmarks using both Fortran and C:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 -ansi-alias |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -parallel -static |
| 416.gamess: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel |
| 465.tonto: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | -xAVX -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias |
| 481.wrf: | basepeak = yes |
