| CPU2006 license: | 3 | Test date: | May-2012 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Jun-2012 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Mar-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2620 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.50 GHz |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC, running at 1333 MHz and CL9) |
| Disk Subsystem: | 2 x 146 GB 15 K SAS, RAID 1 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2, (Santiago) Kernel 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.2.273 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | HP Array Configuration Utility, CLI version |

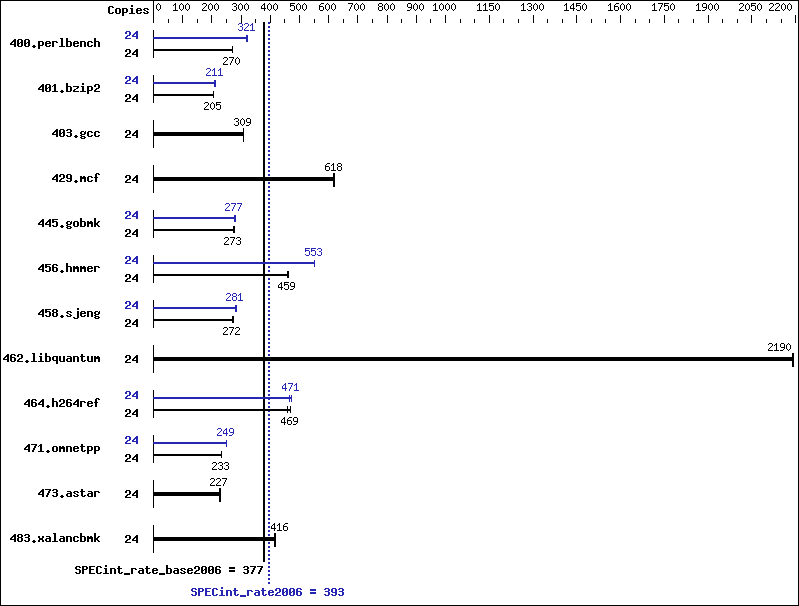

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 867 | 270 | 867 | 270 | 868 | 270 | 24 | 730 | 321 | 730 | 321 | 735 | 319 |
| 401.bzip2 | 24 | 1130 | 205 | 1135 | 204 | 1130 | 205 | 24 | 1099 | 211 | 1097 | 211 | 1101 | 210 |
| 403.gcc | 24 | 627 | 308 | 625 | 309 | 626 | 309 | 24 | 627 | 308 | 625 | 309 | 626 | 309 |
| 429.mcf | 24 | 354 | 618 | 354 | 619 | 355 | 617 | 24 | 354 | 618 | 354 | 619 | 355 | 617 |
| 445.gobmk | 24 | 923 | 273 | 924 | 272 | 913 | 276 | 24 | 900 | 280 | 909 | 277 | 908 | 277 |
| 456.hmmer | 24 | 484 | 462 | 488 | 459 | 488 | 459 | 24 | 405 | 553 | 405 | 553 | 405 | 552 |
| 458.sjeng | 24 | 1064 | 273 | 1071 | 271 | 1067 | 272 | 24 | 1026 | 283 | 1033 | 281 | 1032 | 281 |
| 462.libquantum | 24 | 227 | 2190 | 227 | 2190 | 227 | 2190 | 24 | 227 | 2190 | 227 | 2190 | 227 | 2190 |
| 464.h264ref | 24 | 1133 | 469 | 1156 | 459 | 1133 | 469 | 24 | 1141 | 465 | 1127 | 471 | 1120 | 474 |
| 471.omnetpp | 24 | 646 | 232 | 643 | 233 | 643 | 233 | 24 | 603 | 249 | 602 | 249 | 602 | 249 |
| 473.astar | 24 | 741 | 227 | 740 | 228 | 743 | 227 | 24 | 741 | 227 | 740 | 228 | 743 | 227 |
| 483.xalancbmk | 24 | 398 | 417 | 398 | 416 | 398 | 416 | 24 | 398 | 417 | 398 | 416 | 398 | 416 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1 > /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc> Drive Write Cache set to Enabled in HP Array Configuration Utility, CLI version Accelerator Ratio for Reads/Writes set to = 100% Read / 0% Write in HP Array Configuration Utility, CLI version
Platform Notes
BIOS Configuration: HP Power Profile set to Maxium Performance Energy/Performance Bias is set to Maximum Performance Thermal Configuration set to Maximum Cooling Collaborative Power Control set to Disabled Processor Power and Utilization Monitoring set to Disabled Sysinfo program /cpu2006/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on Dl360p-exp-boot Fri May 18 11:40:12 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2620 0 @ 2.00GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 3 4 5 physical 1: cores 0 1 2 3 4 5 cache size : 15360 KB From /proc/meminfo MemTotal: 132120000 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.2 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux Dl360p-exp-boot 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 May 18 11:39 SPEC is set to: /cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sda3 ext4 133G 113G 13G 90% / Additional information from dmidecode: BIOS HP P71 05/10/2012 Memory: 16x HP Not Specified 8 GB 1600 MHz 2 rank (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/cpu2006/libs/32:/cpu2006/libs/64" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
