| CPU2006 license: | 3175 | Test date: | Jul-2012 |
|---|---|---|---|
| Test sponsor: | Huawei | Hardware Availability: | May-2012 |
| Tested by: | Huawei | Software Availability: | Dec-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E3-1220 v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
| CPU MHz: | 3100 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (8 x 8 GB 2Rx4 PC3-12800R-11, ECC) |
| Disk Subsystem: | 1 x 300 GB SAS, 10K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

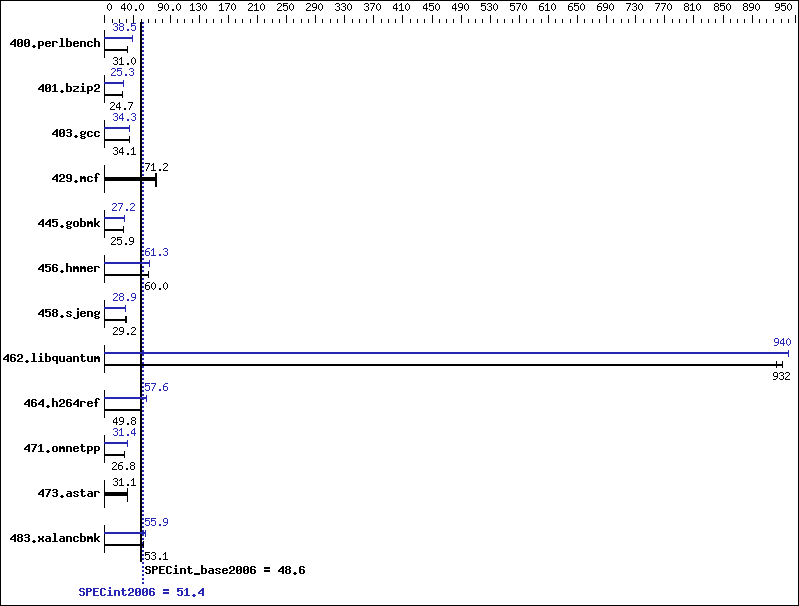

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 316 | 31.0 | 314 | 31.1 | 316 | 31.0 | 254 | 38.5 | 254 | 38.5 | 255 | 38.4 |
| 401.bzip2 | 391 | 24.7 | 391 | 24.7 | 391 | 24.7 | 381 | 25.3 | 381 | 25.3 | 380 | 25.4 |
| 403.gcc | 236 | 34.1 | 236 | 34.1 | 236 | 34.1 | 235 | 34.3 | 235 | 34.3 | 235 | 34.3 |
| 429.mcf | 128 | 71.3 | 130 | 70.3 | 128 | 71.2 | 128 | 71.3 | 130 | 70.3 | 128 | 71.2 |
| 445.gobmk | 404 | 25.9 | 405 | 25.9 | 405 | 25.9 | 386 | 27.2 | 386 | 27.2 | 386 | 27.2 |
| 456.hmmer | 156 | 60.0 | 155 | 60.0 | 156 | 60.0 | 152 | 61.3 | 152 | 61.3 | 152 | 61.3 |
| 458.sjeng | 414 | 29.2 | 414 | 29.3 | 414 | 29.2 | 419 | 28.9 | 419 | 28.9 | 419 | 28.9 |
| 462.libquantum | 22.2 | 932 | 22.2 | 932 | 22.4 | 923 | 22.0 | 940 | 22.0 | 940 | 22.0 | 940 |
| 464.h264ref | 445 | 49.8 | 445 | 49.8 | 444 | 49.8 | 384 | 57.7 | 384 | 57.6 | 385 | 57.5 |
| 471.omnetpp | 233 | 26.8 | 235 | 26.6 | 232 | 26.9 | 199 | 31.4 | 198 | 31.6 | 200 | 31.2 |
| 473.astar | 227 | 30.9 | 225 | 31.2 | 226 | 31.1 | 227 | 30.9 | 225 | 31.2 | 226 | 31.1 |
| 483.xalancbmk | 130 | 53.1 | 129 | 53.6 | 130 | 53.0 | 124 | 55.9 | 122 | 56.4 | 124 | 55.8 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Select only test related files when installing the operating system
Platform Notes
BIOS configuration: Set Power Efficiency Mode to Performance Sysinfo program /spec/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on RH62-com Wed Jul 11 13:10:46 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E3-1220 V2 @ 3.10GHz 1 "physical id"s (chips) 4 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 4 siblings : 4 physical 0: cores 0 1 2 3 cache size : 8192 KB From /proc/meminfo MemTotal: 16302876 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux RH62-com 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jul 10 20:05 SPEC is set to: /spec Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext4 289G 49G 226G 18% / Additional information from dmidecode: Memory: 2x Samsung M391B1G73BH0-CK0 8 GB 1600 MHz 2 rank
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact,0,1" LD_LIBRARY_PATH = "/spec/libs/32:/spec/libs/64" OMP_NUM_THREADS = "4" Binaries compiled on a system with 2 x Xeon X5645 CPU + 16GB memory using RHEL 6.1
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/smartheap -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xAVX -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | -xAVX -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
