SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Oracle Corporation

Sun Server X3-2L (Intel Xeon E5-2690 2.9GHz)

CPU2006 license: 6 Test date: Apr-2012
Test sponsor: Oracle Corporation Hardware Availability: Apr-2012
Tested by: Oracle Corporation Software Availability: Jun-2012

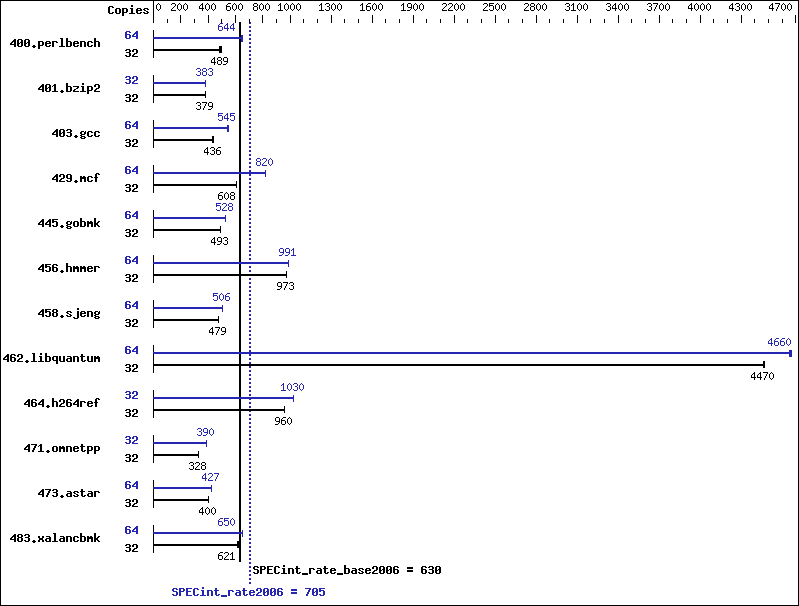

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2690
CPU Characteristics: Intel Turbo Boost Technology up to 3.80 GHz
CPU MHz: 2900
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip, 2 threads/core
CPU(s) orderable: 1 or 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory: 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 1 x 600 GB 10K RPM SAS
Other Hardware: None
Software
Operating System: Oracle Solaris 11 11/11 (SRU 03)
Compiler: C/C++: Version 12.3 of Oracle Solaris Studio
(patch update 1, tested with nightly build
20120313)
Auto Parallel: No
File System: zfs
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V9.01

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 32 649 482 628 498 640 489 64 973 642 958 653 972 644
401.bzip2 32 815 379 812 380 816 379 32 807 383 805 383 812 380
403.gcc 32 594 434 589 437 591 436 64 945 545 944 546 946 544
429.mcf 32 480 609 480 608 481 607 64 711 820 712 819 711 821
445.gobmk 32 680 493 680 493 681 493 64 1271 528 1272 528 1270 529
456.hmmer 32 306 974 308 971 307 973 64 602 991 603 991 603 990
458.sjeng 32 808 479 809 479 811 478 64 1531 506 1530 506 1530 506
462.libquantum 32 148 4470 148 4460 148 4470 64 285 4660 284 4670 284 4660
464.h264ref 32 738 960 738 960 738 959 32 689 1030 690 1030 691 1030
471.omnetpp 32 610 328 610 328 610 328 32 513 390 512 390 513 390
473.astar 32 563 399 562 400 562 400 64 1053 427 1051 427 1052 427
483.xalancbmk 32 358 616 353 626 355 621 64 675 654 679 650 679 650

Submit Notes

 The config file option 'submit' was used to bind processes to CPU threads with pbind(1)

Operating System Notes

 ulimit -s 10000  (shell): increases stack

 /etc/system parameters
    autoup=1000
    zfs:zfs_arc_max=0x400000000
    zfs:zfs_arc_min=0x400000000
    ncsize=0x10000
    lpg_alloc_prefer=1

 gzip compression set using "zfs set compression=gzip <zfs-filesystem>"

Platform Notes

 Default BIOS Settings were used, except:
   Energy Performance set to Performance

 Oracle's Sun Server X3-2L was formerly known as the Sun Fire X4270 M3

 Single processor configuration of this system is available as of Sep-2012

 Sysinfo program /export/home/gnana/cpu2006v1.2/Docs/sysinfo
 : 6775  2011-08-16 #f7622badcf24e01c368b1db4377c
 running on bur398-107 Thu Apr  5 13:43:53 2012

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo


 From /usr/sbin/psrinfo -pv
  Intel(r) Xeon(r) CPU E5-2690 0 @ 2.90GHz
  x86 (GenuineIntel 206D7 family 6 model 45 step 7 clock 2900 MHz)

 /usr/sbin/psrinfo -p:   2 chips
 /usr/sbin/psrinfo -pv | grep "core has" | wc -l:  16 cores
 /usr/sbin/psrinfo | wc -l: 32 threads

 /usr/sbin/prtconf | grep "Memory size:": 131062 Megabytes

 /etc/release:
                              Oracle Solaris 11 11/11 X86
 uname -a:
 SunOS bur398-107 5.11 11.0 i86pc i386 i86pc

 disk: df -h
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export/home      547G   3.4G        94G     4%    /export/home

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "1"

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_X64   -DSPEC_CPU_LP64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_SOLARIS   -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_SOLARIS   -DSPEC_CPU_LP64
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -g   -fast   -xipo=2   -m64   -xaddr32   -xpagesize=2M   -xalias_level=std

C++ benchmarks:

 -fast   -xipo=2   -m32   -xpagesize=2M   -xalias_level=compatible   -library=stlport4   -lfast

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_X64   -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xprefetch=no%auto   -xtarget=nehalem   -xipo=1   -m64   -xpagesize=2M   -xalias_level=std   -lbsdmalloc
401.bzip2:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=strong
403.gcc:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m32   -xpagesize=2M   -xalias_level=std   -W2,-Abuiltin_opt:calloc_no_support=on
429.mcf:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m32   -xpagesize_heap=2M   -xpagesize_stack=4k   -xalias_level=std
445.gobmk:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -m64   -xpagesize=2M   -xrestrict   -xalias_level=strong
456.hmmer:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=4k   -xalias_level=strong
458.sjeng:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std
462.libquantum:  -g   -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std   -xunroll=8
464.h264ref:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m32   -xpagesize=2M   -xalias_level=strong

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xalias_level=compatible   -library=stlport4   -L/export/home/gnana/cpu2006v1.2/SmartHeap_9/lib/ -R/export/home/gnana/cpu2006v1.2/SmartHeap_9/lib/ -lsmartheap
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -xrestrict   -library=stlport4   -lfast
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xunroll=8   -library=stlport4   -lfast

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-x86_64.html,
http://www.spec.org/cpu2006/flags/Oracle-platform-x86_64.CPUv1.2-RevA.20120425.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-x86_64.xml,
http://www.spec.org/cpu2006/flags/Oracle-platform-x86_64.CPUv1.2-RevA.20120425.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Thu Jul 24 11:51:58 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 31 July 2012.
