SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DH77KC motherboard (Intel Core i5-3450)

CPU2006 license: 13 Test date: May-2012
Test sponsor: Intel Corporation Hardware Availability: Apr-2012
Tested by: Intel Corporation Software Availability: Apr-2011

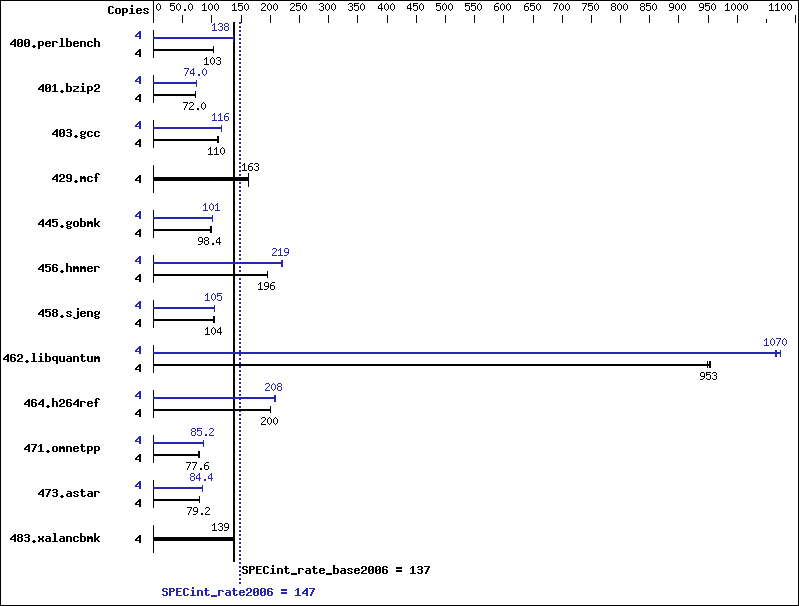

Benchmark results graph
Hardware
CPU Name: Intel Core i5-3450
CPU Characteristics: Intel Turbo Boost Technology up to 3.50 GHz
CPU MHz: 3100
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 8 GB (2 x 4 GB 2Rx4 PC3-12800U-11)
Disk Subsystem: 1 TB Seagate SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows 7 Ultimate (64-bit)
6.1.7601 Service Pack 1 Build 7601
Compiler: C/C++: Version 12.1.0.229 of Intel C++ Studio XE
for Windows;
Libraries: Version 15.00.30729.01 of Microsoft
Visual Studio 2008 Professional SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 9.01 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 381   103   379   103   380   103   4 284   138   284   138   284   138
401.bzip2 4 540   71.6 537   72.0 537   72.0 4 519   74.4 521   74.0 521   74.0
403.gcc 4 289   111   292   110   292   110   4 278   116   277   116   278   116
429.mcf 4 224   163   223   163   225   162   4 224   163   223   163   225   162
445.gobmk 4 427   98.4 425   98.8 426   98.4 4 415   101   414   101   416   101
456.hmmer 4 191   196   191   196   191   196   4 170   219   170   219   169   221
458.sjeng 4 466   104   466   104   467   104   4 463   104   463   105   463   105
462.libquantum 4 87.0 953   87.3 949   86.9 954   4 77.2 1070   77.8 1070   77.7 1070
464.h264ref 4 441   201   442   200   441   200   4 428   207   427   208   425   208
471.omnetpp 4 321   77.6 321   78.0 321   77.6 4 293   85.6 293   85.2 293   85.2
473.astar 4 355   79.2 354   79.2 355   79.2 4 333   84.4 332   84.4 333   84.4
483.xalancbmk 4 198   139   199   139   198   139   4 198   139   199   139   198   139

Compiler Invocation Notes

To compile these binaries, the Intel Compiler was set up to generate 32-bit binaries with the command:
"ipsxe-comp-vars.bat ia32 vs2008" (shortcut provided in the Intel(r) Parallel Studio XE 2011 program folder)

Submit Notes


 Processes were bound to specific processors using the start command with the /affinity switch.
 The config file option 'submit' was used to generate the affinity mask for each process.

Platform Notes

 Sysinfo program C:\CPU200~1.17A/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on CltE840F20AA4A3 Wed May 16 04:02:26 2012

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Ultimate
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: INTEL_
 System Model  : DH77KC__
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 58 Stepping 9 GenuineIntel ~3101 Mhz
 BIOS Version  : Intel Corp. KCH7710H.86A.0069.2012.0224.1825, 2/24/2012
 Total Physical Memory: 8,090 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 1024
 L3CacheSize   : 6144
 MaxClockSpeed : 3101
 Name          : Intel(R) Core(TM) i5-3450 CPU @ 3.10GHz
 NumberOfCores : 4
 NumberOfLogicalProcessors: 4

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DWIN32   -DSPEC_CPU_NO_INTTYPES
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000

C++ benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icl -Qvc9   -Qstd=c99
456.hmmer:  C:\Program Files (x86)\Intel\Composer XE 2011 SP1.229/bin/intel64/icl.exe
458.sjeng:  C:\Program Files (x86)\Intel\Composer XE 2011 SP1.229/bin/intel64/icl.exe
462.libquantum:  C:\Program Files (x86)\Intel\Composer XE 2011 SP1.229/bin/intel64/icl.exe   -Qstd=c99

C++ benchmarks (except as noted below):

 icl -Qvc9
473.astar:  C:\Program Files (x86)\Intel\Composer XE 2011 SP1.229/bin/intel64/icl.exe

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
456.hmmer:  -DSPEC_CPU_P64
458.sjeng:  -DSPEC_CPU_P64
462.libquantum:  -DSPEC_CPU_P64
464.h264ref:  -DWIN32   -DSPEC_CPU_NO_INTTYPES
473.astar:  -DSPEC_CPU_P64
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE
401.bzip2:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qansi-alias   /F512000000
403.gcc:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
429.mcf:  basepeak = yes
445.gobmk:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O2   -Qprec-div-   -Qansi-alias   /F512000000
456.hmmer:  -Qauto-ilp32   -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
458.sjeng:  -Qauto-ilp32   -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   /F512000000
462.libquantum:  -Qauto-ilp32   -QxAVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
464.h264ref:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   /F512000000

C++ benchmarks:

471.omnetpp:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=block   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE
473.astar:  -Qauto-ilp32   -QxAVX   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca
456.hmmer:  -link -LIBPATH:C:\Program Files (x86)\Intel\Composer XE 2011 SP1.229/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64
458.sjeng:  -link -LIBPATH:C:\Program Files (x86)\Intel\Composer XE 2011 SP1.229/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64
462.libquantum:  -link -LIBPATH:C:\Program Files (x86)\Intel\Composer XE 2011 SP1.229/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64

C++ benchmarks:

473.astar:  -link -LIBPATH:C:\Program Files (x86)\Intel\Composer XE 2011 SP1.229/compiler/lib/intel64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib/AMD64   -link -LIBPATH:C:/Program Files (x86)/Microsoft Visual Studio 9.0/VC/lib   -link -LIBPATH:C:/Program Files (x86)/Microsoft SDKs/Windows/v7.0A/lib/x64

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-windows.20120117.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-windows.20120117.xml.
