SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Acer Incorporated

Acer AR385 F1
AMD Opteron 6276

CPU2006 license: 97 Test date: May-2012
Test sponsor: Acer Incorporated Hardware Availability: Nov-2011
Tested by: Acer Incorporated Software Availability: Dec-2011

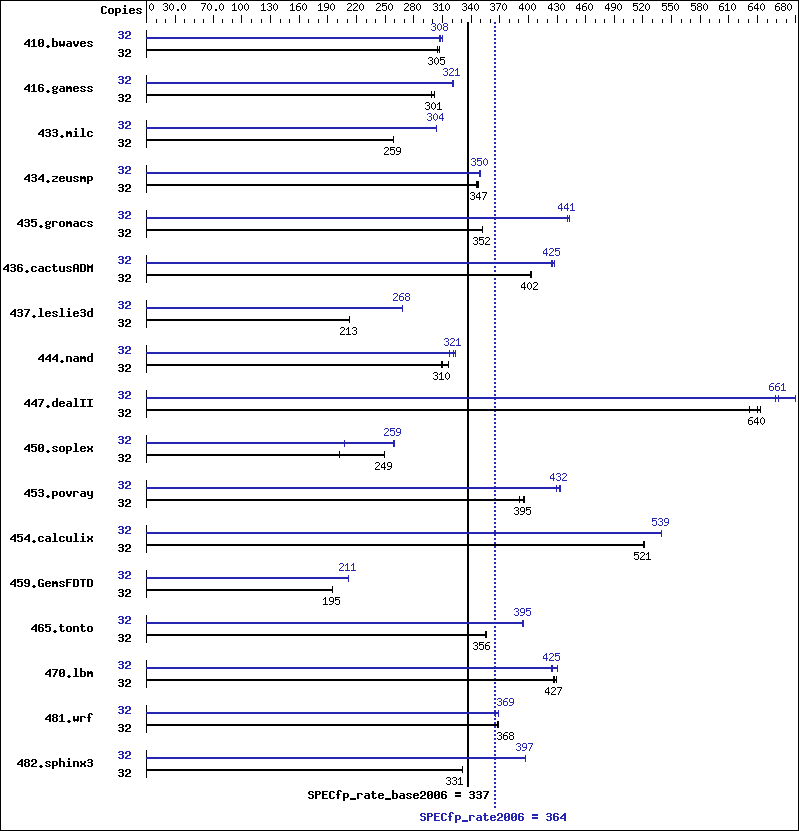

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6276
CPU Characteristics: AMD Turbo CORE technology up to 3.20 GHz
CPU MHz: 2300
FPU: Integrated
CPU(s) enabled: 32 cores, 2 chips, 16 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 512 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory: 64 GB (8 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 1 x 160 GB SSD
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.2,
Kernel 2.6.32-220.el6.x86_64
Compiler: C/C++/Fortran: Version 4.5.1 of x86 Open64
Compiler Suite (from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 32 1427 305 1418 307 1427 305 32 1415 307 1404 310 1412 308
416.gamess 32 2076 302 2078 301 2097 299 32 1954 321 1952 321 1948 322
433.milc 32 1135 259 1135 259 1136 259 32 967 304 966 304 967 304
434.zeusmp 32 838 347 840 347 842 346 32 833 350 832 350 834 349
435.gromacs 32 648 352 649 352 649 352 32 518 441 516 443 518 441
436.cactusADM 32 951 402 949 403 951 402 32 902 424 895 427 900 425
437.leslie3d 32 1413 213 1413 213 1413 213 32 1121 268 1123 268 1121 268
444.namd 32 831 309 811 316 829 310 32 799 321 794 323 808 318
447.dealII 32 572 640 569 643 580 631 32 553 661 538 680 556 659
450.soplex 32 1321 202 1070 249 1072 249 32 1288 207 1031 259 1029 259
453.povray 32 430 396 435 391 431 395 32 394 432 393 434 396 430
454.calculix 32 507 521 507 521 508 520 32 490 539 490 539 489 539
459.GemsFDTD 32 1745 195 1741 195 1742 195 32 1606 211 1606 211 1604 212
465.tonto 32 884 356 883 357 886 355 32 798 395 798 395 799 394
470.lbm 32 1024 429 1031 426 1030 427 32 1021 431 1033 425 1036 424
481.wrf 32 972 368 971 368 970 369 32 979 365 969 369 969 369
482.sphinx3 32 1885 331 1883 331 1884 331 32 1572 397 1570 397 1572 397

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Transparent huge pages were enabled for this run (OS default)

Huge pages were not configured for this run.

Platform Notes

 BIOS Settings:
PowerNow = Disabled
Fan Speed Control Modes = Full Speed

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/usr/cpu2006/amd1104-rate-libs-revC/32:/usr/cpu2006/amd1104-rate-libs-revC/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6274 chips + 64GB Memory using RHEL 6.1

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -march=bdver1   -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso

C++ benchmarks:

 -march=bdver1   -Ofast   -static   -CG:load_exe=0   -OPT:malloc_alg=1   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -D__OPEN64_FAST_SET

Fortran benchmarks:

 -march=bdver1   -Ofast   -LNO:blocking=off   -OPT:rsqrt=2   -OPT:unroll_size=256   -HP:bd=2m:heap=2m   -mso

Benchmarks using both Fortran and C:

 -march=bdver1   -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso   -LNO:blocking=off   -OPT:rsqrt=2   -OPT:unroll_size=256

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -march=bdver1   -Ofast   -CG:movnti=1   -CG:locs_best=on   -HP:bdt=2m:heap=2m   -IPA:plimit=7000   -IPA:callee_limit=1200   -OPT:struct_array_copy=2   -OPT:alias=field_sensitive   -mso
470.lbm:  -march=bdver1   -Ofast   -CG:cmp_peep=on   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -HP:bdt=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso
482.sphinx3:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -IPA:plimit=1000   -OPT:malloc_alg=2   -CG:cmp_peep=on   -CG:local_sched_alg=2   -CG:p2align=0   -INLINE:aggressive=on   -LNO:prefetch=2   -LNO:prefetch_ahead=4   -mso

C++ benchmarks:

444.namd:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -IPA:plimit=3000   -LNO:ignore_feedback=off   -CG:local_sched_alg=2   -CG:load_exe=0   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m
447.dealII:  -march=bdver1   -Ofast   -D__OPEN64_FAST_SET   -static   -INLINE:aggressive=on   -LNO:opt=0   -LNO:simd=0   -fno-emit-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -CG:movext_icmp=off   -TENV:frame_pointer=off
450.soplex:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:ignore_feedback=off   -INLINE:aggressive=on   -OPT:RO=1   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -fno-exceptions   -CG:p2align=0   -m32   -HP:bdt=2m:heap=2m   -WOPT:sib=on
453.povray:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:pre_local_sched=off   -CG:p2align=0   -CG:p2align_split=on   -CG:dsched=on   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -OPT:transform=2   -OPT:alias=disjoint   -WOPT:aggcm=0

Fortran benchmarks:

410.bwaves:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:Ofast   -OPT:treeheight=on   -LNO:blocking=off   -LNO:ignore_feedback=off   -LNO:fu=4   -LNO:loop_model_simd=on   -LNO:simd_rm_unity_remainder=on   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -CG:cmp_peep=on
416.gamess:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:fu=6   -LNO:blocking=0   -LNO:simd=0   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256   -OPT:unroll_times_max=2   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m   -WOPT:sib=on
434.zeusmp:  -march=bdver1   -Ofast   -LNO:blocking=off   -LNO:interchange=off   -IPA:plimit=1500   -HP:bdt=2m:heap=2m
437.leslie3d:  -march=bdver1   -Ofast   -CG:pre_minreg_level=2   -LNO:simd=0   -LNO:fusion=2   -HP:bdt=2m:heap=2m   -mso
459.GemsFDTD:  -march=bdver1   -Ofast   -IPA:plimit=1500   -OPT:unroll_size=0   -LNO:fission=2   -CG:load_exe=0   -CG:local_sched_alg=2   -HP
465.tonto:  -march=bdver1   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525   -HP:bdt=2m:heap=2m

Benchmarks using both Fortran and C:

435.gromacs:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m   -CG:local_sched_alg=2   -GRA:unspill=ON   -CG:load_exe=3   -LNO:simd=3
436.cactusADM:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off   -LNO:prefetch=2   -HP   -CG:locs_shallow_depth=1   -CG:load_exe=0   -CG:dsched=on   -WOPT:sib=on
454.calculix:  -march=bdver1   -Ofast   -OPT:unroll_size=256   -GRA:optimize_boundary=on   -CG:dsched=on   -HP:bdt=2m:heap=2m
481.wrf:  -march=bdver1   -Ofast   -LNO:blocking=off   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -CG:load_exe=1   -HP   -WOPT:sib=on

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd-acer-platform-rate-revC.html,
http://www.spec.org/cpu2006/flags/x86-open64-451-flags-rate-revC-I.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/amd-acer-platform-rate-revC.xml,
http://www.spec.org/cpu2006/flags/x86-open64-451-flags-rate-revC-I.xml.
