| CPU2006 license: | 55 | Test date: | Apr-2012 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | May-2012 |
| Tested by: | Dell Inc. | Software Availability: | Feb-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2450L |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.30 GHz |
| CPU MHz: | 1800 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 2 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC) |
| Disk Subsystem: | 1 x 1 TB 7200 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP2 (x86_64) 3.0.13-0.27-default |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux; Fortran: Version 12.1.0.225 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (add definition here) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

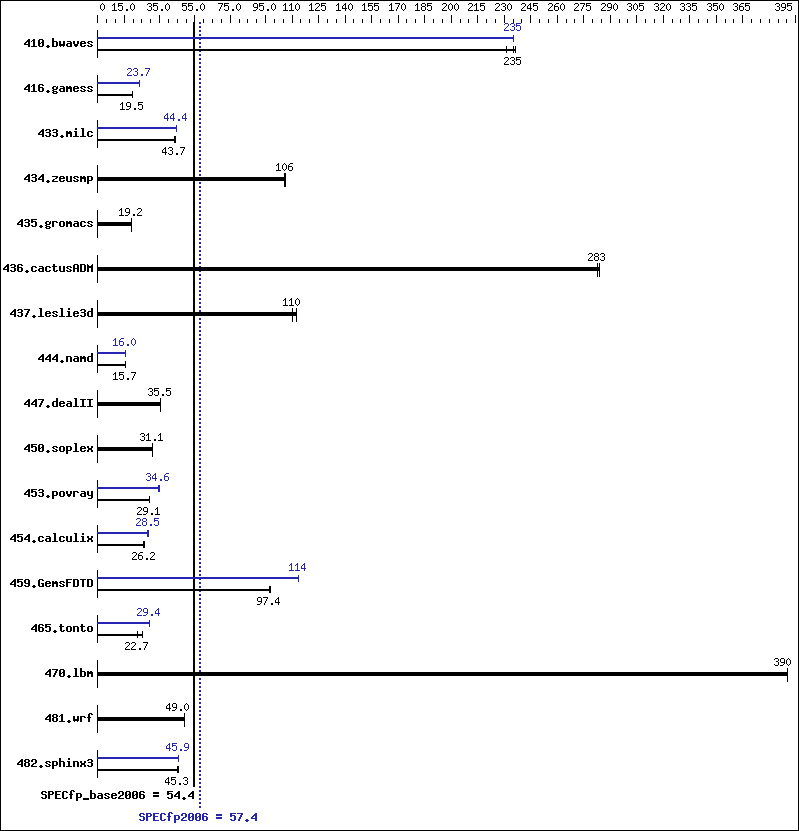

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 58.7 | 231 | 57.5 | 236 | 57.7 | 235 | 57.7 | 235 | 57.7 | 235 | 57.7 | 235 |
| 416.gamess | 1004 | 19.5 | 1008 | 19.4 | 1004 | 19.5 | 826 | 23.7 | 826 | 23.7 | 825 | 23.7 |
| 433.milc | 210 | 43.7 | 210 | 43.7 | 210 | 43.7 | 207 | 44.4 | 207 | 44.4 | 207 | 44.4 |
| 434.zeusmp | 86.1 | 106 | 85.9 | 106 | 85.9 | 106 | 86.1 | 106 | 85.9 | 106 | 85.9 | 106 |
| 435.gromacs | 372 | 19.2 | 370 | 19.3 | 377 | 19.0 | 372 | 19.2 | 370 | 19.3 | 377 | 19.0 |
| 436.cactusADM | 42.3 | 283 | 42.1 | 284 | 42.3 | 283 | 42.3 | 283 | 42.1 | 284 | 42.3 | 283 |
| 437.leslie3d | 85.3 | 110 | 85.3 | 110 | 83.5 | 113 | 85.3 | 110 | 85.3 | 110 | 83.5 | 113 |
| 444.namd | 510 | 15.7 | 510 | 15.7 | 510 | 15.7 | 503 | 16.0 | 502 | 16.0 | 502 | 16.0 |
| 447.dealII | 322 | 35.5 | 323 | 35.5 | 323 | 35.4 | 322 | 35.5 | 323 | 35.5 | 323 | 35.4 |
| 450.soplex | 267 | 31.2 | 268 | 31.1 | 269 | 31.0 | 267 | 31.2 | 268 | 31.1 | 269 | 31.0 |
| 453.povray | 182 | 29.3 | 183 | 29.1 | 183 | 29.0 | 154 | 34.6 | 153 | 34.8 | 154 | 34.5 |
| 454.calculix | 316 | 26.1 | 313 | 26.3 | 315 | 26.2 | 289 | 28.5 | 288 | 28.6 | 290 | 28.4 |
| 459.GemsFDTD | 109 | 97.4 | 109 | 97.4 | 109 | 97.6 | 93.6 | 113 | 93.4 | 114 | 93.4 | 114 |
| 465.tonto | 433 | 22.7 | 392 | 25.1 | 437 | 22.5 | 335 | 29.4 | 335 | 29.4 | 335 | 29.3 |
| 470.lbm | 35.2 | 390 | 35.2 | 390 | 35.2 | 390 | 35.2 | 390 | 35.2 | 390 | 35.2 | 390 |
| 481.wrf | 229 | 48.9 | 228 | 49.0 | 228 | 49.0 | 229 | 48.9 | 228 | 49.0 | 228 | 49.0 |
| 482.sphinx3 | 425 | 45.9 | 432 | 45.2 | 430 | 45.3 | 427 | 45.7 | 425 | 45.9 | 425 | 45.9 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
CPU Power Management set to Maximum Performance Memory Frequency set to Maximum Performance Turbo Boost set to Enabled C States/C1E set to Enabled Sysinfo program /root/CPU2006-1.2/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on Blur-2P Thu Apr 19 17:59:14 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2450L 0 @ 1.80GHz 2 "physical id"s (chips) 32 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 16 physical 0: cores 0 1 2 3 4 5 6 7 physical 1: cores 0 1 2 3 4 5 6 7 cache size : 20480 KB From /proc/meminfo MemTotal: 99027032 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 2 uname -a: Linux Blur-2P 3.0.13-0.27-default #1 SMP Wed Feb 15 13:33:49 UTC 2012 (d73692b) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Apr 19 09:25 last=S SPEC is set to: /root/CPU2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext3 913G 9.1G 858G 2% / Additional information from dmidecode: (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/root/CPU2006-1.2/libs/32:/root/CPU2006-1.2/libs/64" OMP_NUM_THREADS = "16" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages disabled with: echo never > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
Fortran benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
Benchmarks using both Fortran and C:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 -ansi-alias |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -xAVX -ipo -O3 -no-prec-div -unroll2 -ansi-alias -parallel |
C++ benchmarks:
| 444.namd: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -parallel -static |
| 416.gamess: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel |
| 465.tonto: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | -xAVX -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias |
| 481.wrf: | basepeak = yes |
