| CPU2006 license: | 9019 | Test date: | May-2012 |
|---|---|---|---|
| Test sponsor: | Cisco Systems | Hardware Availability: | Jun-2012 |
| Tested by: | Cisco Systems | Software Availability: | Dec-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2620 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.50 GHz |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC, running at 1333 MHz and CL7) |
| Disk Subsystem: | 1 X 300 GB 10000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.3.293 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

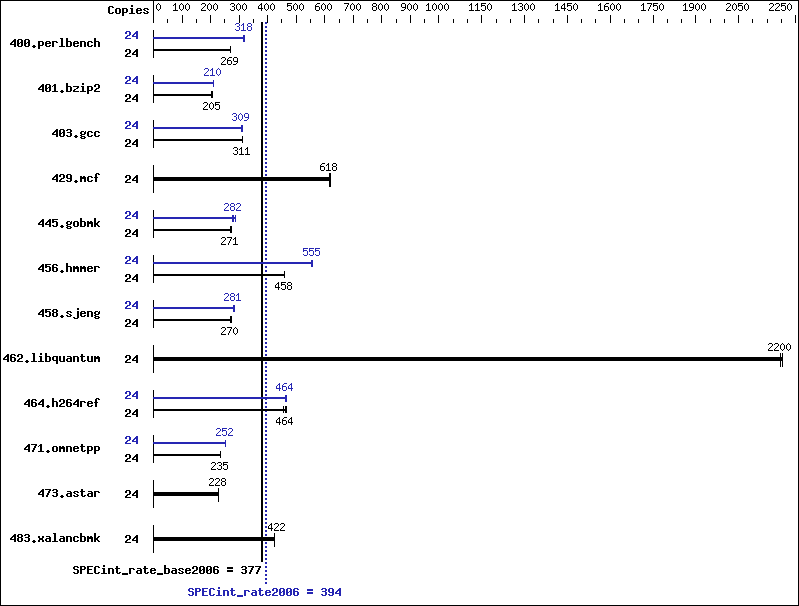

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 870 | 269 | 872 | 269 | 870 | 270 | 24 | 742 | 316 | 737 | 318 | 734 | 319 |
| 401.bzip2 | 24 | 1131 | 205 | 1128 | 205 | 1128 | 205 | 24 | 1103 | 210 | 1102 | 210 | 1101 | 210 |
| 403.gcc | 24 | 622 | 311 | 622 | 310 | 620 | 312 | 24 | 626 | 309 | 625 | 309 | 620 | 311 |
| 429.mcf | 24 | 354 | 619 | 355 | 617 | 354 | 618 | 24 | 354 | 619 | 355 | 617 | 354 | 618 |
| 445.gobmk | 24 | 933 | 270 | 928 | 271 | 920 | 274 | 24 | 908 | 277 | 893 | 282 | 881 | 286 |
| 456.hmmer | 24 | 488 | 459 | 489 | 458 | 489 | 457 | 24 | 403 | 556 | 404 | 554 | 403 | 555 |
| 458.sjeng | 24 | 1074 | 270 | 1074 | 270 | 1067 | 272 | 24 | 1025 | 283 | 1034 | 281 | 1034 | 281 |
| 462.libquantum | 24 | 226 | 2200 | 226 | 2200 | 226 | 2200 | 24 | 226 | 2200 | 226 | 2200 | 226 | 2200 |
| 464.h264ref | 24 | 1168 | 455 | 1145 | 464 | 1137 | 467 | 24 | 1148 | 463 | 1145 | 464 | 1143 | 465 |
| 471.omnetpp | 24 | 638 | 235 | 638 | 235 | 638 | 235 | 24 | 595 | 252 | 595 | 252 | 595 | 252 |
| 473.astar | 24 | 741 | 228 | 736 | 229 | 739 | 228 | 24 | 741 | 228 | 736 | 229 | 739 | 228 |
| 483.xalancbmk | 24 | 392 | 423 | 392 | 422 | 392 | 422 | 24 | 392 | 423 | 392 | 422 | 392 | 422 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS Configuration: Processor C6 Report set to Disabled Processor C1E set to Disabled CPU Performance set to HPC LV DDR Mode set to Performance-mode Sysinfo program /opt/cpu2006-1.2/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on localhost.localdomain Wed May 9 21:20:08 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2620 0 @ 2.00GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 3 4 5 physical 1: cores 0 1 2 3 4 5 cache size : 15360 KB From /proc/meminfo MemTotal: 132100944 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.2 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux localhost.localdomain 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 May 9 21:16 SPEC is set to: /opt/cpu2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext4 275G 8.0G 253G 4% / Additional information from dmidecode: Memory: 16x 0xCE00 M393B1K70DH0-YK0 8 GB 1600 MHz 1 rank (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/opt/cpu2006-1.2/libs/32:/opt/cpu2006-1.2/libs/64" Intel HT Technology = enable Binaries compiled on a system with 2 X Intel Xeon E5-2690 CPU + 128 GB memory using RHEL 6.2 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
