SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Tyan (Test Sponsor: Advanced Micro Devices)

Tyan YR190-B8228,
AMD Opteron 4230 HE

SPECfp®2006 = 44.4

CPU2006 license: 49 Test date: Apr-2012
Test sponsor: Advanced Micro Devices Hardware Availability: Jun-2012
Tested by: Advanced Micro Devices Software Availability: Jul-2011

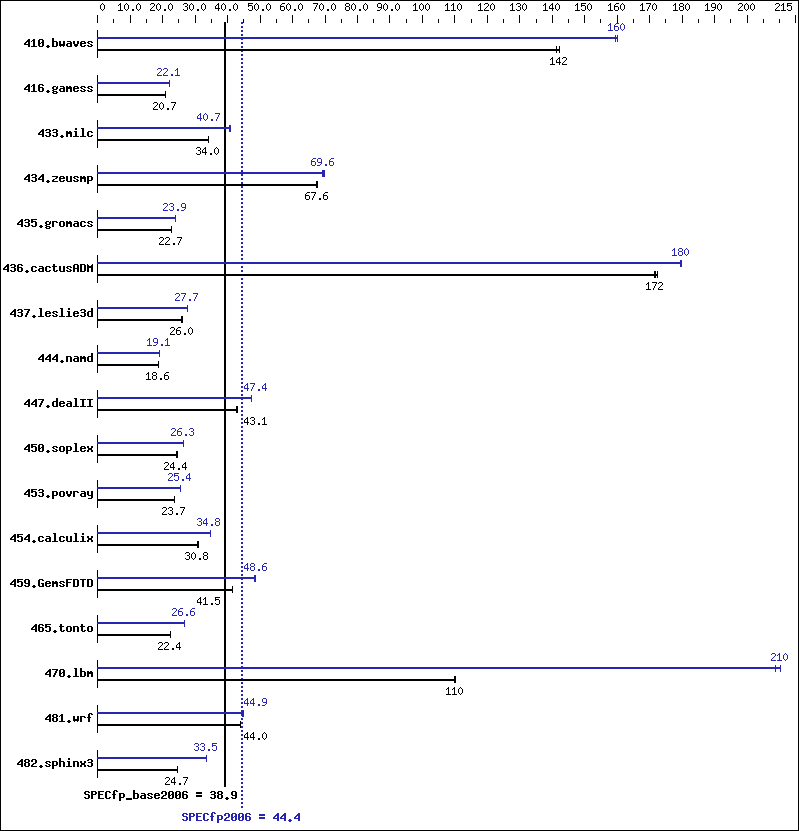

Benchmark results graph
Hardware
CPU Name: AMD Opteron 4230 HE
CPU Characteristics: AMD Turbo CORE technology up to 3.90 GHz
CPU MHz: 2900
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 192 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (4 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 1 x 128 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.1,
Kernel 2.6.32-131.0.15.el6.x86_64
Compiler: C/C++/Fortran: Version 4.2.5.2 of x86 Open64
Compiler Suite (from AMD)
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 95.6 142   96.1 141   95.6 142   84.9 160   85.3 159   84.9 160
416.gamess 945   20.7 945   20.7 944   20.7 886   22.1 886   22.1 886   22.1
433.milc 270   34.0 270   34.0 270   34.0 225   40.8 226   40.6 225   40.7
434.zeusmp 134   67.8 135   67.5 135   67.6 130   69.8 131   69.6 131   69.4
435.gromacs 314   22.7 314   22.7 313   22.8 299   23.9 299   23.9 299   23.9
436.cactusADM 69.3 172   69.7 171   69.6 172   66.6 180   66.5 180   66.5 180
437.leslie3d 361   26.0 362   26.0 362   25.9 340   27.7 340   27.7 339   27.7
444.namd 431   18.6 431   18.6 431   18.6 420   19.1 420   19.1 420   19.1
447.dealII 265   43.2 267   42.9 265   43.1 241   47.4 241   47.5 241   47.4
450.soplex 342   24.4 343   24.3 341   24.5 317   26.3 317   26.3 317   26.3
453.povray 224   23.7 225   23.7 224   23.7 210   25.4 210   25.4 210   25.4
454.calculix 267   30.9 268   30.8 268   30.8 237   34.8 237   34.8 237   34.8
459.GemsFDTD 256   41.5 256   41.5 256   41.4 218   48.6 218   48.6 219   48.4
465.tonto 440   22.4 439   22.4 442   22.3 370   26.6 370   26.6 370   26.6
470.lbm 125   110   125   110   125   110   65.3 210   65.8 209   65.3 210
481.wrf 254   44.1 254   43.9 254   44.0 251   44.5 248   45.0 249   44.9
482.sphinx3 790   24.7 790   24.7 790   24.7 582   33.5 582   33.5 582   33.5

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst
Set kernel/randomize_va_space=0 in /etc/sysctl.conf
cpuspeed stop was used to set the CPU frequency to its maximum.

Set vm/nr_hugepages=2000 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "2000"
LD_LIBRARY_PATH = "/root/work/cpu2006v1.2/amd1104-speed-libs-revA/32:/root/work/cpu2006v1.2/amd1104-speed-libs-revA/64"
O64_OMP_AFFINITY_MAP = "0,1,2,3,4,5,6,7,8,9,10,11"
O64_OMP_SPIN_COUNT = "800000"
O64_OMP_SPIN_USER_LOCK = "true"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6220 chips + 64GB Memory using RHEL 6.1

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -march=bdver1   -Ofast   -HP:bdt=2m:heap=2m   -apo   -mso   -OPT:alias=restricted   -OPT:malloc_alg=2   -LNO:parallel_overhead=10000

C++ benchmarks:

 -march=bdver1   -Ofast   -static   -CG:load_exe=0   -CG:p2align=0   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m   -D__OPEN64_FAST_SET

Fortran benchmarks:

 -march=bdver1   -Ofast   -LNO:blocking=off   -LNO:fusion_peeling_limit=0   -LNO:parallel_overhead=10000   -OPT:rsqrt=2   -OPT:unroll_size=256   -HP:bdt=2m:heap=2m   -apo

Benchmarks using both Fortran and C:

 -march=bdver1   -Ofast   -HP:bdt=2m:heap=2m   -apo   -mso   -OPT:alias=restricted   -OPT:malloc_alg=2   -LNO:parallel_overhead=10000   -LNO:blocking=off   -LNO:fusion_peeling_limit=0   -OPT:rsqrt=2   -OPT:unroll_size=256

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -march=bdver1   -Ofast   -CG:movnti=1   -CG:locs_best=on   -HP:bdt=2m:heap=2m   -IPA:plimit=7000   -IPA:callee_limit=1200   -OPT:struct_array_copy=2   -OPT:alias=field_sensitive
470.lbm:  -march=bdver1   -Ofast   -mso   -apo   -CG:sse_cse_regs=0   -LNO:prefetch_ahead=4   -CG:locs_shallow_depth=1   -CG:cmp_peep=on   -CG:compute_to=on   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -OPT:alias=restricted   -m3dnow   -IPA:inline=off
482.sphinx3:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:loop_model_simd=on   -LNO:simd_rm_unity_remainder=on   -OPT:malloc_alg=2   -CG:cmp_peep=on   -CG:local_sched_alg=2   -CG:use_incdec=off   -INLINE:aggressive=on   -WOPT:sib=on   -HP

C++ benchmarks:

444.namd:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:ignore_feedback=off   -CG:local_sched_alg=2   -CG:load_exe=0   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m
447.dealII:  -march=bdver1   -Ofast   -LNO:simd=0   -D__OPEN64_FAST_SET   -static   -INLINE:aggressive=on   -OPT:alias=disjoint   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m
450.soplex:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -INLINE:aggressive=on   -OPT:RO=1   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -fno-exceptions   -CG:p2align=0   -m32   -HP:bdt=2m:heap=2m   -WOPT:sib=on
453.povray:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:pre_local_sched=off   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m   -OPT:transform=2   -OPT:alias=disjoint   -WOPT:aggcm=0

Fortran benchmarks:

410.bwaves:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -apo   -OPT:Ofast   -OPT:treeheight=on   -LNO:blocking=off   -LNO:prefetch=2   -LNO:pf2=0   -LNO:prefetch_ahead=3   -LNO:ignore_feedback=off   -LNO:fu=4   -LNO:loop_model_simd=on   -LNO:simd_rm_unity_remainder=on   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -CG:cmp_peep=on   -CG:p2align=0
416.gamess:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:fu=6   -LNO:blocking=0   -LNO:simd=0   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256   -OPT:unroll_times_max=2   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m   -WOPT:sib=on
434.zeusmp:  -march=bdver1   -Ofast   -apo   -LNO:blocking=off   -LNO:interchange=off   -LNO:fusion_peeling_limit=0   -OPT:treeheight=on   -OPT:unroll_size=256   -CG:cmp_peep=on   -CG:compute_to=on   -GRA:prioritize_by_density=on   -HP:bdt=2m:heap=2m
437.leslie3d:  -march=bdver1   -Ofast   -LNO:prefetch=2   -LNO:blocking=off   -CG:interior_ptrs=on   -OPT:unroll_size=256   -GRA:prioritize_by_density=on   -HP:bdt=2m:heap=2m
459.GemsFDTD:  -march=bdver1   -Ofast   -OPT:unroll_size=0   -LNO:fission=2   -CG:load_exe=0   -CG:local_sched_alg=2   -HP   -apo
465.tonto:  -march=bdver1   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -CG:local_sched_alg=1   -IPA:plimit=525   -HP

Benchmarks using both Fortran and C:

435.gromacs:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m
436.cactusADM:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off   -LNO:prefetch=2   -HP:bdt=2m:heap=2m   -CG:locs_shallow_depth=1   -CG:load_exe=0   -WOPT:sib=on   -apo
454.calculix:  -march=bdver1   -Ofast   -OPT:unroll_size=256   -GRA:optimize_boundary=on   -HP:bdt=2m:heap=2m
481.wrf:  -march=bdver1   -Ofast   -OPT:unroll_size=256   -LNO:blocking=off   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -CG:load_exe=1   -HP   -WOPT:sib=on   -apo

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-speed-revA-I.html,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA-I.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-speed-revA-I.xml,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA-I.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Thu Jul 24 04:32:22 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 6 June 2012.
