SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Tyan (Test Sponsor: Advanced Micro Devices)

Tyan YR190-B8228
AMD Opteron 4230 HE

CPU2006 license: 49 Test date: Mar-2012
Test sponsor: Advanced Micro Devices Hardware Availability: Jun-2012
Tested by: Advanced Micro Devices Software Availability: Jul-2011

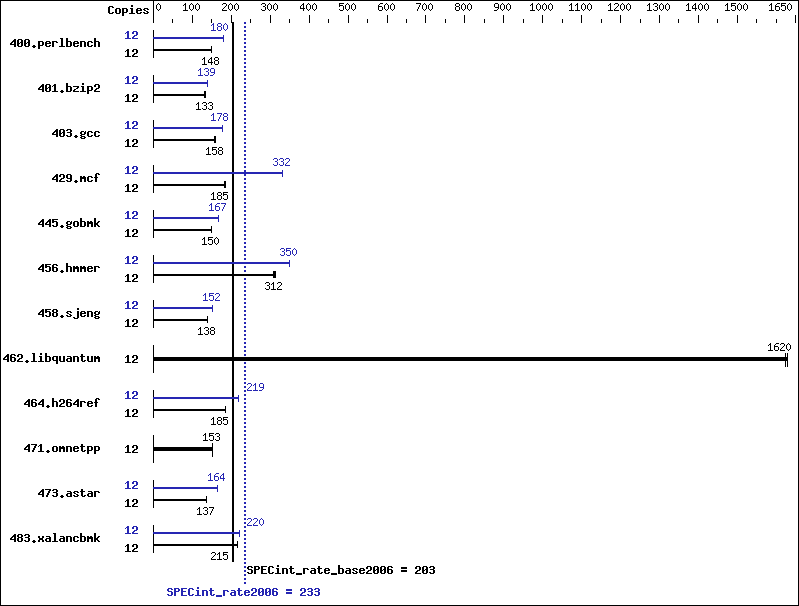

Benchmark results graph
Hardware
CPU Name: AMD Opteron 4230 HE
CPU Characteristics: AMD Turbo CORE technology up to 3.70 GHz
CPU MHz: 2900
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 192 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (4 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 1 x 128 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.1,
Kernel 2.6.32-131.0.15.el6.x86_64
Compiler: C/C++: Version 4.5.1 of x86 Open64 Compiler Suite
(from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 10.0 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 12 791 148 791 148 791 148 12 650 180 651 180 650 180
401.bzip2 12 873 133 873 133 885 131 12 832 139 827 140 834 139
403.gcc 12 620 156 610 158 608 159 12 543 178 541 178 543 178
429.mcf 12 593 185 600 182 591 185 12 330 332 330 331 330 332
445.gobmk 12 842 150 842 150 842 150 12 749 168 755 167 755 167
456.hmmer 12 359 312 362 310 358 313 12 320 350 320 350 320 350
458.sjeng 12 1054 138 1051 138 1044 139 12 954 152 955 152 955 152
462.libquantum 12 153 1620 153 1620 153 1630 12 153 1620 153 1620 153 1630
464.h264ref 12 1435 185 1437 185 1436 185 12 1213 219 1216 218 1214 219
471.omnetpp 12 492 153 492 153 492 152 12 492 153 492 153 492 152
473.astar 12 616 137 616 137 616 137 12 515 164 515 164 514 164
483.xalancbmk 12 385 215 385 215 385 215 12 377 220 377 220 376 220

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Transparent huge pages were enabled for this run (OS default)

Huge pages were not configured for this run.

Set kernel/randomize_va_space=0 in /etc/sysctl.conf

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/root/work/cpu2006v1.2/amd1104-rate-libs-revC/32:/root/work/cpu2006v1.2/amd1104-rate-libs-revC/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6274 chips + 64GB Memory using RHEL 6.1

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -march=bdver1   -Ofast   -CG:local_sched_alg=1   -INLINE:aggressive=ON   -IPA:plimit=8000   -IPA:small_pu=100   -HP:bd=2m:heap=2m   -mso   -LNO:prefetch=2

C++ benchmarks:

 -march=bdver1   -Ofast   -m32   -INLINE:aggressive=on   -CG:cmp_peep=on   -D__OPEN64_FAST_SET   -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:prefetch=2   -LNO:opt=0   -IPA:plimit=20000   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -WOPT:if_conv=0   -WOPT:sib=on   -CG:local_sched_alg=1   -CG:unroll_fb_req=on   -CG:movext_icmp=off   -HP:bd=2m:heap=2m
401.bzip2:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch=2   -LNO:pf2=0   -OPT:alias=disjoint   -OPT:goto=off   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m
403.gcc:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:trip_count=256   -CG:cmp_peep=on   -CG:pre_minreg_level=2   -m32   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -IPA:small_pu=200   -WOPT:sib=on
429.mcf:  -march=bdver1   -O3   -OPT:unroll_times_max=5   -ipa   -INLINE:aggressive=on   -CG:gcm=off   -CG:dsched=on   -GRA:prioritize_by_density=on   -m32   -HP:bdt=2m:heap=2m   -mso
445.gobmk:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:unroll_size=256   -OPT:unroll_times_max=8   -OPT:keep_ext=on   -IPA:plimit=750   -IPA:min_hotness=300   -IPA:pu_reorder=1   -LNO:ignore_feedback=off   -WOPT:if_conv=2   -HP:bd=2m:heap=2m
456.hmmer:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:prefetch=2   -OPT:alias=disjoint   -OPT:unroll_times_max=16   -OPT:unroll_size=512   -OPT:unroll_level=2   -OPT:keep_ext=on   -CG:cflow=0   -CG:cmp_peep=on   -CG:pre_local_sched=off   -HP:bdt=2m:heap=2m
458.sjeng:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:ptr_load_use=0   -CG:divrem_opt=on   -CG:movext_icmp=off   -CG:locs_best=on   -LNO:full_unroll=10   -IPA:pu_reorder=2   -HP:heap=2m:bd=2m   -WOPT:sib=on
462.libquantum:  basepeak = yes
464.h264ref:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:unroll_size=256   -OPT:unroll_times_max=2   -IPA:plimit=20000   -OPT:alias=disjoint   -CG:ptr_load_use=0   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -TENV:frame_pointer=off   -WOPT:if_conv=0   -WOPT:sib=on   -CG:divrem_opt=on   -CG:p2align=1   -CG:dsched=on   -GRA:optimize_boundary=on   -OPT:alias=disjoint   -INLINE:aggressive=on   -IPA:small_pu=3000   -IPA:plimit=3000   -m32   -HP:bdt=2m:heap=2m
483.xalancbmk:  -march=bdver1   -Ofast   -LNO:prefetch=2   -OPT:unroll_size=512   -OPT:unroll_times_max=8   -D__OPEN64_FAST_SET   -INLINE:aggressive=on   -m32   -CG:cmp_peep=on   -CG:local_sched=off   -CG:p2align=1   -GRA:unspill=on   -TENV:frame_pointer=off   -fno-emit-exceptions   -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-451-flags-rate-revC-I.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/x86-open64-451-flags-rate-revC-I.xml.
