CPU2006 license: | 9008 | Test date: | Apr-2012 |
---|---|---|---|
Test sponsor: | ACTION S.A. | Hardware Availability: | Mar-2012 |
Tested by: | ACTION S.A. | Software Availability: | Oct-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2640 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.0 GHz |
CPU MHz: | 2500 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 15 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
Disk Subsystem: | 1 x 2 TB 7200 RPM SATA |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 SP2 (x86_64) 3.0.13-0.27-default |
Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux; Fortran: Version 12.1.0.225 of Intel Fortran Studio XE for Linux |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

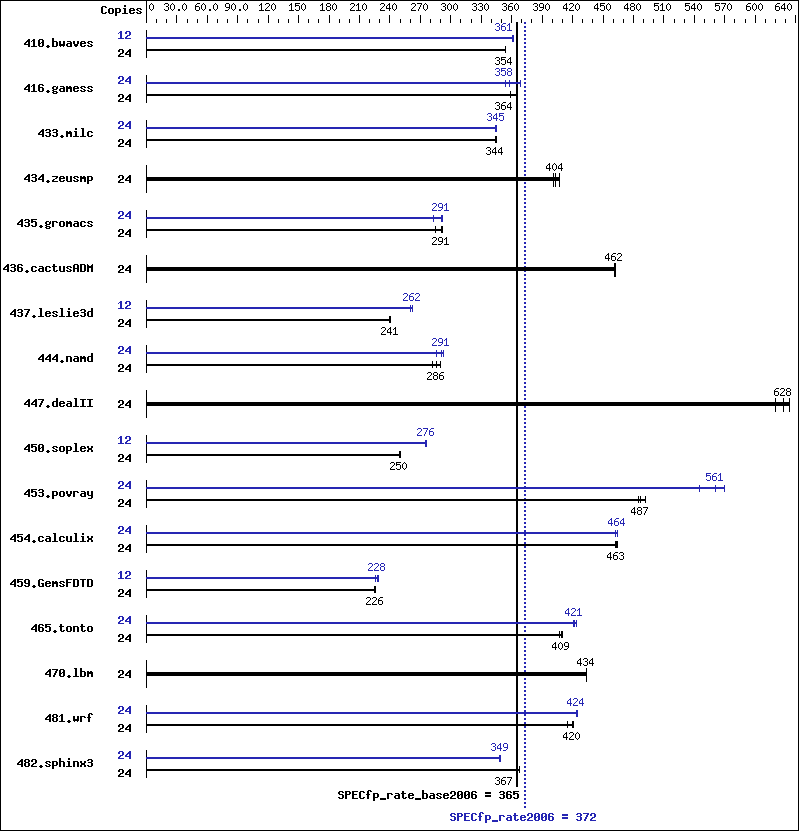

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 24 | 922 | 354 | 921 | 354 | 922 | 354 | 12 | 452 | 361 | 452 | 361 | 451 | 361 |
416.gamess | 24 | 1287 | 365 | 1310 | 359 | 1290 | 364 | 24 | 1313 | 358 | 1328 | 354 | 1274 | 369 |
433.milc | 24 | 641 | 344 | 639 | 345 | 640 | 344 | 24 | 639 | 345 | 639 | 345 | 640 | 344 |
434.zeusmp | 24 | 541 | 404 | 544 | 402 | 536 | 407 | 24 | 541 | 404 | 544 | 402 | 536 | 407 |
435.gromacs | 24 | 587 | 292 | 602 | 285 | 589 | 291 | 24 | 587 | 292 | 590 | 291 | 605 | 283 |
436.cactusADM | 24 | 622 | 461 | 621 | 462 | 621 | 462 | 24 | 622 | 461 | 621 | 462 | 621 | 462 |
437.leslie3d | 24 | 937 | 241 | 940 | 240 | 937 | 241 | 12 | 431 | 262 | 431 | 262 | 433 | 260 |
444.namd | 24 | 665 | 290 | 674 | 286 | 683 | 282 | 24 | 662 | 291 | 658 | 292 | 674 | 286 |
447.dealII | 24 | 433 | 634 | 437 | 628 | 443 | 620 | 24 | 433 | 634 | 437 | 628 | 443 | 620 |
450.soplex | 24 | 802 | 250 | 801 | 250 | 802 | 250 | 12 | 364 | 275 | 363 | 276 | 363 | 276 |
453.povray | 24 | 260 | 491 | 263 | 485 | 262 | 487 | 24 | 228 | 561 | 224 | 569 | 234 | 545 |
454.calculix | 24 | 427 | 464 | 428 | 462 | 427 | 463 | 24 | 427 | 464 | 428 | 463 | 427 | 464 |
459.GemsFDTD | 24 | 1129 | 226 | 1128 | 226 | 1133 | 225 | 12 | 564 | 226 | 558 | 228 | 558 | 228 |
465.tonto | 24 | 576 | 410 | 577 | 409 | 580 | 407 | 24 | 557 | 424 | 560 | 421 | 560 | 421 |
470.lbm | 24 | 760 | 434 | 760 | 434 | 760 | 434 | 24 | 760 | 434 | 760 | 434 | 760 | 434 |
481.wrf | 24 | 638 | 420 | 637 | 421 | 646 | 415 | 24 | 632 | 424 | 632 | 424 | 632 | 424 |
482.sphinx3 | 24 | 1273 | 367 | 1272 | 368 | 1274 | 367 | 24 | 1342 | 349 | 1345 | 348 | 1341 | 349 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
Sysinfo program /cpu2006.1.2/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on linux-j9so Wed Apr 11 05:08:22 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2640 0 @ 2.50GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 3 4 5 physical 1: cores 0 1 2 3 4 5 cache size : 15360 KB From /proc/meminfo MemTotal: 132117016 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 2 uname -a: Linux linux-j9so 3.0.13-0.9-default #1 SMP Mon Jan 16 17:33:03 UTC 2012 (54ddfaf) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Apr 10 16:26 last=S SPEC is set to: /cpu2006.1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext3 1.8T 51G 1.8T 3% / Additional information from dmidecode: (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/cpu2006.1.2/libs/32:/cpu2006.1.2/libs/64" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xAVX -ipo -O3 -no-prec-div -static -opt-prefetch -auto-p32 -ansi-alias |
-xAVX -ipo -O3 -no-prec-div -static -opt-prefetch -auto-p32 -ansi-alias |
-xAVX -ipo -O3 -no-prec-div -static -opt-prefetch |
-xAVX -ipo -O3 -no-prec-div -static -opt-prefetch -auto-p32 -ansi-alias |
icc -m64 | |
482.sphinx3: | icc -m32 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 |
470.lbm: | basepeak = yes |
482.sphinx3: | -xAVX -ipo -O3 -no-prec-div -unroll2 |
444.namd: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static |
416.gamess: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xAVX -ipo -O3 -no-prec-div -static -opt-prefetch |
459.GemsFDTD: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
465.tonto: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
435.gromacs: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -static -auto-ilp32 |
436.cactusADM: | basepeak = yes |
454.calculix: | -xAVX -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | Same as 454.calculix |
