SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

MSI (Test Sponsor: Advanced Micro Devices)

MS-S0231,
AMD Opteron 3280

CPU2006 license: 49 Test date: Mar-2012
Test sponsor: Advanced Micro Devices Hardware Availability: Mar-2012
Tested by: Advanced Micro Devices Software Availability: Dec-2011

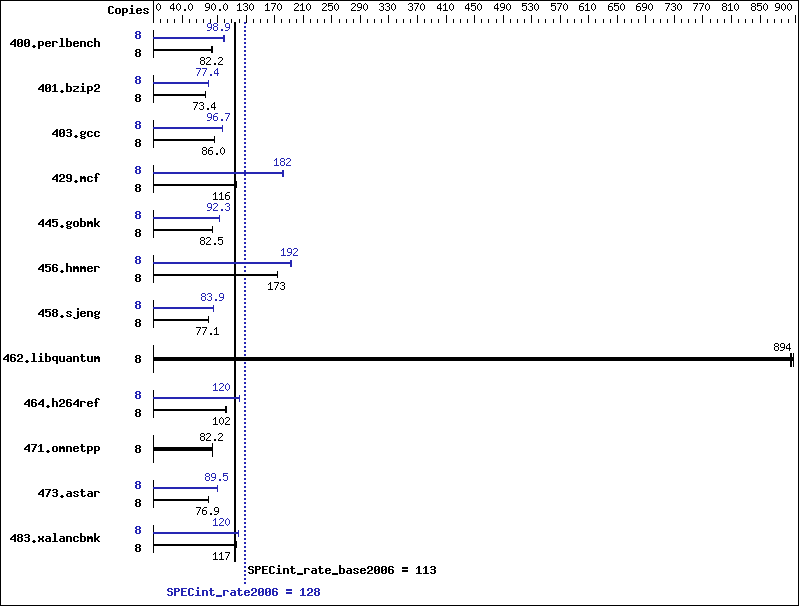

Benchmark results graph
Hardware
CPU Name: AMD Opteron 3280
CPU Characteristics: AMD Turbo CORE technology up to 3.40 GHz
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 8 cores, 1 chip, 8 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 256 KB I on chip per chip,
64 KB shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8 x 8 GB 2Rx4 PC3-12800U-11, running at
1333MHz)
Disk Subsystem: 1 x 500 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.2,
Kernel 2.6.32-220.el6.x86_64
Compiler: C/C++: Version 4.5.1 of x86 Open64 Compiler Suite
(from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 10.0 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 954 81.9 951 82.2 949 82.3 8 792 98.7 791 98.9 790 98.9
401.bzip2 8 1051 73.4 1052 73.4 1062 72.7 8 1004 76.9 995 77.6 998 77.4
403.gcc 8 749 86.0 750 85.8 748 86.1 8 666 96.7 670 96.2 666 96.8
429.mcf 8 627 116   631 116   629 116   8 404 181   401 182   402 182
445.gobmk 8 1017 82.5 1017 82.5 1018 82.4 8 910 92.3 905 92.8 911 92.2
456.hmmer 8 431 173   430 174   431 173   8 388 192   387 193   388 192
458.sjeng 8 1256 77.1 1258 76.9 1256 77.1 8 1154 83.9 1153 83.9 1152 84.0
462.libquantum 8 185 894   185 897   186 893   8 185 894   185 897   186 893
464.h264ref 8 1743 102   1742 102   1733 102   8 1471 120   1471 120   1472 120
471.omnetpp 8 608 82.2 608 82.2 606 82.5 8 608 82.2 608 82.2 606 82.5
473.astar 8 730 76.9 729 77.0 730 76.9 8 630 89.1 626 89.7 627 89.5
483.xalancbmk 8 472 117   473 117   473 117   8 461 120   461 120   462 120

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst

Set vm/nr_hugepages=3840 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "480"
LD_LIBRARY_PATH = "/root/work/cpu2006v1.2/amd1104-rate-libs-revC/32:/root/work/cpu2006v1.2/amd1104-rate-libs-revC/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6274 chips + 64GB Memory using RHEL 6.1

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -march=bdver1   -Ofast   -CG:local_sched_alg=1   -INLINE:aggressive=ON   -IPA:plimit=8000   -IPA:small_pu=100   -HP:bd=2m:heap=2m   -mso   -LNO:prefetch=2

C++ benchmarks:

 -march=bdver1   -Ofast   -m32   -INLINE:aggressive=on   -CG:cmp_peep=on   -D__OPEN64_FAST_SET   -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:prefetch=2   -LNO:opt=0   -IPA:plimit=20000   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -WOPT:if_conv=0   -WOPT:sib=on   -CG:local_sched_alg=1   -CG:unroll_fb_req=on   -CG:movext_icmp=off   -HP:bd=2m:heap=2m
401.bzip2:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch=2   -LNO:pf2=0   -OPT:alias=disjoint   -OPT:goto=off   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m
403.gcc:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:trip_count=256   -CG:cmp_peep=on   -CG:pre_minreg_level=2   -m32   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -IPA:small_pu=200   -WOPT:sib=on
429.mcf:  -march=bdver1   -O3   -OPT:unroll_times_max=5   -ipa   -INLINE:aggressive=on   -CG:gcm=off   -CG:dsched=on   -GRA:prioritize_by_density=on   -m32   -HP:bdt=2m:heap=2m   -mso
445.gobmk:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:unroll_size=256   -OPT:unroll_times_max=8   -OPT:keep_ext=on   -IPA:plimit=750   -IPA:min_hotness=300   -IPA:pu_reorder=1   -LNO:ignore_feedback=off   -WOPT:if_conv=2   -HP:bd=2m:heap=2m
456.hmmer:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:prefetch=2   -OPT:alias=disjoint   -OPT:unroll_times_max=16   -OPT:unroll_size=512   -OPT:unroll_level=2   -OPT:keep_ext=on   -CG:cflow=0   -CG:cmp_peep=on   -CG:pre_local_sched=off   -HP:bdt=2m:heap=2m
458.sjeng:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:ptr_load_use=0   -CG:divrem_opt=on   -CG:movext_icmp=off   -CG:locs_best=on   -LNO:full_unroll=10   -IPA:pu_reorder=2   -HP:heap=2m:bd=2m   -WOPT:sib=on
462.libquantum:  basepeak = yes
464.h264ref:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:unroll_size=256   -OPT:unroll_times_max=2   -IPA:plimit=20000   -OPT:alias=disjoint   -CG:ptr_load_use=0   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -TENV:frame_pointer=off   -WOPT:if_conv=0   -WOPT:sib=on   -CG:divrem_opt=on   -CG:p2align=1   -CG:dsched=on   -GRA:optimize_boundary=on   -OPT:alias=disjoint   -INLINE:aggressive=on   -IPA:small_pu=3000   -IPA:plimit=3000   -m32   -HP:bdt=2m:heap=2m
483.xalancbmk:  -march=bdver1   -Ofast   -LNO:prefetch=2   -OPT:unroll_size=512   -OPT:unroll_times_max=8   -D__OPEN64_FAST_SET   -INLINE:aggressive=on   -m32   -CG:cmp_peep=on   -CG:local_sched=off   -CG:p2align=1   -GRA:unspill=on   -TENV:frame_pointer=off   -fno-emit-exceptions   -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-451-flags-rate-revC-I.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/x86-open64-451-flags-rate-revC-I.xml.
