CPU2006 license: | 3 | Test date: | Mar-2012 |
---|---|---|---|
Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Feb-2011 |
Tested by: | Hewlett-Packard Company | Software Availability: | Dec-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5675 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.46 GHz |
CPU MHz: | 3067 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
Disk Subsystem: | 2 x 300 GB 10 K SAS, RAID 1 |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.2, Kernel 2.6.32-220.el6.x86_64 |
Compiler: | C/C++: Version 12.1.0.225 of Intel Compiler XE Build 20110803 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V9.01 |

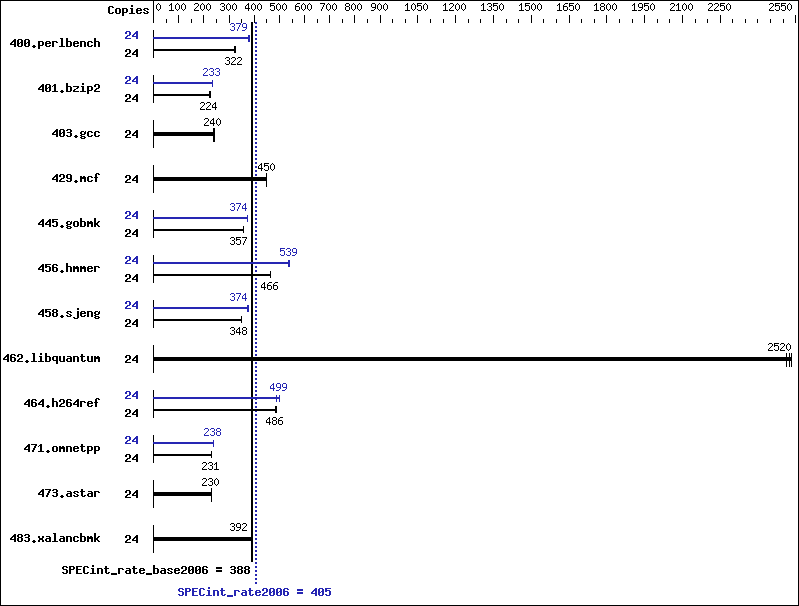

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 24 | 724 | 324 | 728 | 322 | 728 | 322 | 24 | 618 | 379 | 618 | 379 | 618 | 380 |
401.bzip2 | 24 | 1032 | 224 | 1036 | 224 | 1035 | 224 | 24 | 993 | 233 | 996 | 233 | 992 | 233 |
403.gcc | 24 | 804 | 240 | 805 | 240 | 810 | 239 | 24 | 804 | 240 | 805 | 240 | 810 | 239 |
429.mcf | 24 | 486 | 450 | 487 | 449 | 486 | 450 | 24 | 486 | 450 | 487 | 449 | 486 | 450 |
445.gobmk | 24 | 705 | 357 | 706 | 357 | 707 | 356 | 24 | 672 | 375 | 673 | 374 | 673 | 374 |
456.hmmer | 24 | 481 | 466 | 480 | 466 | 481 | 465 | 24 | 416 | 539 | 416 | 538 | 414 | 541 |
458.sjeng | 24 | 832 | 349 | 836 | 348 | 834 | 348 | 24 | 776 | 374 | 774 | 375 | 778 | 373 |
462.libquantum | 24 | 198 | 2510 | 196 | 2530 | 197 | 2520 | 24 | 198 | 2510 | 196 | 2530 | 197 | 2520 |
464.h264ref | 24 | 1092 | 486 | 1086 | 489 | 1092 | 486 | 24 | 1062 | 500 | 1065 | 499 | 1089 | 488 |
471.omnetpp | 24 | 648 | 232 | 649 | 231 | 648 | 231 | 24 | 630 | 238 | 630 | 238 | 633 | 237 |
473.astar | 24 | 732 | 230 | 735 | 229 | 733 | 230 | 24 | 732 | 230 | 735 | 229 | 733 | 230 |
483.xalancbmk | 24 | 423 | 391 | 423 | 392 | 423 | 392 | 24 | 423 | 391 | 423 | 392 | 423 | 392 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
BIOS configuration: HP Power Profile set to Maximum Performance Thermal Configuration set to Increased Cooling Data Reuse set to Disabled Sysinfo program /cpu2006/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on bl460g7-bid Thu Mar 8 16:27:46 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU X5675 @ 3.07GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 8 9 10 physical 1: cores 0 1 2 8 9 10 cache size : 12288 KB From /proc/meminfo MemTotal: 99058244 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.2 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux bl460g7-bid 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Mar 8 16:11 SPEC is set to: /cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sda3 ext3 273G 28G 232G 11% / Additional information from dmidecode: BIOS HP I27 05/05/2011 Memory: 12x Not Specified Not Specified 8 GB 1333 MHz 2 rank (End of data from sysinfo program)
Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
403.gcc: | basepeak = yes |
429.mcf: | basepeak = yes |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | basepeak = yes |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
